| Name: | Cnc Vision Measuring System | Keyword: | Cnc Vision System |
|---|---|---|---|
| Meas.Accuracy: | (1.5+L/200)um | Meas. Travel: | 300x200x200mm |
| CCD: | High Resolution 1/2'' CMOS Camera | Display Resolution: | 0.01μm Absolute Scale |
| Operation Model: | Automatic | Repeatability: | 0.002mm |

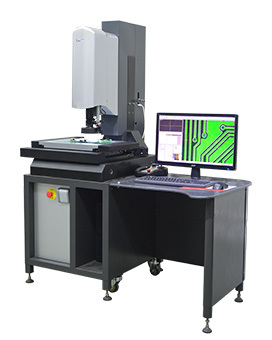

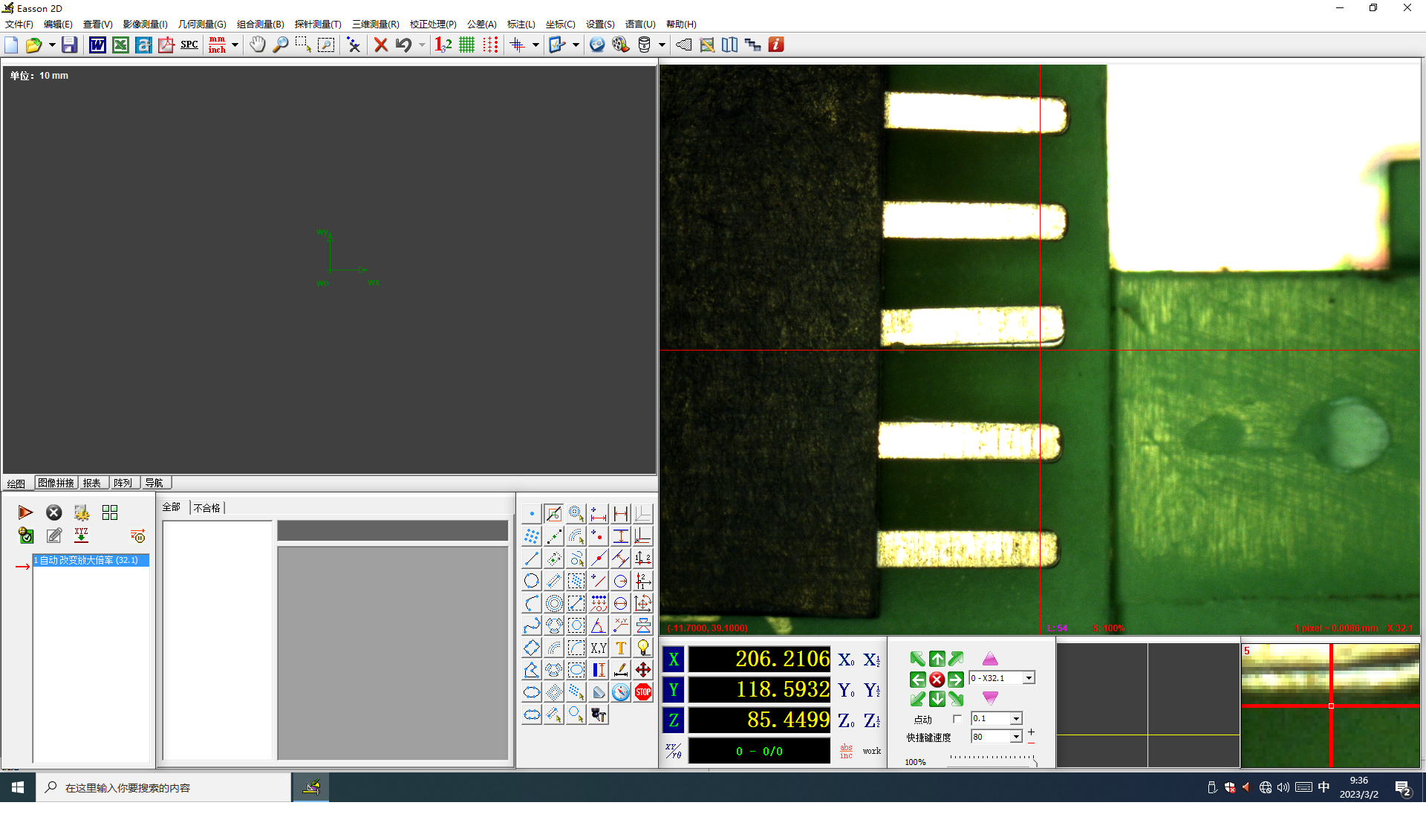

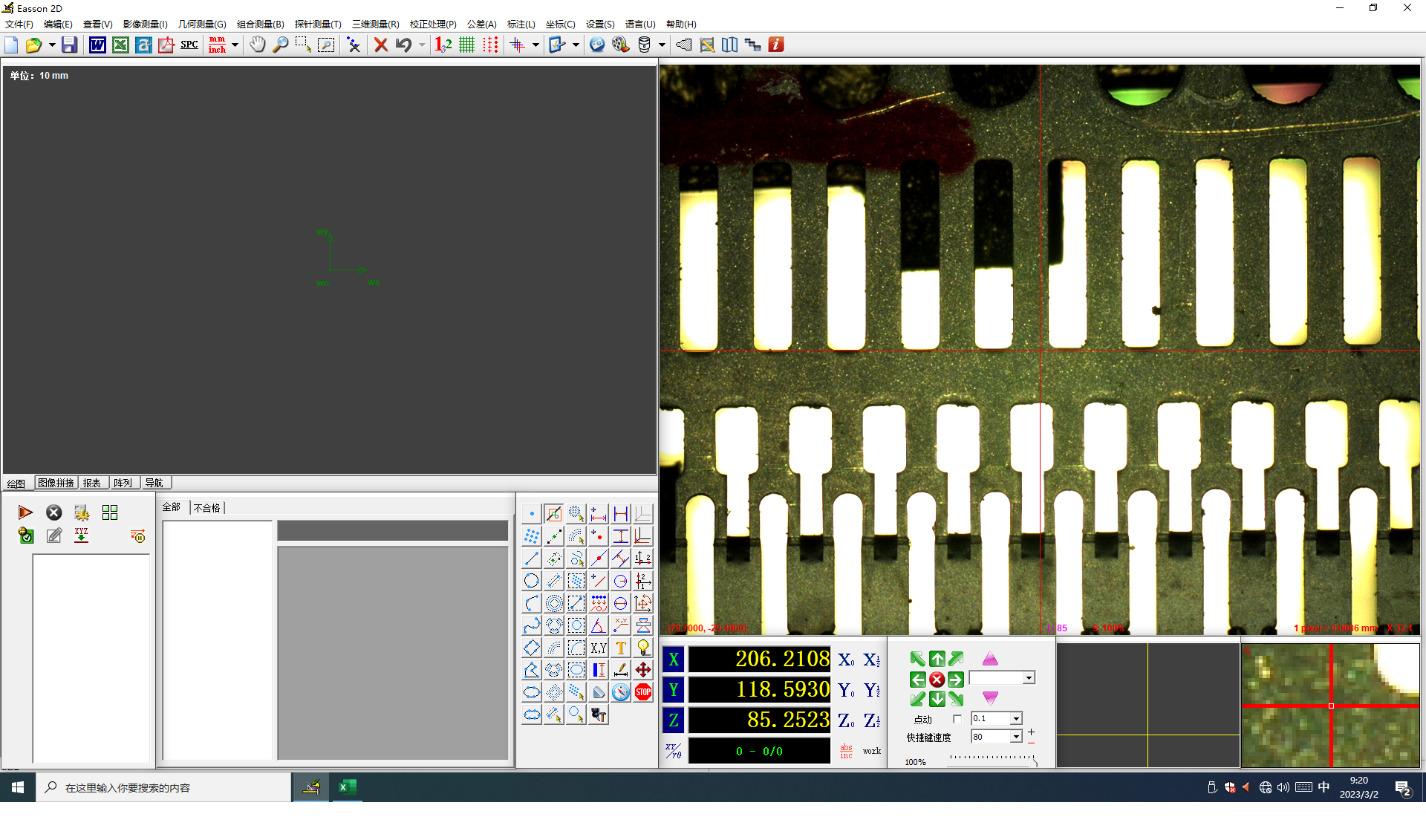

SP3020 CNC Automatic Vision Measuring Machines With 3 Axis 0.01μm Linear Encoder
Product Characterisitics
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300x200x200 | 400x300x250 | 600x500x300 |
| Overall Dimension (mm) | 1200x720x1600 | 1250x900x1600 | 1350x1000x1850 |
| Work Table Glass Size(mm) | 339x239x10 | 439x339x12 | 648x548x18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||

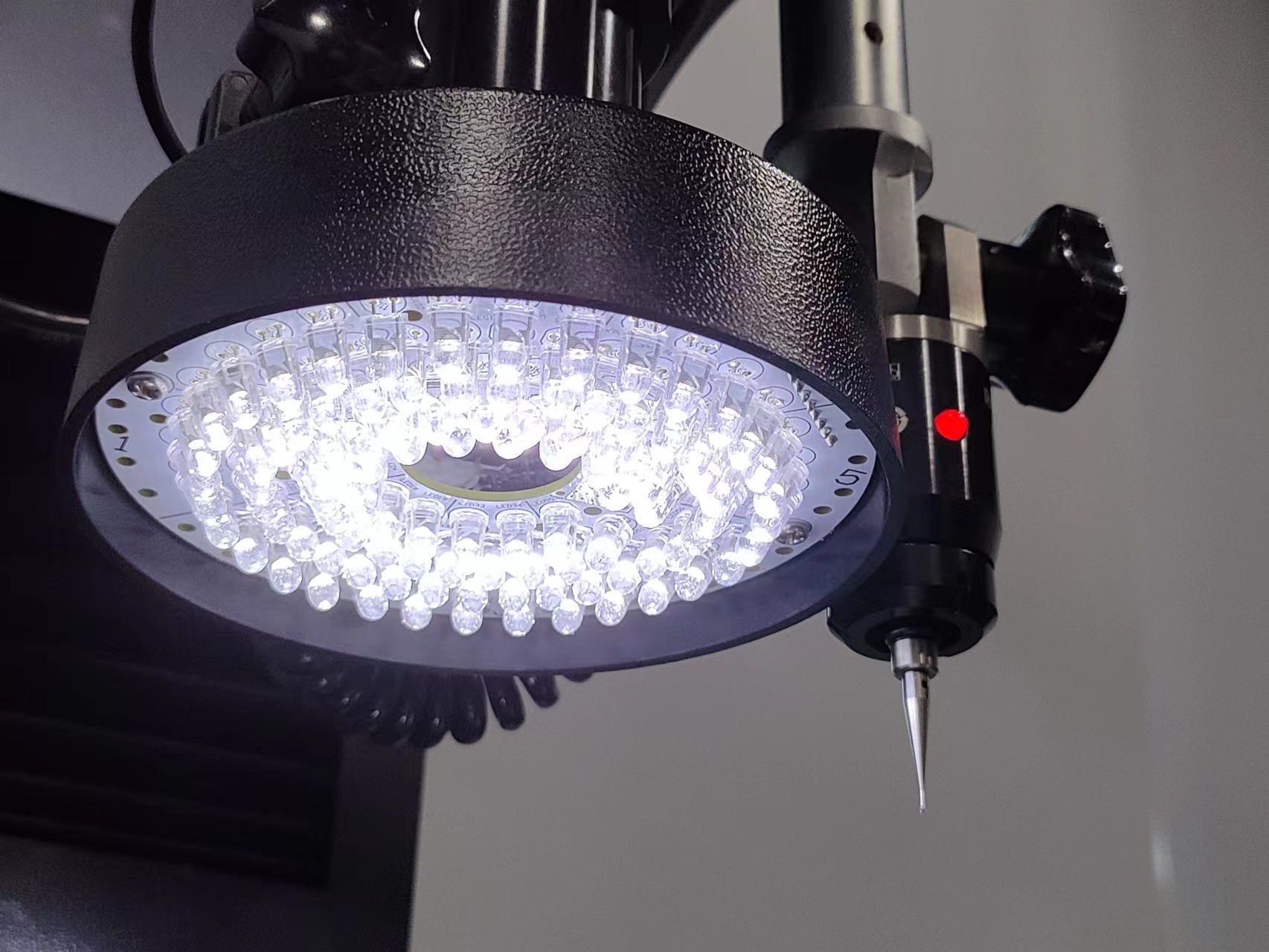

| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution 1/2'' CMOS global shutter camera | ||
F3 high precision closed loop auto zoom lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing
The three Axis of SPARTAN series adopt the AC servo motor system, enabling precise positioning of the part under inspection.
High-resolution linear encoders provide feedback on the stage's position, ensuring measurements are highly accurate and repeatable.
21 Items Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use the AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Video Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC linear encoder;
Easson have actively participated in standard committee's work, seriously work together with other pioneering companies in this industry to boost the development of this industry in China.
Easson is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
