| Name: | Cnc Measuring Equipment | Keyword: | Cnc Measuring Machine |
|---|---|---|---|
| Repeatability: | ±2μm | Meas.Accuracy: | (1.5+L/200)um |
| Meas. Travel: | 400x300x250mm | CCD: | High Resolution 1/2'' CMOS Camera |
| Resolution: | 0.01μm Absolute Scale | Operation Model: | Automatic |
SP4030 CNC Automatic Vision Measurement System With 3 Axis 0.01μm Linear Encoder
Product Introduction
Vision measuring systems is based on machine vision, such as automatic edge extraction, automatic alignment, automatic focus, measurement synthesis, image synthesis and other artificial intelligence technologies. It has the functions of automatic measurement of point where to go, automatic measurement of CNC position, and automatic learning of batch measurement. Image map target guidance, full-field eagle-eye zoom and other excellent functions.
Meanwhile, based on the auto focus process under the precise control of machine vision and micron, it can meet the needs of auxiliary measurement under clear images, and touch probe can also be added to complete coordinate measurement. Excellent software performance that supports spatial coordinate rotation, batch measurement and SPC result classification can be carried out when workpieces are randomly placed or fixtures are used.
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300x200x200 | 400x300x250 | 600x500x300 |
| Overall Dimension (mm) | 1200x720x1600 | 1250x900x1600 | 1350x1000x1850 |
| Work Table Glass Size(mm) | 339x239x10 | 439x339x12 | 648x548x18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution 1/2'' CMOS global shutter camera | ||
Characterisitics
1. X , Y , Z axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm
2. High precision closed loop auto zoom lens with coaxial light.
3.Motion controller of Vision measuring machine using the Ethernet transmission, which is efficient and reliable, can solve the disadvantage of unstable USB transmission.
4. High precision Industrial 1/2'' CMOS sensor provide the image is clear and without smearing.
5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.
6. Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
F3 high precision closed loop auto zoom lens
Combine with the high-precision, high-resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
The three Axis of SPARTAN series adopt the servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
Mechanical Space Compensation

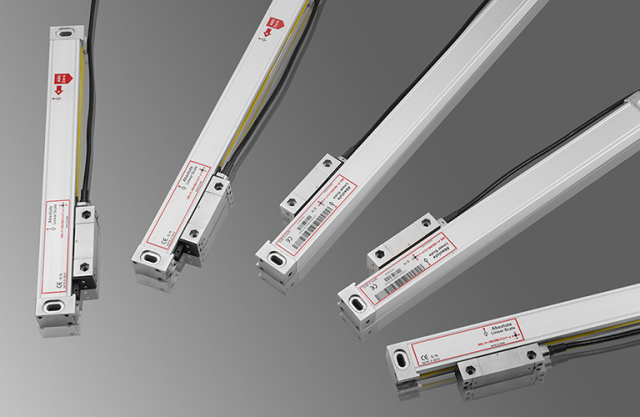

With the AR Network control System included 21 orders volumetric compensation, and Ultra-high-speed linear encoder reading, built-in EAD (absolute scale decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
Case Analysis
Thanks to the High accuracy auto zoom lend and Camera, also powerful 2D measurement software, it can recognize the image outline easily and correctly.
Coordinate Measurement
Vision measurement machine can cooperate with the UK Renishaw high precision touch probe for 2D / 3D multiple measurement. Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement, Curves measurement etc.
FAQs
Q1. Are you a factory or trading company?
Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.
Q2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
Q3. How can the machine achieve the high accuracy measurement?
a) High resolution absolute linear encoder 0.01 microm
b) F3 high precision closed loop auto zoom lens with coaxial light.
c) High resolution SONY CMOS sensor of image processor CCD
d) Built in 21 orders volumetric compensation
e) High precision marble base and pillar, to ensure high stability and accuracy
Q4. Warranty:
All the products we provide 13 months( from the date of shipment )
Q5. Technical support:
we have a professional technical support team for the after sales services system. So don't worry about the aftersale service problem.
Q6. Payment:
Default is 100% T/Tpayment before shipment, for the other payment terms, welcome to contact us.
