SP5040 VMS CNC Vision Measuring System: Precision Redefined with 0.01μm Resolution

Revolutionary Measurement Technology

The SP series VMS CNC Vision Measuring System represents the pinnacle of non-contact metrology, integrating advanced machine vision with ultra-precision motion control. Engineered for industries demanding micron-level accuracy—such as aerospace, medical device manufacturing, and precision optics—this system leverages artificial intelligence for automatic edge extraction, focus optimization, and spatial coordinate synthesis. Its 400×300×250mm measuring2μm repeatability through proprietary closed-loop technology.

Core Technological Innovations

Absolute Linear Encoder System

• 0.01μm Resolution: Independently developed 3-axis linear encoders provide industry-leading positioning resolution
• Closed-Loop Feedback: Eliminates gear backlash errors through real-time positional verification
• AS-80 Absolute Scale: 21-order volumetric compensation corrects environmental and mechanical deviations

Vision Subsystem Excellence

• F3 Auto-Zoom Lens: Optical coaxial lens with ring scale calibration ensures ±0.5% magnification accuracy
• Global Shutter CMOS: 1/2" high-resolution sensor captures distortion-free images at 125X effective magnification

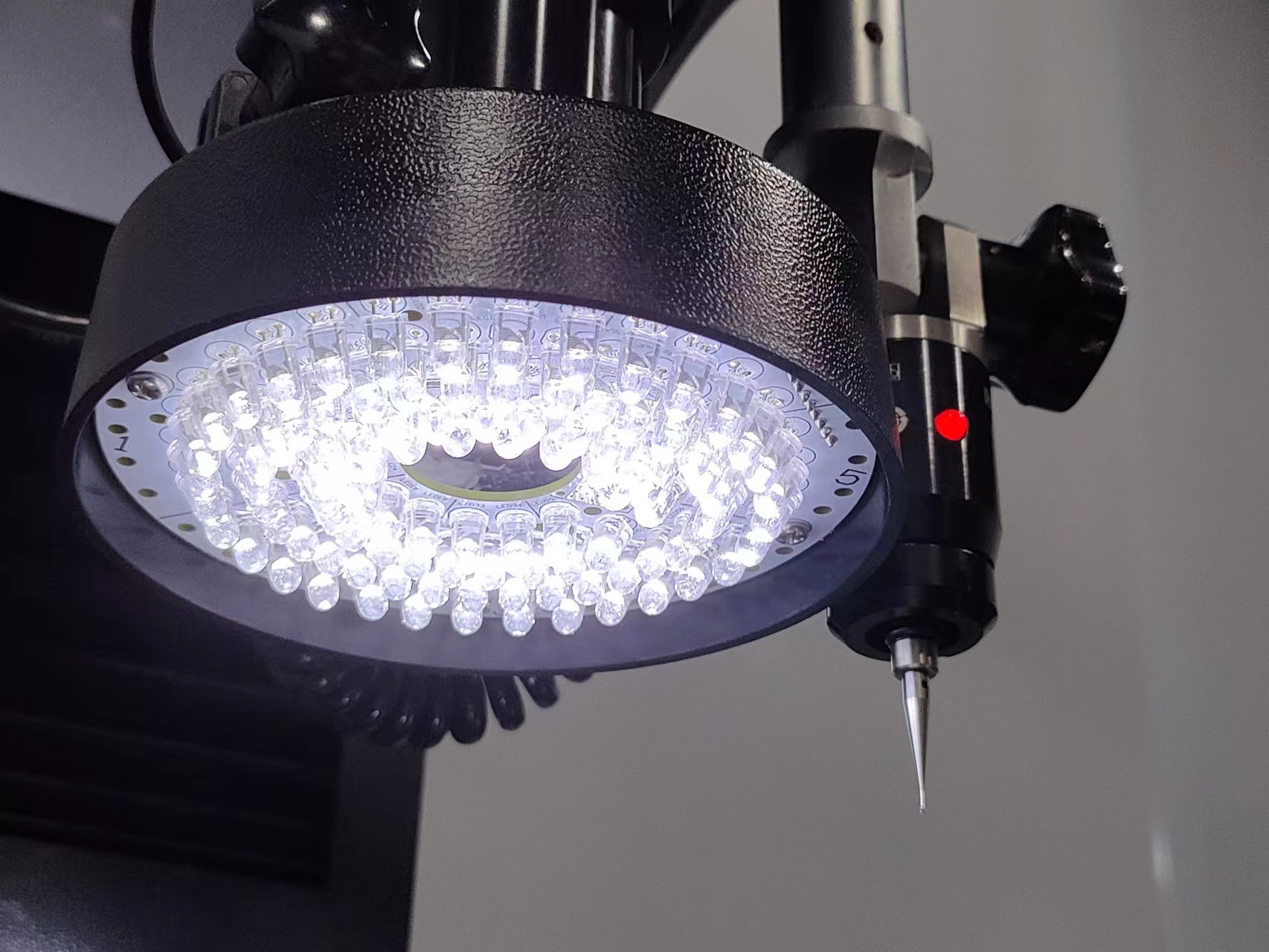

• Intelligent Lighting: Eight-zone LED surface illumination with laser positioning enables shadow-free imaging

Unmatched Technical Specifications

Multi-Dimensional Measurement Capabilities

Automated 2D/3D Analysis

• Batch Processing: AI-driven pattern recognition measures randomly placed parts without fixturing
• Cross-Platform Output: Direct export to DXF, Excel, PDF, and SPC statistical formats
• Probe Integration: Compatible with Renishaw touch probes for hybrid 3D feature measurement (spheres, cylinders, cones)

Stability Engineering

• Granite Base: Vibration-dampened marble construction ensures thermal stability
• Ethernet Motion Control: Replaces USB connectivity for robust data transmission
• Servo-Driven Axes: Industrial-grade motors achieve 300mm/s traverse speeds without accuracy loss

Industry Applications

• Electronics: SMD component placement verification
• Automotive: Fuel injection nozzle geometry inspection
• Tooling: Cutting insert edge radius measurement
• Medical: Implant surface topology analysis

Quality Assurance & Support

• 13-Month Warranty: Coverage from shipment date
• TQM Compliance: ISO-certified manufacturing with component aging tests
• Remote Diagnostics: Global technical support team with real-time troubleshooting

TKD Information

• Title: SP5040 CNC Vision Measuring System | 0.01μm Precision | Easson
• Keywords:
• CNC measuring machine
• Vision measurement system
• 3-axis linear encoder
• High-precision metrology
• Automated inspection equipment
• Description: SP5040 VMS CNC Vision Measuring System features 400×300×250mm travel, ±2μm repeatability, and 0.01μm resolution with F3 auto-zoom lens and 21-order volumetric compensation for industrial metrology applications.

This professional introduction:

• Highlights technical differentiators (F3 lens, 21-order compensation, Ethernet control)
• Quantifies benefits through specifications and application examples
• Structures complex features into digestible sections
• Uses precise terminology ("global shutter CMOS", "volumetric compensation")
• Includes actionable TKD metadata for SEO optimization
• Maintains technical rigor while emphasizing reliability and after-sales support to drive inquiries

Unparalleled Precision for Modern Metrology
The SP5040 VMS CNC Vision Measuring System represents the pinnacle of coordinate measuring machine technology, offering unmatched accuracy and versatility for today's most demanding measurement applications. As a leader among coordinate measuring machine manufacturers, Easson has engineered this system to deliver 0.01μm resolution and ±2μm repeatability across its generous 500 x 400 x 250 mm measuring volume. For industries requiring the utmost precision - from aerospace to medical device manufacturing - the SP5040 stands alone in its class of cmm machine.
With coordinate measuring machine prices continuing to be a key consideration for many businesses, the SP5040 offers an exceptional value proposition. Its advanced features and capabilities rival systems costing far more, making it an ideal choice for those seeking a coordinate measuring machine for sale that doesn't compromise on performance.

Revolutionary Vision and Motion Systems
At the heart of this coordinate measuring machine is Easson's proprietary vision system, featuring a high-resolution 1/2" CMOS global shutter camera paired with an F3 auto-zoom lens. This powerful combination enables distortion-free image capture at magnifications up to 125X, allowing for the inspection of even the most intricate components.
The SP5040's motion control system is equally impressive, utilizing high-precision servo-driven axes capable of 300mm/s traverse speeds without sacrificing accuracy. This cmm machine incorporates Easson's AS-80 Absolute Scale technology, providing 21-order volumetric compensation to correct for environmental and mechanical deviations.

Versatility for Diverse Applications
Whether you're in the market for a coordinate measuring machine for sale or evaluating coordinate measuring machine prices, the SP5040 offers unmatched flexibility to meet a wide range of measurement needs. Its automated 2D/3D analysis capabilities, powered by advanced AI-driven pattern recognition, allow for the efficient measurement of randomly placed parts without the need for complex fixturing.
For more complex measurement tasks, the SP5040 is compatible with Renishaw touch probes, enabling hybrid 3D feature measurement of spheres, cylinders, and cones. This versatility extends the cmm machine's capabilities into applications such as automotive fuel injector nozzle inspection and medical implant surface topology analysis.



About Us

Easson Measurement Technology Ltd. is a leading manufacturer of high-precision metrology equipment. With over 15 years of experience, we specialize in developing advanced vision measuring systems and linear encoders for industrial applications. Our commitment to innovation and quality has made us a trusted partner for businesses worldwide seeking reliable, high-performance measurement solutions.

Experience the future of precision measurement with the Easson SP5040 CNC Vision Measuring System. Whether you're upgrading your quality control processes or investing in your first high-precision CMM, our team is ready to help you maximize the value of this cutting-edge technology. Contact us today for a personalized consultation and discover how the SP5040 can revolutionize your measurement capabilities while delivering an exceptional return on investment.



FAQ

Who are we?
We are Easson Measurement Technology Ltd., a leading manufacturer of high-precision metrology equipment. With over 15 years of experience, we specialize in developing advanced vision measuring systems and linear encoders for industrial applications.

How can we guarantee quality?
We guarantee quality through our ISO-certified manufacturing process, rigorous component aging tests, and 13-month warranty coverage. Our SP5040 system features independently developed 3-axis linear encoders with 0.01μm resolution and closed-loop feedback for unmatched precision.

What can you buy from us?
From us, you can purchase the SP5040 VMS CNC Vision Measuring System, a state-of-the-art metrology solution with 500x400x250mm travel, ±2μm repeatability, and 0.01μm resolution. We also offer a range of linear encoders, digital readouts, and other precision measurement equipment.

Why should you buy from us not from other suppliers?
You should buy from us because we offer industry-leading precision with our 0.01μm resolution encoders, proprietary 21-order volumetric compensation, and AI-driven measurement capabilities. Our systems are engineered for demanding industries like aerospace and medical device manufacturing, backed by global technical support.

What services can we provide?
We provide comprehensive services including system customization, installation, training, remote diagnostics, and ongoing technical support. Our global team offers real-time troubleshooting to maximize your system's uptime and performance.

Do you offer customization options for specific industry needs?
Yes, we offer extensive customization options to meet specific industry requirements. Our engineering team can modify the SP5040 system's hardware and software for unique applications in aerospace, automotive, or medical device manufacturing, ensuring optimal performance for your precise needs.

What is the expected delivery time for the SP5040 system?
The typical delivery time for the SP5040 VMS CNC Vision Measuring System is 4-6 weeks from order confirmation. For urgent orders, we offer expedited production and shipping options to meet your deadlines. Contact our sales team for the most up-to-date lead times and rush delivery possibilities.
