| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | GS90 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 PCS per Month |

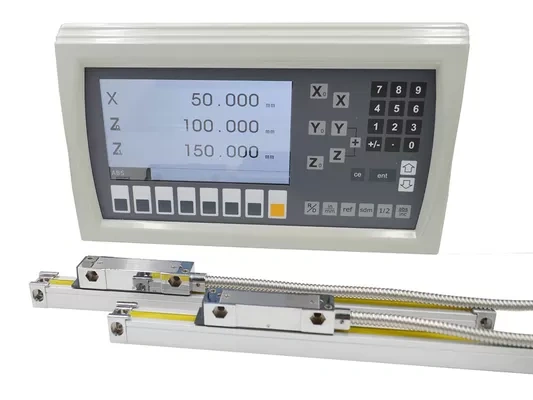

| Name: | Lcd Dro | Keyword: | Linear Digital Encoder |
|---|---|---|---|
| Display Resolution: | 0.005 Mm | Meas. Length: | 50-500 Mm |
| Warranty: | 13 Months | Power Supply: | DC 5V |
| Output Signal: | TTL | Application: | Milling Machine |
| High Light: |
0.005mm Glass Scale Linear Encoder,Drilling Lathe Scale Linear Encoder,GS90 digital linear scale |
||

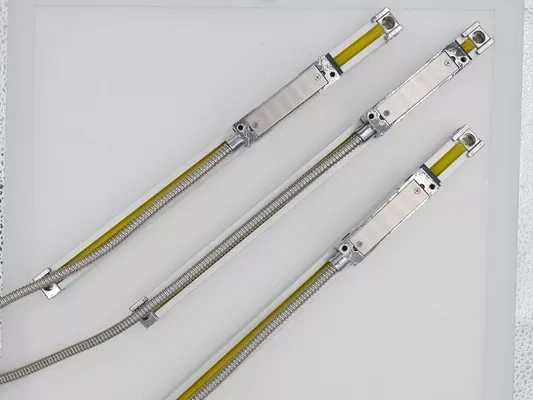

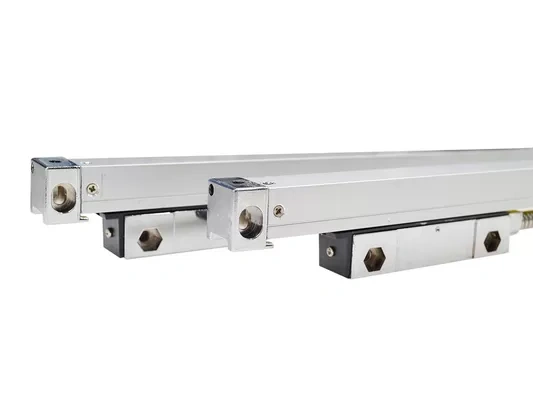

Factory Manufacturer Linear Encoder Scale For Drilling Lathe Grinder Machine
| GS90 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | |
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | |
| Slide Carrier System | Vertical five bearings supporting system | |
| Resolution | 5μm | |
| Measurement Travel | 50-500mm | Every 50mm per length Spec. up to 500mm |
| Accuracy | 50-500mm | ±10μm |
| Repeatability | 5μm (0.005mm) | |
| Hystersis | 5μm (0.005mm) | |
| Protection | IP 53 | |
| Power supply | DC 5V ± 5% | |
| Output Signal | TTL | |
Advanced Optical Measuring System
The GS series scales of the slide carrier , use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Sealing Lip
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
Aging Test
Linear encoder reader head sensor must be test for 3 x 24hours before assembly process.
Installation Diagram
Connector interface
DSUB 9PIN
| PIN | TTL | |
| Signal | Cable | |
| 1 | —— | —— |
| 2 | 0V | Orange |
| 3 | —— | —— |
| 4 | GND | GND |
| 5 | —— | —— |
| 6 | A | Yellow |
| 7 | 5V | Red |
| 8 | B | Green |
| 9 | R | Brown |
Linear encoder connector use gold-plated pins to avoid poor contact,ensure it will not rust for long time usage.
100% Laser calibration
All linear encoder are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report
Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
