| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | EA-926 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 SETS per Months |
| Name: | Glass Encoder | Keyword: | Glass Linear Encoder |
|---|---|---|---|
| Item: | Milling, Lathe, Grinding, Boring Machine | Power Supply: | 110V - 220V |
| Languages: | 20 Choices | Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm |
| Gross Wieght: | 3 Kgs | Output Signal: | TTL |
| High Light: |
Milling Optical Linear Encoders,Optical Linear Encoders 0.1um,Lathe Machine Glass Linear Encoder |
||

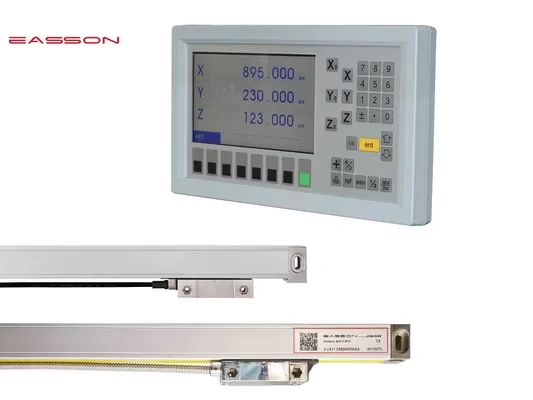

0.1µm Glass Scale Optical Linear Encoders for Lathe Machine
The EA series has a 7 inch color LCD screen which provide inactive graphic display and step by step operation graphical guidance for all DRO functions, which makes EA-926 extremely user friendly, allow operators can implement all the powerful DRO function within few minutes after switch on the DRO.
Purpose: It is matched with various sensors for measuring on machine tools and displaying the measured results in digital form.
Optical Linear Encoder
This type of encoder shines light onto a slit pattern that moves along a linear axis, and a sensor detects the light that passes through (or is reflected by) the pattern and outputs it as position information.
linear encoder
Optical Rotary Encoder
This type of encoder shines light onto a rotating slit pattern, detects the light passing through (or reflecting off) the sensor, and outputs it as position information.
Products Parameter
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
| Display background color |
Closed linear encoders can effectively prevent dust, chips and splash cutting fluid, which is ideal for machine tools
Optical Linear Scale | Linear Scale | Optical Glass Scale Specification
| GS10 | GS11 | GS12 | GS13 | GS30 | GS31 | GS32 | GS33 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | Vertical five bearings supporting system | |||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 100-1200mm | Every 50mm per length Spec. | Every 50mm per length Spec. | ||||||
| 1300-3000mm | Not available | Every 50mm per length Spec. up to 500mm | |||||||
| Accuracy | 100-450mm | ±8μm | ±5μm | ±8μm | ±5μm | ±8μm | ±5μm | ±8μm | ±5μm |
| 500-800mm | ±10μm | ±8μm | ±10μm | ±8μm | -- | ||||
| 1050-2000mm | -- | -- | -- | -- | -- | ||||
| 1300-3000mm | -- | -- | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
GS10 / GS11 / GS12 / GS13 Series
GS30 / GS31 / GS32 / GS33 Series
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
100% Laser calibration
Easson Each linear scale has undergone rigorous laser inspection and testing, and can provide accuracy test reports to ensure product quality and quality traceability.
