| Name: | Visual Inspection Systems | Application: | Machinery, Optics, Testing Department |
|---|---|---|---|
| Keyword: | Visual Measurement | Operation: | X Y Z Axis Manual |
| Encoder Resolution: | 0.5 μm | Accuracy: | (3+L/200)µm |
| Power Supply: | 220V 50Hz | Meas. Range: | 400 X 300 X 250mm |
Product Introduction
What is a Video Measurement Machine?
A Video Measurement Machine (VMM) is an advanced optical measurement device used for precision inspection and dimensional analysis of various components. It leverages high-resolution cameras, sophisticated optics, and computer software to capture and analyze images of objects, ensuring accurate measurements and quality control.
Key Features and Components
High-Resolution Cameras: These capture detailed images of the object being measured. The quality of the camera is crucial for obtaining precise measurements.
Lenses: Lenses magnify the object and focus the image onto the camera sensor. Different lenses are used for varying levels of magnification and detail.
Absolute Grating Linear Encoders: These devices provide highly accurate position feedback, ensuring precise movement and measurement of the object.
Motion Control System: This system moves the object or the camera and lens assembly to capture images from different angles and positions. It ensures smooth and accurate positioning.
Measurement Software: Advanced software processes the captured images, performs measurements, and analyzes data. It includes tools for edge detection, feature recognition, and geometric analysis.
Advantages of Using a Video Measurement Machine
Applications of Video Measurement Machines
Technical Specification
| Model Name | C-2515 | C-3020 | C-4030 |
| Measuring Range(mm) | 250 × 150 × 150 | 300 x 200 x 200 | 400 x 300 x 250 |
| Overall Dimension (mm) | 1000 × 600 × 1400 | 1200 x 720 x 1600 | 1200 x 720 x 1600 |
| Work Table Glass Size(mm) | 289 x 189 x 10 | 339 x 239 x 10 | 439 x 339 x12 |
| Weight (kg) | 170 | 280 | 410 |
| Max Table Load(kg) | 20 | 20 | 20 |
| Measurement Accuracy | (3+L/200) μm | ||
| Repeatability | 0.002 mm | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Encoder Resolution | 0.5 μm | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Mode | X Y Z Axis manual | ||
| Lens | Manual optical lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
1. Three axis of the Absolute Linear Encoder is developed by Easson, with a resolution of up to 0.5 microns
2. High precision Manual optical lens.
3. High resolution SONY CMOS sensor image processing, make the image is clear and without smearing.

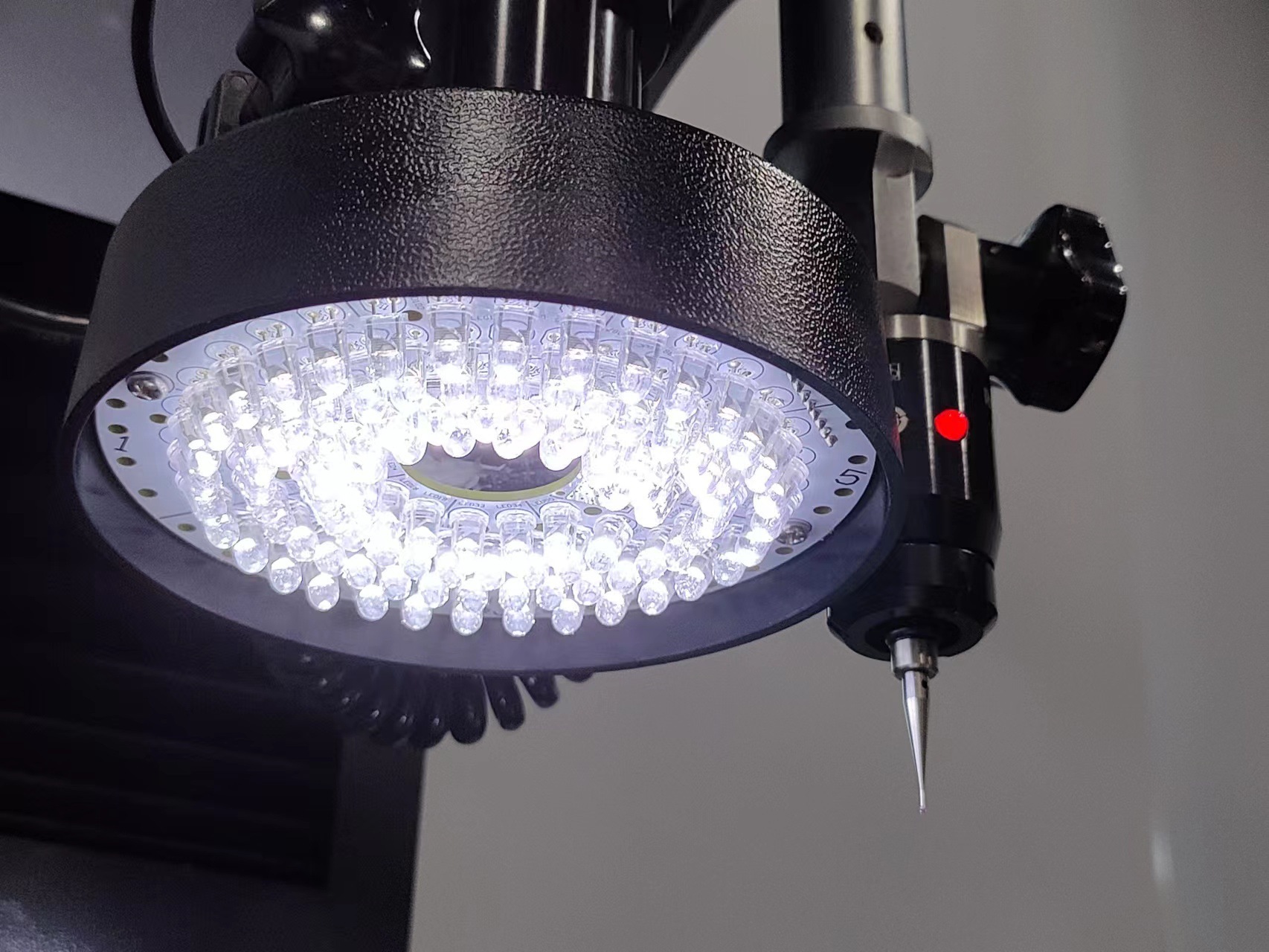

4. The surface light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED for long service life.

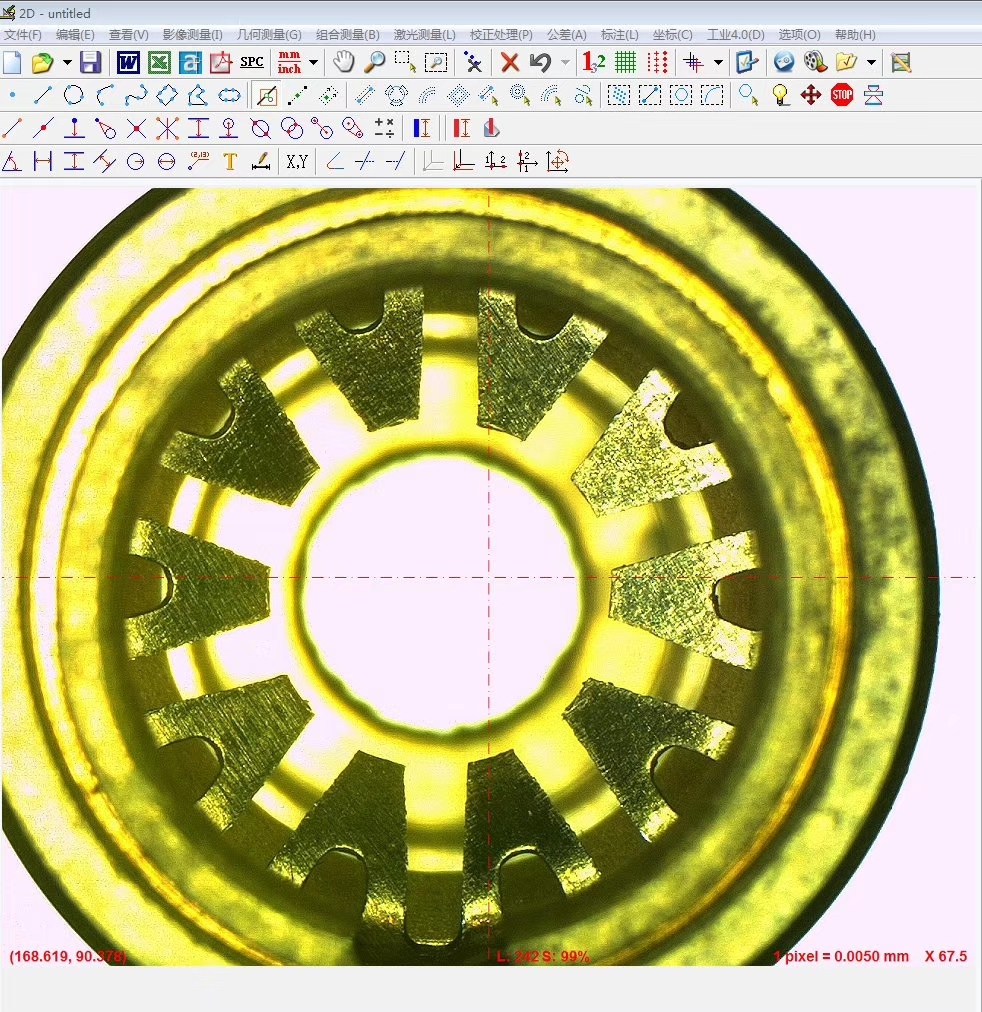

5. Independently developed powerful multi function Easson 2D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and AutoCAD.
6. Base and column are made of high precision 00 grade granite structure, which is stable and reliable.
Product Details
Easson video measuring instrument is fully developed and produced independently. All key parts of the vision measurement machine, such as linear encoder scale, lens, motion control system, 2D measurement software, etc. are independently developed and produced by our company.

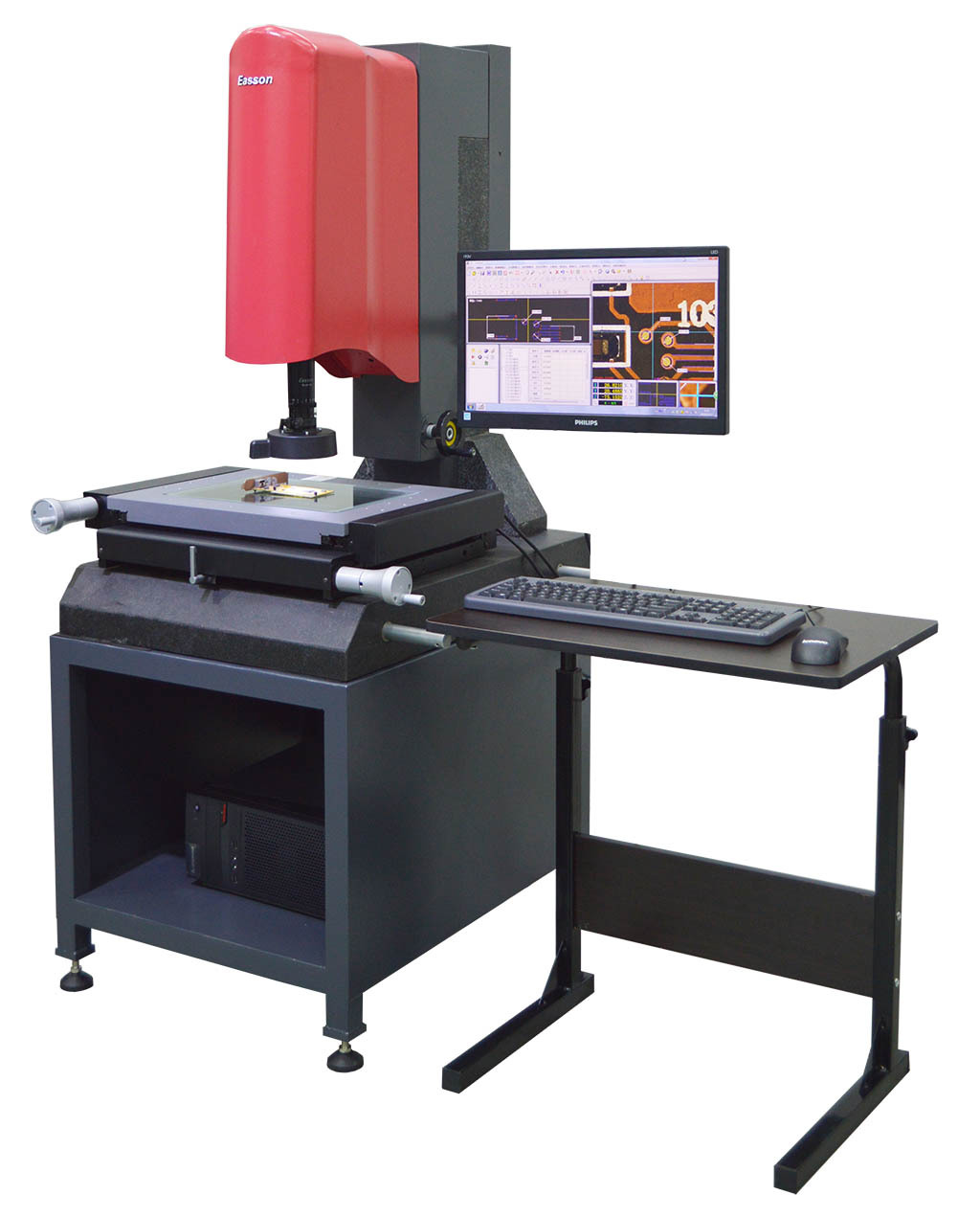

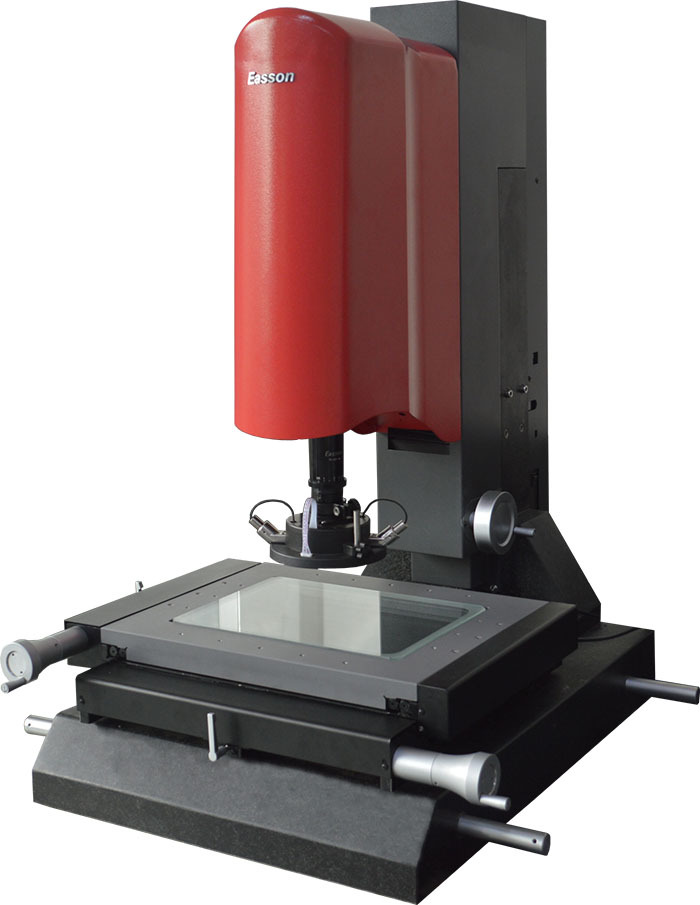

VMM uses high precision marble as the base of the machine body, coupled with a high-precision table. The XYZ axis is equipped with an optical linear scale measurement system with a resolution of 0.5 micron, measurement accuracy is (3 + L / 200) μm.
2D / 3D Multiple Measurement
Optional accessory high-precision touch probe for 2D / 3D composite measurement:
Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
FAQs
1. Why Choose Easson VMM?
Easson VMM stands out due to its in-house development and production of key components such as the absolute grating linear encoder, lenses, motion control system, and measurement software. This vertical integration allows us to maintain high standards of quality and offer competitive prices to our customers. Our commitment to innovation and excellence ensures that we provide the best solutions for your measurement needs.
2. How can we guarantee quality?
Easson are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. How can the machine achieve the high accuracy measurement?
4. Warranty:
All the products we provide 13 months( from the date of shipment )
5. Delivery:
Normally have stock for the VMM, if out of stock, delivery time is 10 to 15 days.
6. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
7. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
