3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: ES-14B
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 1000 SETS per Months
  • 3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine
  • 3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine
  • 3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine
  • 3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine
Description
Name: Easson Linear Scale Keyword: Linear Encoder Glass Scale
Application: Mill, Lathe, Grinding Machine Voltage: 110V - 220V, 50Hz
Languages: Chinese, English, German, Spanish, Thai, Hindi Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm
Gross Wieght: 3.5 Kgs Output Signal: TTL
High Light:

3 Axis Dro Measuring Systems

,

Digital Readout Dro Measuring Systems

,

Easson 14B dro scale

3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine



Products Description




Optical Linear Grating Scale 2 & 3 Axis Drilling Milling Lathe Grinder Position Scale With Digital Readout Measuring System

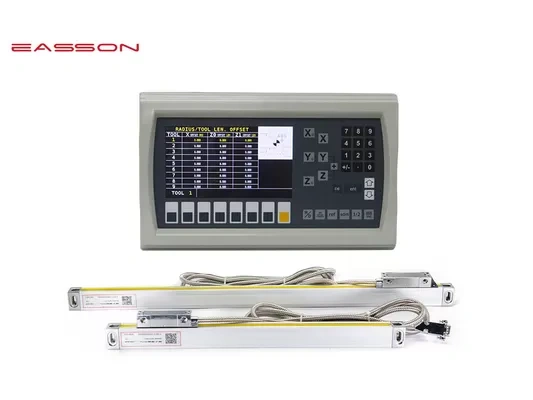

Easson ES14B 3 Axis multifunctional LCD DRO which is used for different machines such as milling machine, lathe machine, boring machine and grinding machine by setting the parameter in the DRO. It has a lot of graphics processing capabilities. For example, R function, line hole positioning in the milling machine etc..


Digital Readout System Products Parameter



Type ES-14B
Axis number 3 Axis
Axis Display 0.1μm, 0.5μm, 1μm, 5μm
Signal Input TTL
Power Supply AC110 V - 220 V
Net Weight (kg) 2.5
Input frequency 2 MB Hz
Operation Keyboard Light touch buttons
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 2 or 3 linear scale
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5



EMC Testing

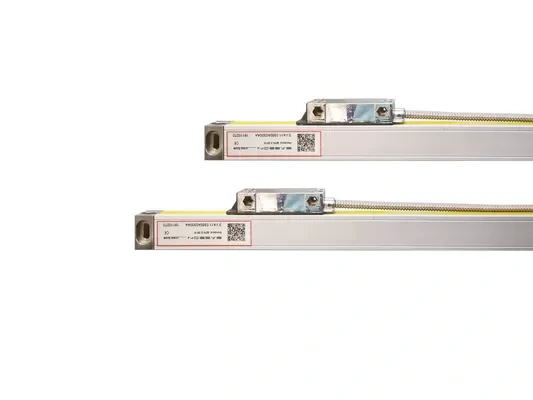

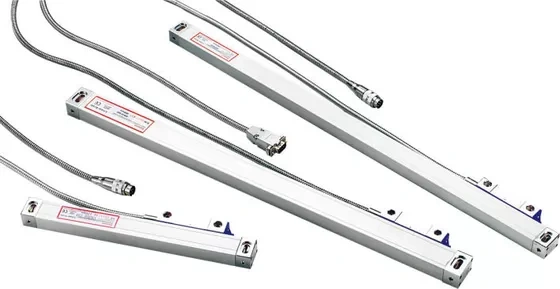

Optical Linear Scale | Linear Scale | Optical Glass Scale Specification





  VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Grating Glass Scale - Grating period:  20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Display Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422






Optical Glass Scale | Linear Scale | Linear Encoder | Measuring Ruler





Advanced Optical Measuring System





The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, make sure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment.





DSUB 9PIN

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey





100% Laser calibration


All Easson optical glass scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.



Accuracy Measurement Report


Each linear scale has a QR code for the accuracy report



3 Axis Digital Readout Dro Measuring Systems For Milling Lathe Machine 7

Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment. Such as DRO systems, precision optical profile projector, video measurement machines and etc..



The registered capital of Easson is USD 6 million, Easson employs more than 200 employees, over 20% of Easson’s employees are
university graduates forming a professional & dynamic team which is well educated, experienced, professional and high-level constitution.


Easson’s factory building is specifically design & built for the manufacturing of precision measuring equipment, there are two class 10,000 clean rooms and one under ground temperature control room inside the building, for the assembly of high precision components, QC and calibration process, Easson has two HP(Agilent) Laser Interferometers for being the company’s Length Measurement Standard.
