| Name: | Vision Inspection Systems | Meas. Accuracy: | (1.5+L/200) μm |
|---|---|---|---|
| Keyword: | Vision Measurement System | Meas. Travel: | 300 X 200 X 200 Mm |
| CCD: | High Resolution SONY CMOS Camera | Scale Resolution: | 0.01 μm Absolute Linear Scale |
| Operation Model: | Automatic | Repeatability: | ± 2 μm |
Easson Manual VMM Video Measuring Machines With Auto Zoom Lens For QC Inspection
Product Introduction
Vision measuring machines are particularly valuable in industries where precision is paramount, such as aerospace, electronics, automotive, and medical devices. They are capable of performing non-contact measurements, making them ideal for delicate or soft materials that could be damaged by traditional contact measurement tools.
Working Principle
What is the VMM machine? VMM is a sophisticated piece of equipment widely used in the field of metrology for the precise measurement and inspection of manufactured components. These machines integrate advanced optical and digital technologies to capture high-resolution images of objects, which are then analyzed using specialized software to evaluate dimensions, shapes, and surface characteristics.
When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like ponit, line, surface to the workpiece.
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
1. The X / Y / Z three axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.

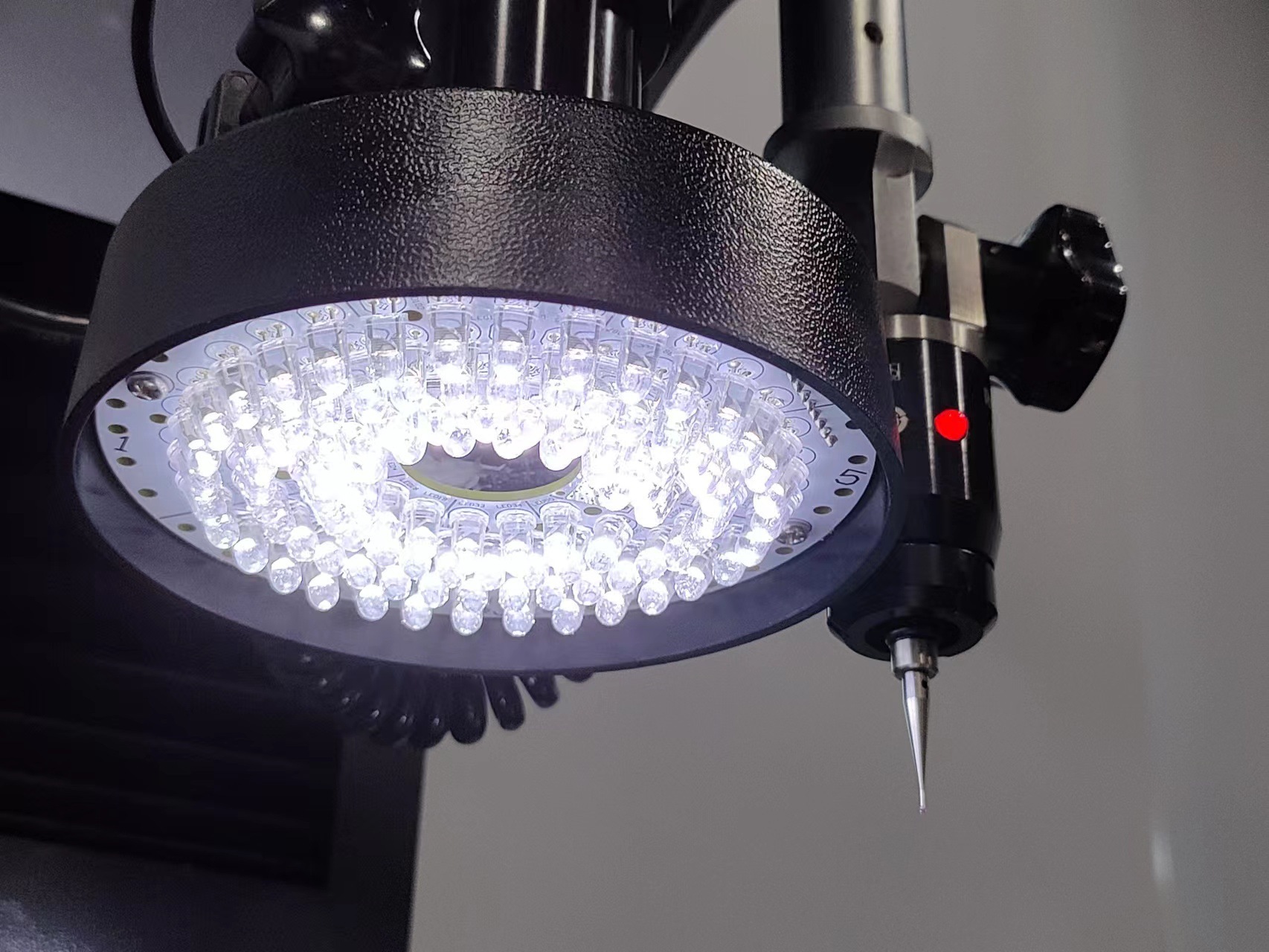

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.

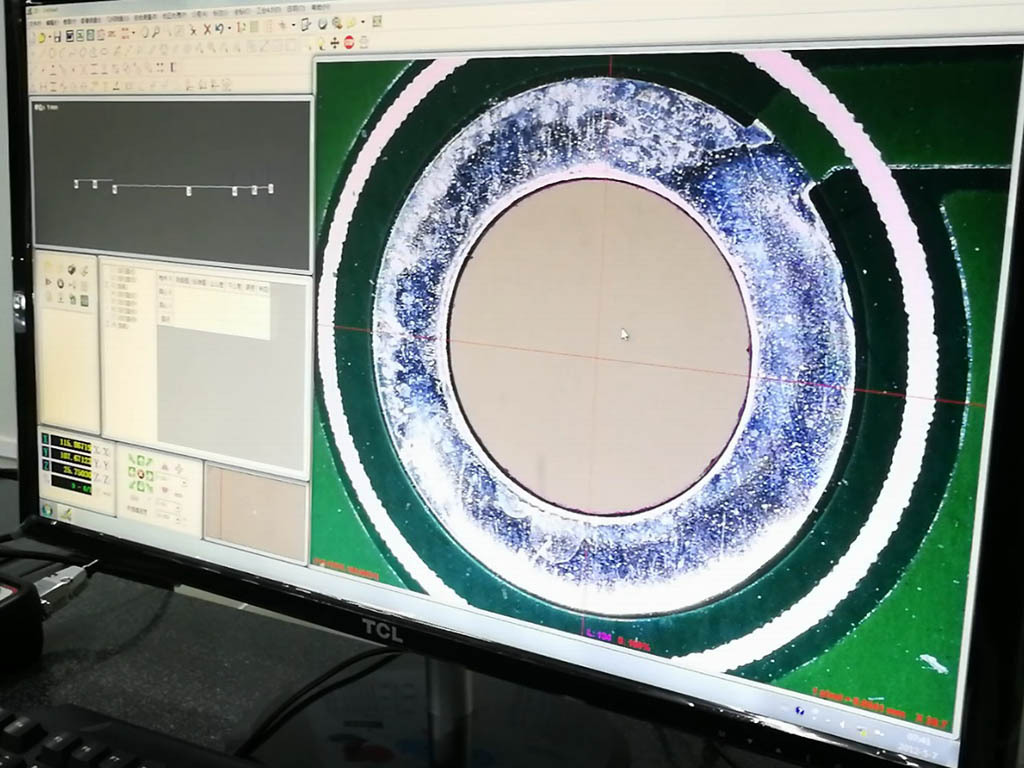

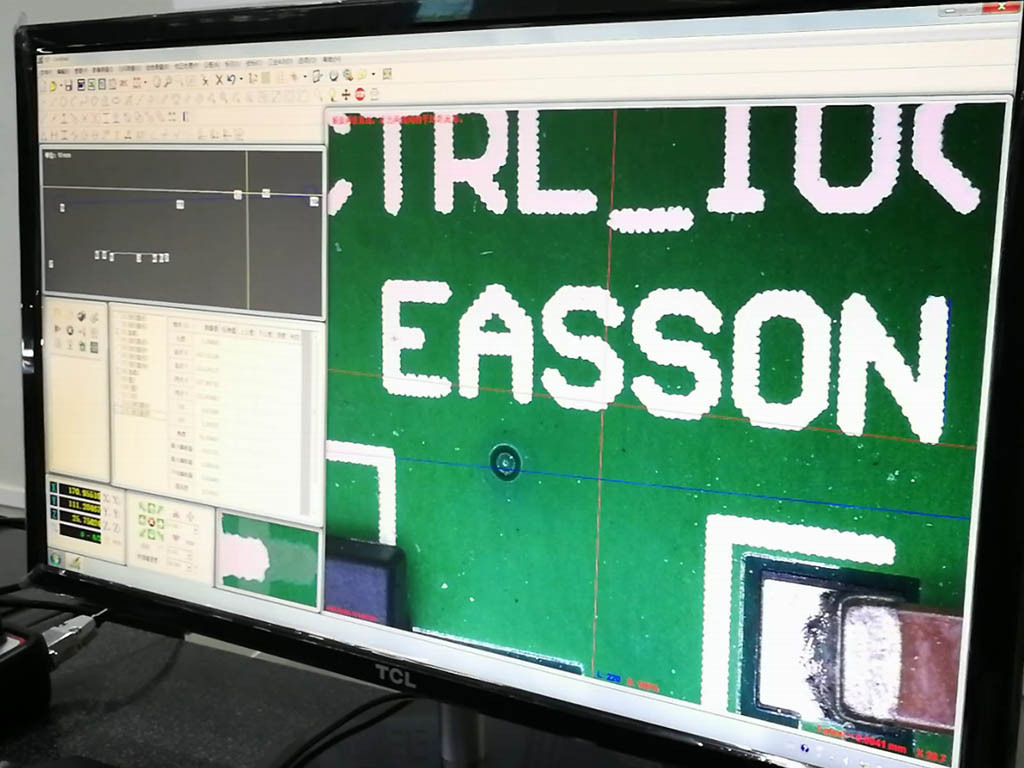

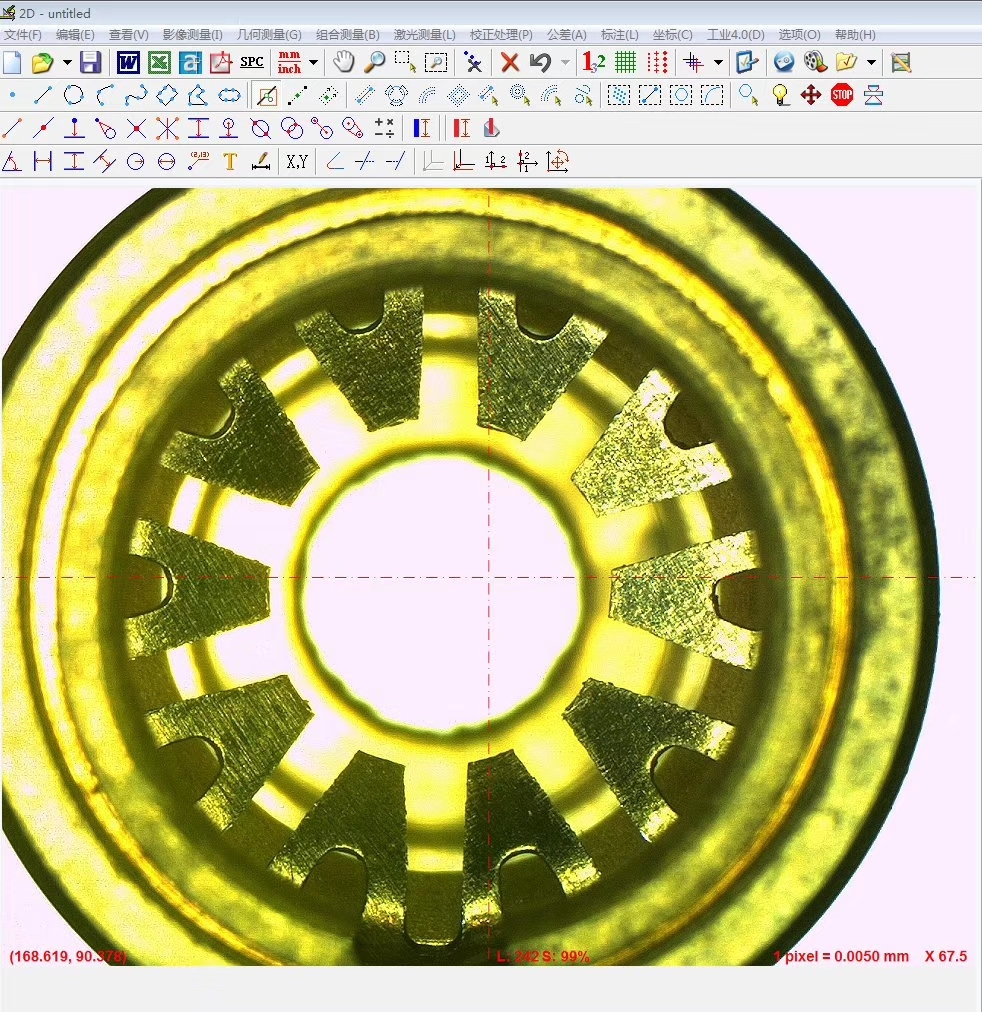

6. Excellent imaging and optical systems; Powerful 2D Measurement software.
7. Measurement data can be imported into Word, Excel, and AutoCAD.
8. The column and base are made of high precision 00 grade granite structure, which is stable and reliable.
AR Series Control System
F3 high precision closed loop auto zoom lens

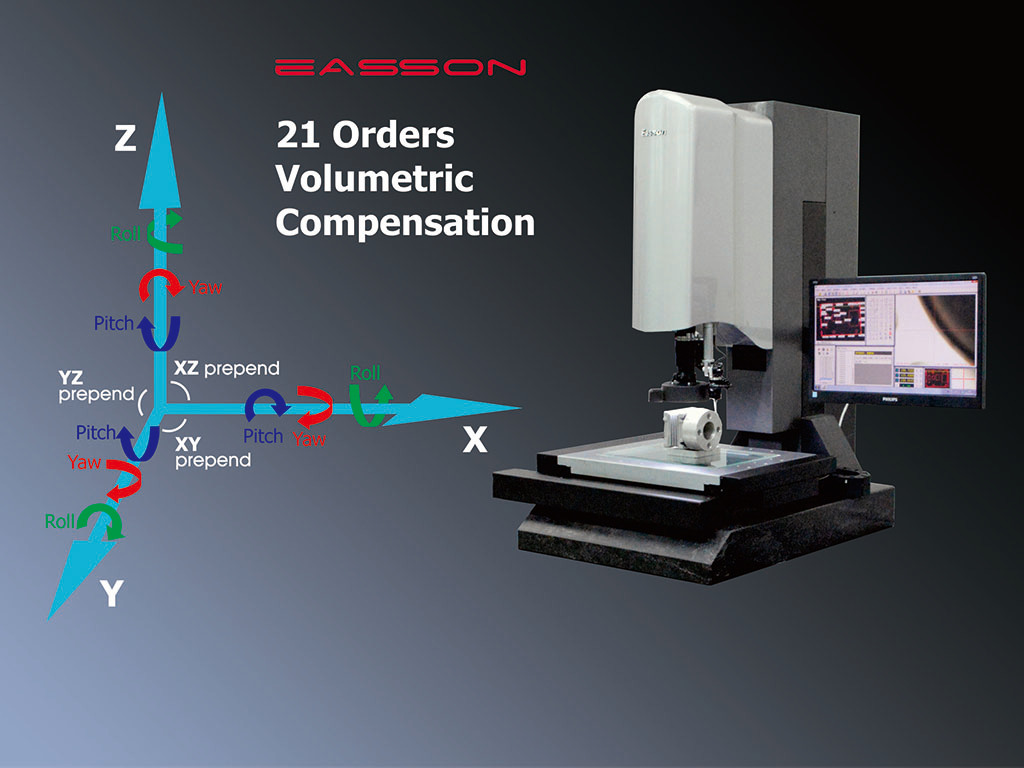

21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 lines volumetric compensation, with Ultra-high-speed linear encoder reading and built-in EAD (absolute scale decoder) , equipped with AS80 high precision absolute linear scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
Vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement.
Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement etc.
