| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | GS10 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 PCS per Month |
| Name: | Lathe Digital Readout Kit | Model: | GS10 |
|---|---|---|---|
| Brand Name: | Easson | Resolution: | 0.005mm |
| Length: | 50-1000mm | Power Supply: | DC 5V |
| Output Signal: | TTL | Keyword: | Mill Dro Kit |
| High Light: |
Digital Dro Linear Scale Encoder,1000mm Glass Scale Encoder,50mm Linear Scale Encoder |
||

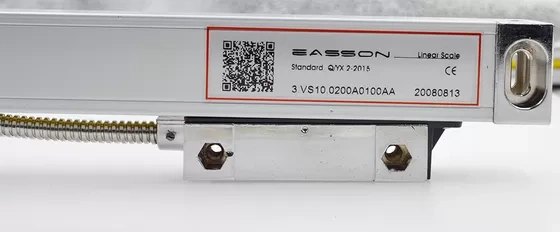

Easson GS Digital Dro 50 - 3000 mm Digital Readout Systems
Product Specification
Linear encoders monitor linear motion and provide position feedback in the form of electrical signals. In a servo drive system, a linear encoder provides the precise position of the load in addition to the speed and direction feedback provided by the motor's rotary encoder. For stepper drive systems, which typically operate in open-loop mode without position feedback, adding a linear encoder can improve the accuracy and reliability of the positioning system without the added cost and complexity of a servo motor.
| GS10 | GS11 | GS12 | GS13 | GS20 | GS21 | GS22 | GS23 | GS30 | GS31 | GS32 | GS33 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||||||
| Slide Carrier System | Vertical five bearings supporting system | 45° five bearings supporting system | Vertical five bearings supporting system | ||||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm per length Spec. | Not available | Every 50mm per length Spec. | |||||||||
| 1300-3000mm | Not available | Every 100mm per length Spec. | Every 50mm per length Spec. up to 500mm | ||||||||||
| Accuracy | 100-450mm | ±8μm | ±5μm | ±8μm | ±5μm | -- | ±8μm | ±5μm | ±8μm | ±5μm | |||
| 500-800mm | ±10μm | ±8μm | ±10μm | ±8μm | -- | -- | |||||||
| 1050-2000mm | ±15μm | ±12μm | ±15μm | ±12μm | -- | -- | |||||||
| 1300-3000mm | -- | ±25μm | -- | ||||||||||
| Repeatability | 2μm (0.002mm) | ||||||||||||
| Hystersis | 3μm (0.003mm) | ||||||||||||
| Protection | IP 53 | ||||||||||||
| Power supply | DC 5V ± 5% | ||||||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
GS10 / GS11 / GS12 / GS13 Series
GS30 / GS31 / GS32 / GS33 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Linear encoder glass scale are used in various machines with Easson digital readouts , which is often used to detect the coordinates of the tool and the workpiece, to observe and track the cutting error, in order to play a role in compensating the movement error.
Advanced Optical Measuring System
The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Double Seals Design
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
Easson Each grating scale has undergone rigorous laser inspection and testing, and can provide accuracy test reports to ensure product quality and quality traceability.
Accuracy report
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
