Elevate your milling operations with Easson's advanced 5μm/1μm Digital Linear Scale DRO Systems. These high-precision scales are engineered to deliver accurate and reliable measurements, ensuring optimal performance in milling applications.
Our digital linear scales are designed with state-of-the-art technology, providing exceptional accuracy down to 1μm. This ensures precise measurement and control, reducing errors and enhancing productivity.
Robust Construction for DurabilityConstructed with high-quality materials, Easson's DRO systems are built to withstand the demanding environments of milling operations. The robust design ensures long-term durability and consistent performance.
User-Friendly InterfaceFeaturing an intuitive interface, our digital linear scales are easy to set up and operate. The clear display and straightforward controls make them ideal for both experienced machinists and newcomers.
| Name: | Linear Scale Measurement | Keyword: | Linear Scale Physics |
|---|---|---|---|
| Meas. Standard: | 0.02 Mm | Meas. Length: | 50-1200 Mm |
| Resolution: | 5 µm | Warranty: | 1 Year |
| Power Supply: | DC 5V | Output Signal: | TTL |
| High Light: |
1um DRO Systems,5um DRO Systems,0.02 mm Easson Dro System For Milling |
||

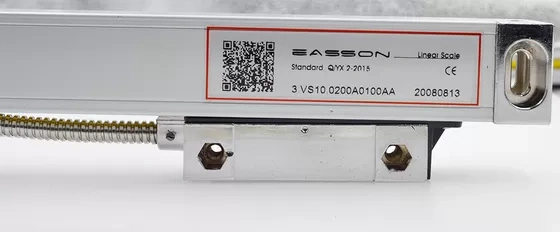

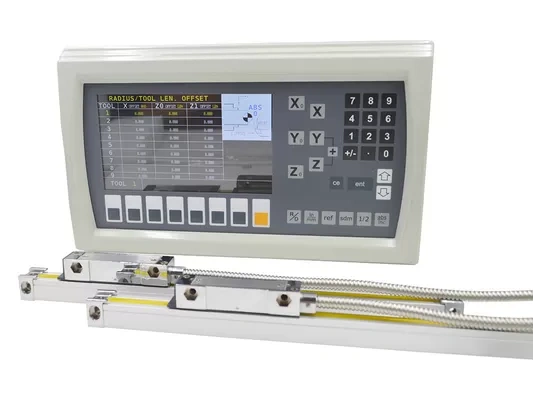

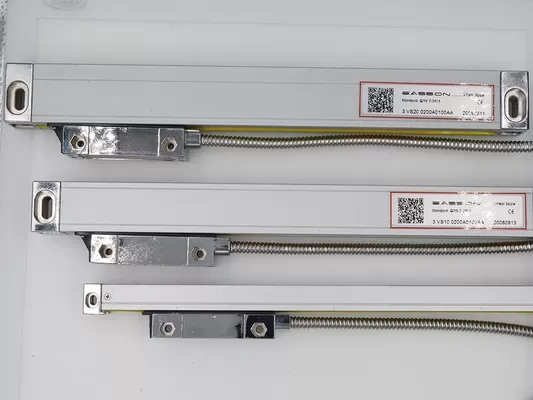

5um 1um Digital Linear Scale DRO Systems For Milling Machine
Product Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 Series

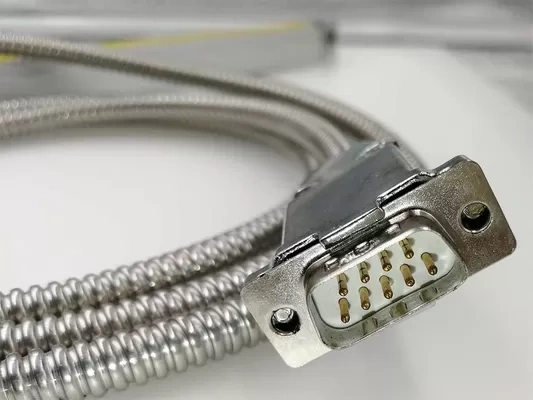

Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Advanced Optical Measuring System
The slide carrier of the VS / VA series linear encoder, use a five bearing design and six spring for optical grating linear scale, specially in long dimension scale like the large Lathe machine. The Accuracy is much better than the GS20 series long scale.
Aging Test
Easson Optical Linear Encoder's reader head need to be tested for 72 hours aging test before assemble,
make sure reader head quality is reliable for long time usage.
100% Laser calibration
Easson all linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report in QR code
Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
