| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | ES-14B |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 SETS per Months |
Product Details

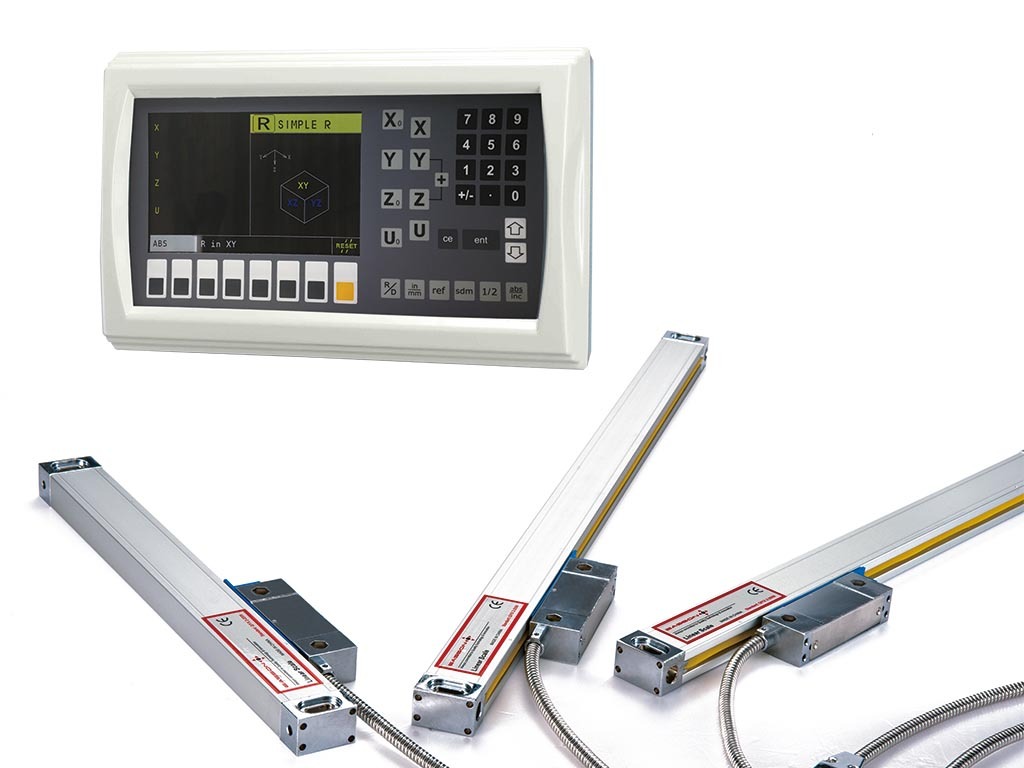

ES-14B has been designed by Easson to supply to the oversea market an "All in one and full options" Digital Readout System in 2018. In the ES-14B it is in fact possible to select the required application(Milling, Lathe, Boring, Drilling, Grinder, Wirecut) directly during the DRO setup.
The ES-14B series is CE certified and is manufactured according to the TQM(Total Quality Management System). The electronic boards comply with the RoHS standards.
Keyboard Description:
A: Numbers, decimal points , plus and minus keys
B: Up and down selection key
C: XYZ Axis display value to zero key
D: confirmation key
E: X Y Z axis selection key
F: Clear key
1. clear key in normal calculation mode
2. cancel the result transfer's temporarily zero preset
G: Function menu key
H: Function selection Key
I: LCD display screen
R/D: Switch between diameter and radius display key, only valid in lathe mode
in/mm: Switch between inch and metric display
Ref: Find the axises of the reference point, there are a permanent and fixed mark (position) in the center of every glass scale, normally it is called REF mark or REF point.
sdm: Subdatum function, DRO provide extra 199 subdatums (sdm) memory to overcome the shortfalls of having only the ABS/INC coordinates.
1/2: The half display coordinate using centre find function
ABS/INC: Switch Absolute or Incremental display
Technical Specification
| Model | ES-14B | ||
| Axis number | 3 Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V - 220 V | ||
| Gross Weight (kg) | 3.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Optical Glass Scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test it.
Products Description
Digital Readout System
Basic parameter in the ES-14B is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
ES-14B is an all in one and full options DRO which have specific functions which are very important to machine retrofitting, such as Non linear compensation, Axis speed display... and many others important features that make it the ideal solution for retrofitting to many different type of machine tools.
Switch power supply Advantage:
1. Small size and light weight
2. High power efficiency
3. Low work heat output and high reliability
4. Integrated EMC filtering device for power supply, with high integration level

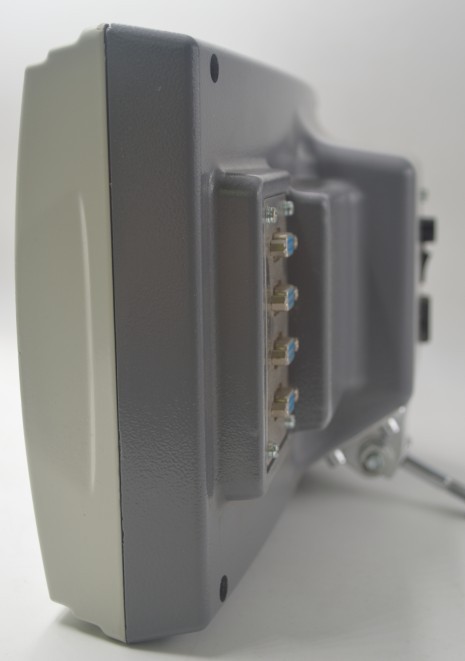

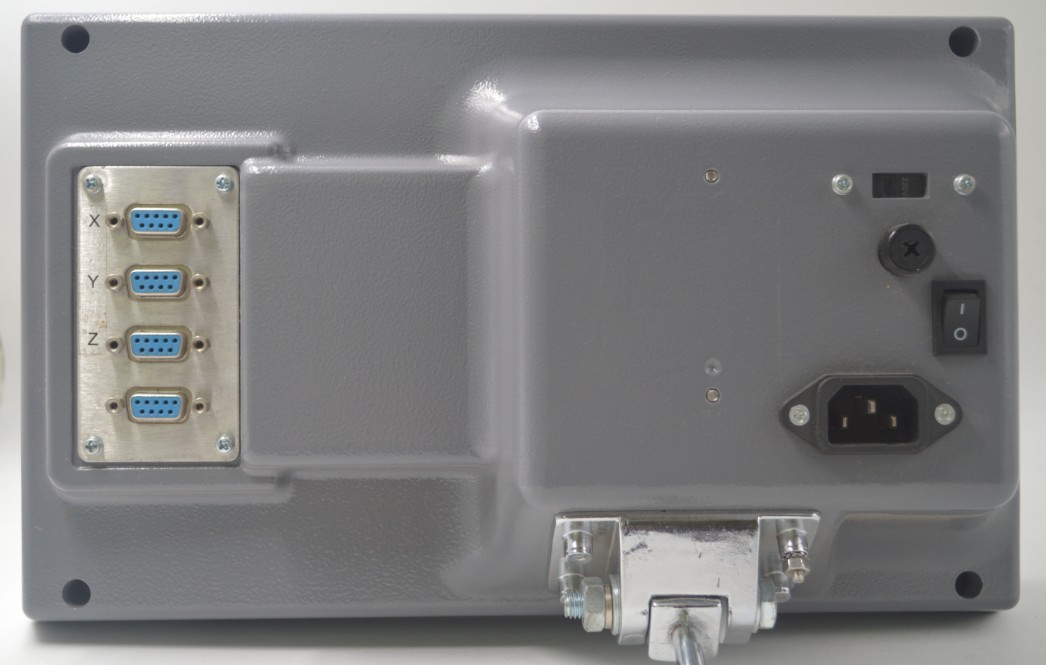

Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | Red | Green | Brown |
