Product Introduction

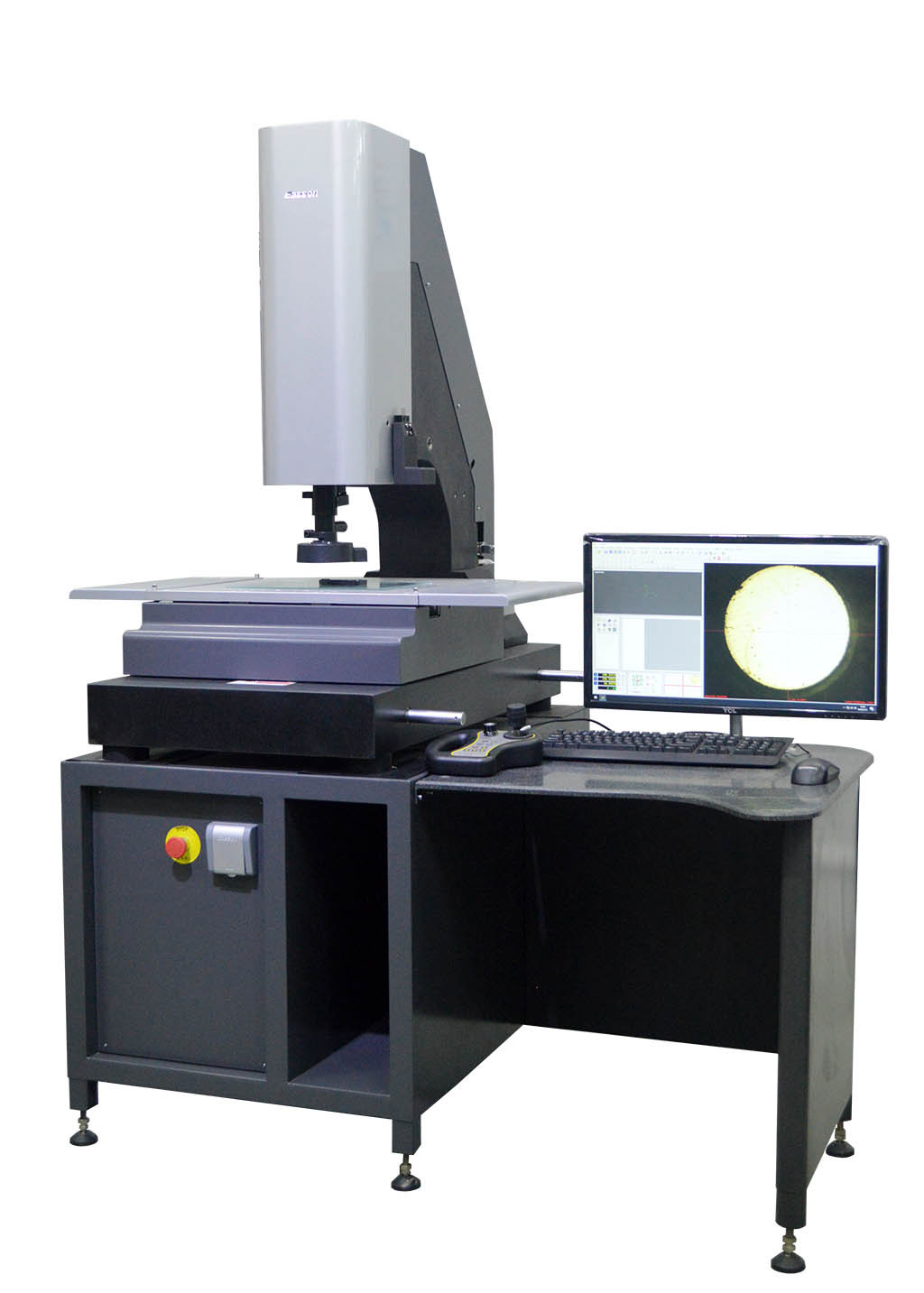

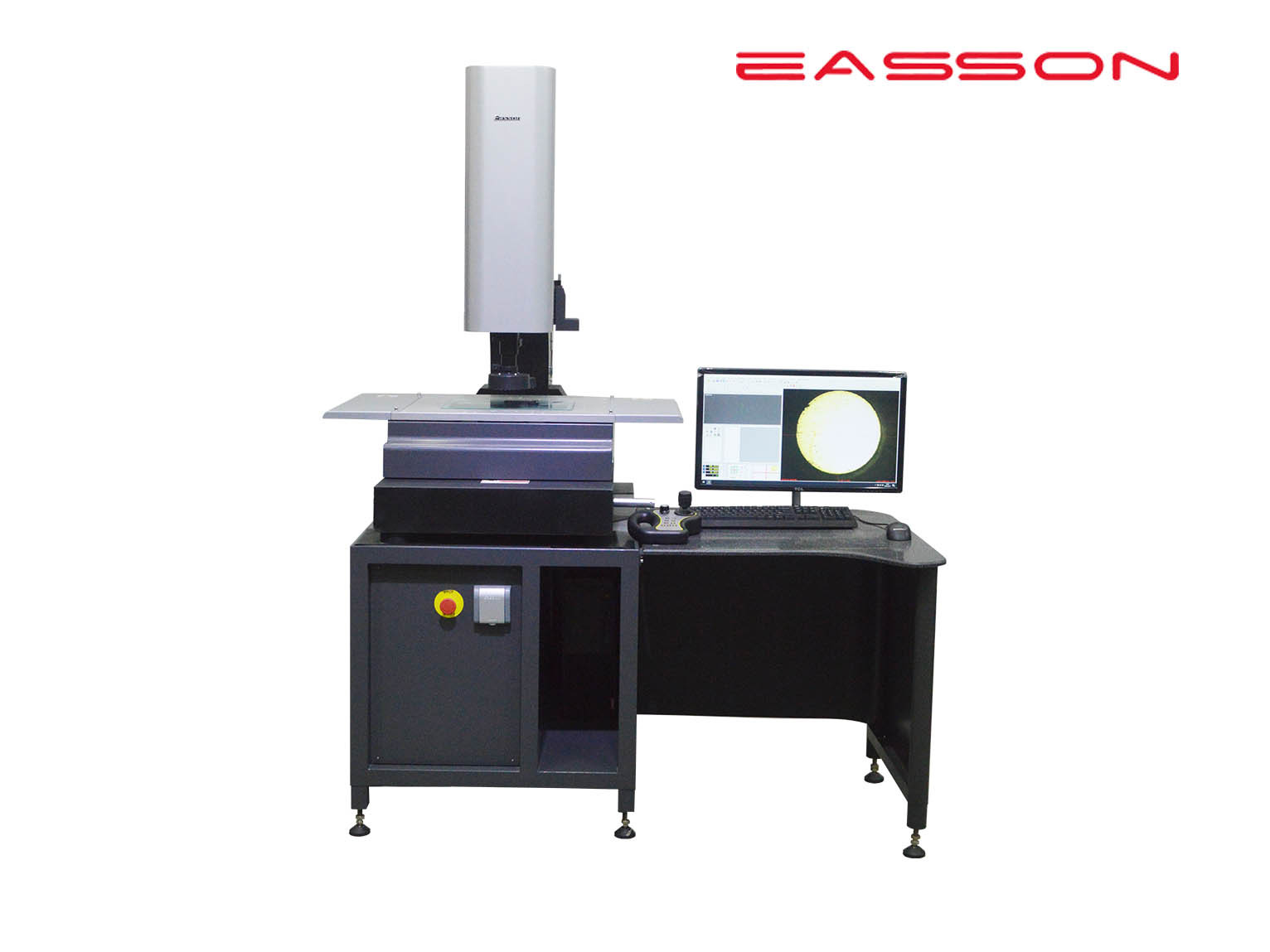

The AT-3020 CNC Automatic Vision Measurement machine is tailor-made for continuous batch testing over extended periods (7 x 24 hours), offering high speed, efficiency and power.
It incorporates the three-axis Easson AC servo motor system in the AT series, widely acknowledged for its reliability, ensuring rapid and dependable measurements.
The features of AR- 3 system are as follows:
- Special purpose-built processor (ASP) to significantly reduce the number of electronic circuits and parts to improve reliability.
- Single circuit board structure in order to greatly reduce the number of wiring to improve reliability.
- High speed, energy saving and high precision fully closed-loop AC servo control system, which can provide positioning accuracy up to 1 μm, in order to minimize the possible factors affecting measurement repeatability.
- 21 orders of high precision geometric stereo spatial error compensation.

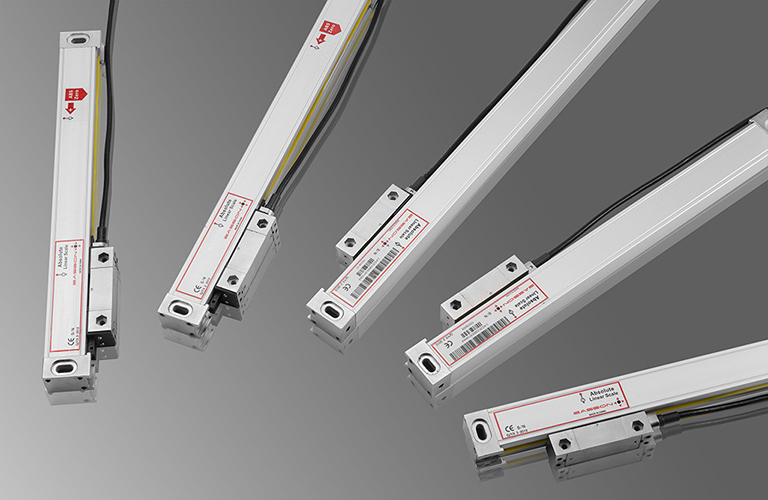

- X , Y , Z axis of the Absolute Linear Scale is independent researched and developed, with a resolution up to 0.01 μm.
- The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
- 3 axis precision linear guide, precision drive system and CNC control system.
Technical Specification
| Model Type |
AT-3020 |
AT-4030 |
| Measuring Travel(mm) |
300 x 200 x 200 |
400 x 300 x 250 |
| Dimension (mm) |
1200 x 720 x 1600 |
1250 x 900 x 1600 |
| Work Table Glass Size(mm) |
339 x 239 x 10 |
439 x 339 x 12 |
| Weight (kg) |
280 |
460 |
| Max Table Load(kg) |
30 |
30 |
| Measurement Accuracy (μm) |
1.5+L/200 |
| Repeatability |
2 μm |
| Magnification |
Optical Magnification 0.7-4.5X, Image Magnification 20-125X |
| Axis Display Resolution |
0.00001mm (0.01μm) |
| Lighting System |
Eight areas up light source with two laser positioning system |
| Operation |
Automatic control by mouse, joystick or keyboard |
| Lens |
Automatic Zoom, automatic focus optical coaxial lens |
| Vision System |
High resolution SONY CMOS global shutter camera |
F3 high precision closed loop auto zoom lens
Integrated with the high precision, high-resolution ring scale created by Easson's F3 lens and featuring full closed-loop position feedback, this system eliminates image repetition errors caused by gaps in gear transmission. This enhancement significantly improves the overall measurement repeatability.
F3 Lens of Z axis use a servo motor control independent up and down, without the sheet metal cover any movement.
21 Orders Volumetric Compensation
Easson Vision Measuring Machine using AR3 Network control System which included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in absolute code decoder of AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement

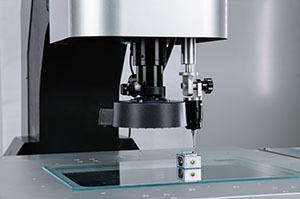

UK Renishaw high-precision touch probe for 2D / 3D composite measurement: Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
High-Precision Linear Encoder TechnologyThe system uses linear encoders to provide high-resolution, repeatable measurements of plastic parts. This ensures accurate dimensional analysis, particularly for small, intricate components that require precision for proper fit and function.Video and Vision Measuring Machine IntegrationBy combining video measuring machine capabilities with a vision measuring machine, this system allows for non-contact, optical measurement. The integrated vision system captures detailed images of the part for inspection, increasing measurement speed and minimizing human error.Automated CNC ControlThe CNC control system automates the measurement process, improving consistency and reducing the time spent on manual operations. This system is ideal for environments where high-volume inspection of plastic components is required, as it enhances productivity while maintaining high precision.Versatile Measurement for Plastic ComponentsSpecifically designed for the inspection of plastic parts, this machine excels in measuring intricate features, such as molded shapes, thin walls, and curved surfaces, ensuring high accuracy in the production of plastic components for various industries.
