Name: 3 Axis Digital Readout For Milling Machine Keyword: Digital Dro
Applications: Milling, Lathe, Grinder & Boring Machine Languages: 20 Choices
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm Gross Wieght: 3.5 Kgs
Power Supply: 110V - 220V Output Signal: TTL

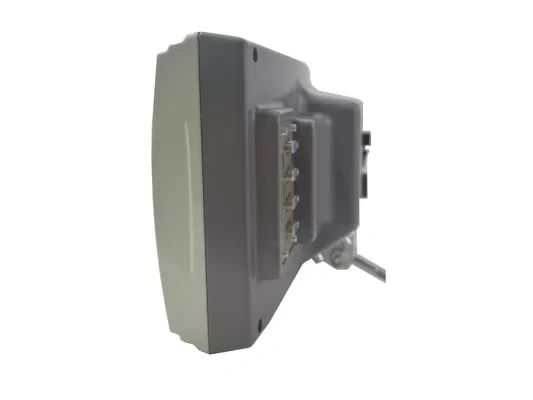

  • Digital Readout Dro kit For Bridgeport Milling Lathe Machine
  • Digital Readout Dro kit For Bridgeport Milling Lathe Machine
  • Digital Readout Dro kit For Bridgeport Milling Lathe Machine
  • Digital Readout Dro kit For Bridgeport Milling Lathe Machine
Description

Packaging & Delivery


Single package size: 40x26x18 cm

Package Type: Carton box

Net weight: 2.5 kgs

Delivery:

Quantity 1-10 11-50 51-100 >100
Est. time ( days ) 3 5 7 15



Digital Readout Dro kit For Bridgeport Milling Lathe Machine 0

Basic parameters are included as below:

1. Centering (1/2)

2. Metric / inches Display (mm / Inch)

3. Absolute / incremental (ABS / INC)

4. Power off Memory (30 subdatum)

5. 199 subdatum

6. Reference Memory (REF)

7. Build in Calculator

8. Pitch Circle Diameter (PCD)

9. Line Hole Positioning (LHOLE)

10. Simple “R” Function

11. Linear Error Compensation

12. Non Linear Error Compensation

13. Axis Speed Display

14. Radius / Diameter (Lathe function)

15. Z axis Summation(Lathe function)



Keyboard Description:

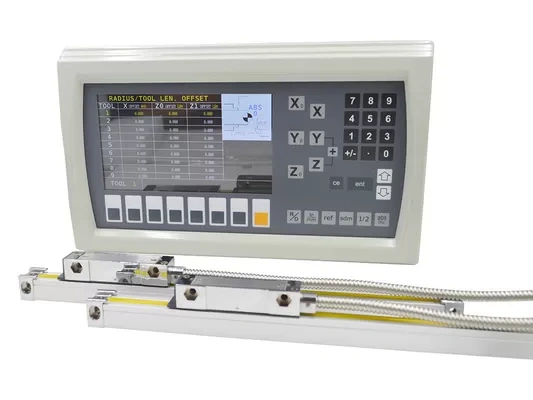

Aluminum Shell  LCD 3 Axis Dro For Bridgeport Mill Milling Machine 1





A: Numbers, decimal points , plus and minus keys



B: Up and down selection key



C: XYZ Axis display value to zero key



D: confirmation key



E: X Y Z axis selection key



F: Clear key

1. clear key in normal calculation mode

2. cancel the result transfer's temporarily zero preset



G: Function menu key



H: Function selection Key



I: LCD display screen



R/D: Switch between diameter and radius display key, only valid in lathe mode



in/mm: Switch between inch and metric display



Ref: Find the axises of the reference point, there are a permanent and fixed mark (position) in the center of every glass scale, normally it is called REF mark or REF point.



sdm: Subdatum function, DRO provide extra 199 subdatums (sdm) memory to overcome the shortfalls of having only the ABS/INC coordinates.



1/2: The half display coordinate using centre find function



ABS/INC: Switch Absolute or Incremental display



Technical Specification




Model number ES-14B
Axis number 3 Axis
Axis Display 0.1 μm, 0.5 μm, 1 μm, 5 μm
Signal Input TTL
Power Supply 110 V  / 220 V
Net Weight (KGS) 2.5

Maximum input

2 MB Hz
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 3 Linear Scale Encoder
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5



 EMC Testing equipment


 Make sure all Easson Digital Readout products need pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test the electromagnetic compatibility.

Digital Readout Dro kit For Bridgeport Milling Lathe Machine 2





Digital Readout Dro kit For Bridgeport Milling Lathe Machine 3

Easson engineers develop another new type power supply unit to replace the old one(transformer).



Switch power supply Advantage:

1. Small size and light weight

2. High power efficiency

3. Low work heat output and high reliability

4. Integrated EMI filtering device for power supply, with high integration level



Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:



IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )

IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )

IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )




 Aging Testing Room

Digital Readout Dro kit For Bridgeport Milling Lathe Machine 4

Digital Readout Dro kit For Bridgeport Milling Lathe Machine 5



Product Aging test can verify whether the process, design, material and other aspects are defective. Therefore, we can using this testing promptly revises the product design to improve product quality and service life.

 Easson Digital Readout System and linear scale reader head need to do the aging test for 72 hours before QC procedure.

Digital Readout Dro kit For Bridgeport Milling Lathe Machine 6

FAQs


1. How can we guarantee the quality?

We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.



2. Do you have OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.



3. What's about the cargo Delivery?
For small quantity, we suggest ship the goods by Fedex or DHL etc.express, delivery time estimate should be 3 - 10 days; For large quantity, we can ship vis seafreight and air shipment, seafreight delivery time should be 30 days, air freight should be 7-10 days.



4. How long can we provide the products warranty?
All the products we provide 13 months( from the date of shipment )



5. Do you have technical support?
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.



6. Which payment terms do you accpept?
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
