| Name: | Dro For Lathe Machine | Keyword: | Dro Scale |
|---|---|---|---|
| Meas. Standard: | 0.02mm | Meas. Length: | 50-1250mm |
| Display Resolution: | 0.005mm | Warranty: | 13 Months |
| Power Supply: | DC 5V | Output Signal: | TTL |
| High Light: |
Optical Incremental Linear Encoder,0.02mm Incremental Linear Encoder,0.02mm Incremental Linear scale |
||
Dro LCD Display Optical Incremental Linear Encoder For Metrology
Product Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Grating Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Display Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 / VS11 / VS12 / VS13 Series
VS20 / VS21 / VS22 / VS23 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Advanced Optical Measuring System
The slide carrier of the VS series optical linear scales, use a five bearing design and six spring for optical grating linear transducer, more reliable support bracket system, specially in long dimension scale like the long Lathe machine. The Accuracy is better than the GS20 series long scale.
Double Seals Design
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

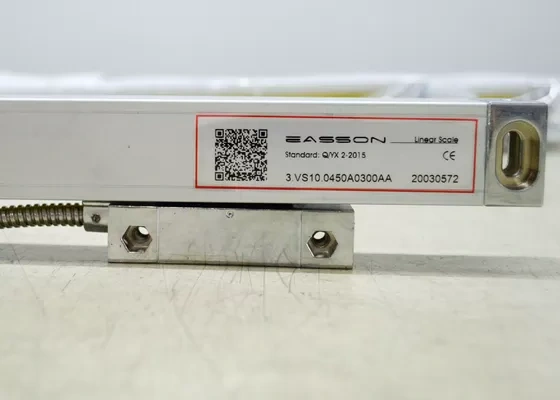

Accuracy report in QR code
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
