| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | VS10 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Plywood Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1500 PCS per Month |
| Name: | Linear Glass Scale | Keyword: | Linear Position Encoder |
|---|---|---|---|
| Meas. Standard: | 0.02 Mm | Meas. Length: | 50-1200 Mm |
| Display Resolution: | 0.005 Mm | Warranty: | 13 Months |
| Power Supply: | DC 5V | Output Signal: | TTL ( A Qual B ) |
| High Light: |
Glass Scale Linear Encoder Cnc,Dro Glass Scale Linear Encoders,Easson VS10 Linear Encoder Resolution |
||

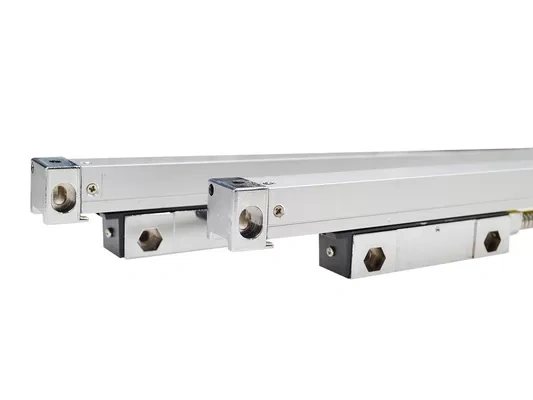

High Accuracy VS Series Linear Encoder With 5um / 1um Resolution For Milling Grinder
Advanced Optical Measuring System
The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, specially in long dimension scale like the large Lathe machine. The Accuracy is better than the GS20 series long scale.
Features:
A). Reader head's slide carrier, use five bearing design and six spring for optical grating linear transducer
B). VS20 series can connect a positive press system to reach waterproof IP65.
C). Moving speed can more than 120m/min.
Aging Test
Easson Optical Linear Scale's reader head sensor need to power on for 72 hours aging test before assemble,
make sure all linear scale's quality is reliable.
Product Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 Series

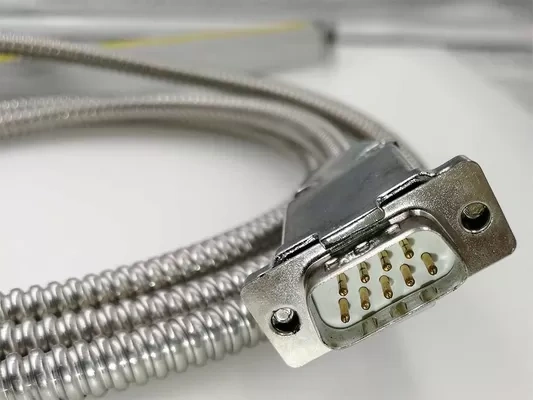

Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
100% Laser calibration
All linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

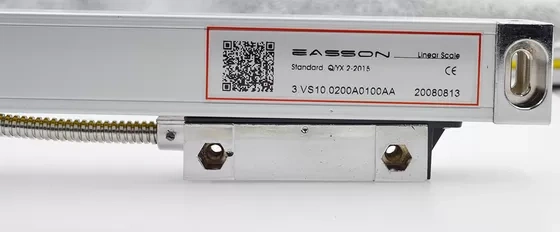

Accuracy report in QR code
Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
