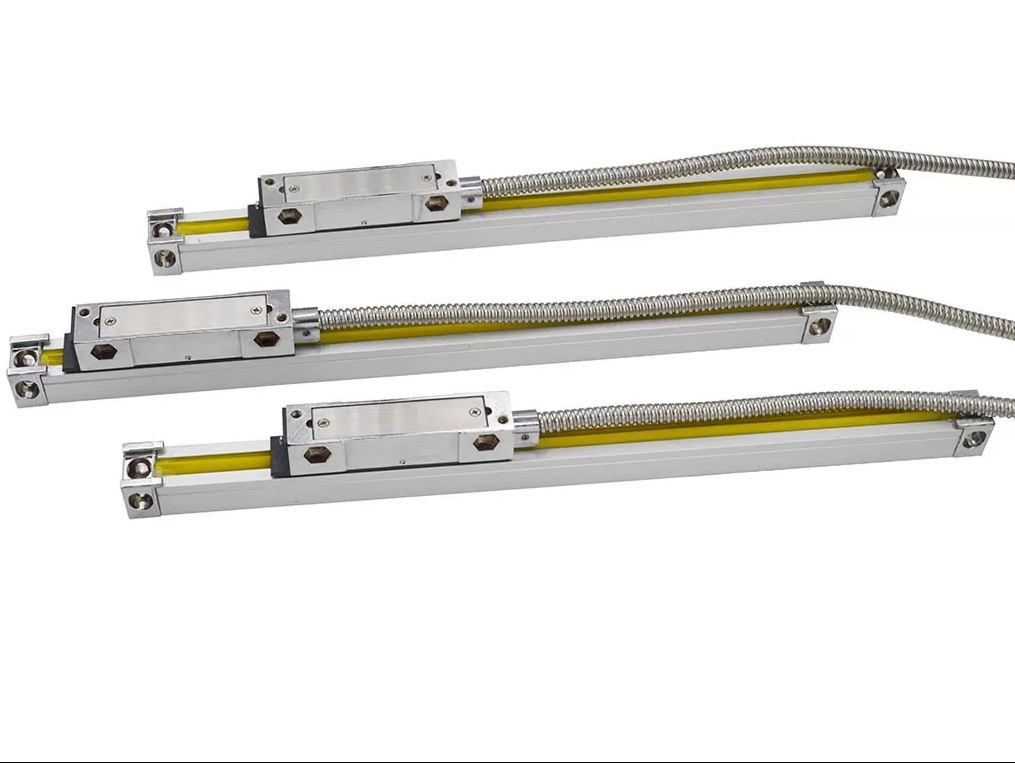

| NAME: | Digital Linear Scale | KEYWORD: | Digital Readout Linear Scale |
|---|---|---|---|
| Meas. Standard: | 0.02 Mm | Meas. Length: | Within 1250 Mm |
| Display Resolution: | 5 µm | Structure: | Vertical 5 Bearings Support System |
| Power: | DC 5V ± 5% | Output Signal: | RS422 |
Product Specification
| VA10 | VA11 | VA12 | VA13 | VA20 | VA21 | VA22 | VA23 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm per length Specification | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm per length Specification | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VA10 / VA11 / VA12 / VA13 Series
VA20 / VA21 / VA22 / VA23 Series
Connector interface
Gold-plated pins to avoid poor connection and Anti-corrosion, it has the small PCB inside the connector which allow the VA series Absolute Linear Scale built in the Laser compensation data and directly connect to our LCD DRO, ensure the high measuring accuracy.
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
Product Description

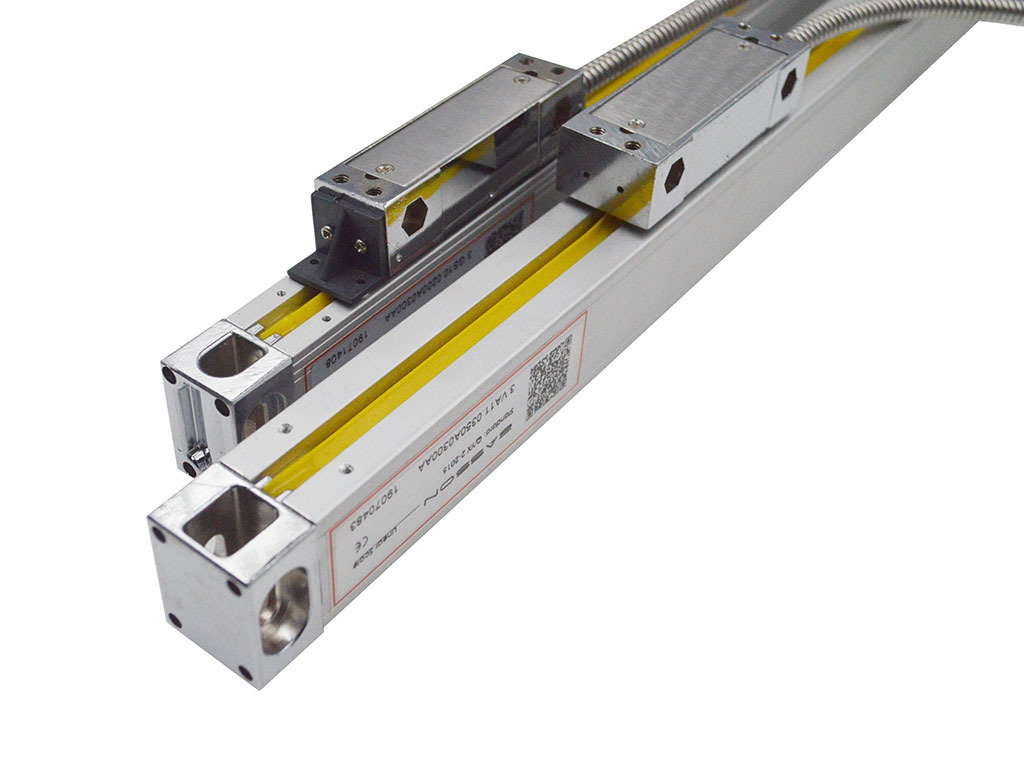

Advanced Optical Measuring System
The VS / VA series scales slide carrier, five bearing design and six spring for optical grating linear transducer, make sure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment.
VA scale has a small PCB inside the 9 PIN connector, the laser compensation data is store inside, with our LCD Digital display unit, the compensation data will directly load the ECF file (compensation file) into the DRO, accuracy up to ±2μm.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
