DTTL CMM Metrology Equipment Exposed Linear Encoders

Name: Measuring Device Keyword: Measuring Products
Output Signal: DTTL Meas. Range: 50 - 3000 Mm
Resolution: 0.02 µm Accuracy: ± 3μm / ±5 μm Within 500 Mm
Material: ABS Plastic Power Supply: DC 5V
  • DTTL CMM Metrology Equipment Exposed Linear Encoders
  • DTTL CMM Metrology Equipment Exposed Linear Encoders
  • DTTL CMM Metrology Equipment Exposed Linear Encoders

Description

Product View

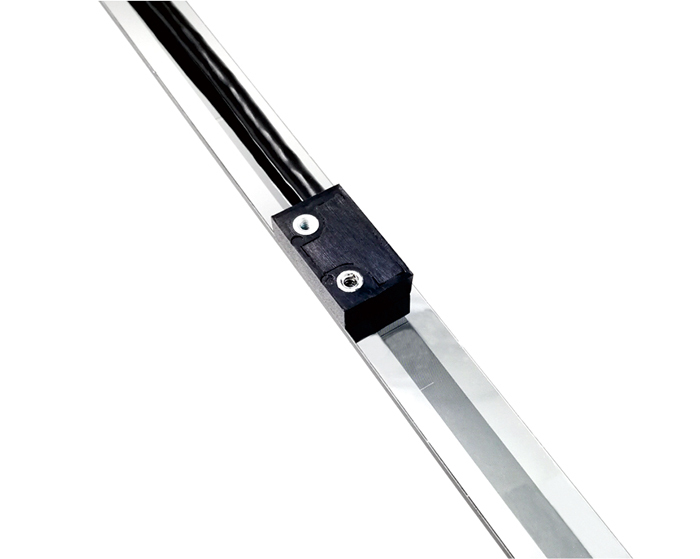

Exposed linear encoder applications in high speed and high accuracy metrology equipment, CNC vision measuring machines, length measuring machine, coordinate measuring machine(CMM), linear motors ... etc.

GS65's unique non-contact compensated Phased Array refelective open grating measuring system offers high precision backlish free position readings.



GS65 High Accuracy Reflective Open Grating Scale Advantage

  • Attain the maximum measuring repeatability that your mechanical structure is designed and constructed for.
  • Offer optimal low-speed, high-precision counting and servo movement control for your machines or linear motors.
  • Smallest grating scales provide two different installation direction

GS65 standard resolution is 0.02μm ( 20 nanometer ), maximum measuring speed up to 180m/min, acceleration up to 4G.



Product Specification



Model GS65
Meas. Standard 80 μm (0.08 mm) pitch grating glass
Meas. System Reflective Phased Array Optics System
Reader Carriage Non-Contact open grating carriage
Resolution 0.02 μm ( 20 nanometer )
Meas. Travel 120mm G1: Standard length: 120 mm, user cut on demand
500mm G2: Standard length: 500 mm, user cut on demand
1000mm G2: Standard length: 1000 mm, user cut on demand
1200 - 3000mm G3: Every 200 mm per specification
Accuracy 50 - 500mm ±3 μm / ±5 μm
550 - 1000mm ±5 μm / ±10 μm
1200 - 3000mm ±10 μm / m
Hysteresis Included in accuracy
Max. Speed 180 m / min
Supply DC 5V ± 5%
Output Signal CPE-bus serial data interface
Output Connector DSUB 9






DTTL  CMM Metrology Equipment Exposed Linear Encoders 0

There are 3 choices of measurement accuracy in GS 65 series, ±3 μm, ±5 μm, ±10 μm.



Installation Dimensions


The compact size of the reader head greatly simplifies and facilitates the installation of your scale. Additionally, you have the option to choose from two different mounting orientations for the reader head housing to suit your specific needs.



TYPE A

DTTL  CMM Metrology Equipment Exposed Linear Encoders 1





TYPE B

DTTL  CMM Metrology Equipment Exposed Linear Encoders 2



Grating Glass Dimension




DTTL  CMM Metrology Equipment Exposed Linear Encoders 3



Glass Dimension High(mm) Thick(mm) Meas. Travel(mm)
G1 6.2 1.0 120
G2 12 2.0 500 / 1000
G3 12 3.0 1200 - 3000


There are 3 types of grating glass dimensions in the GS 65 series, they are 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.

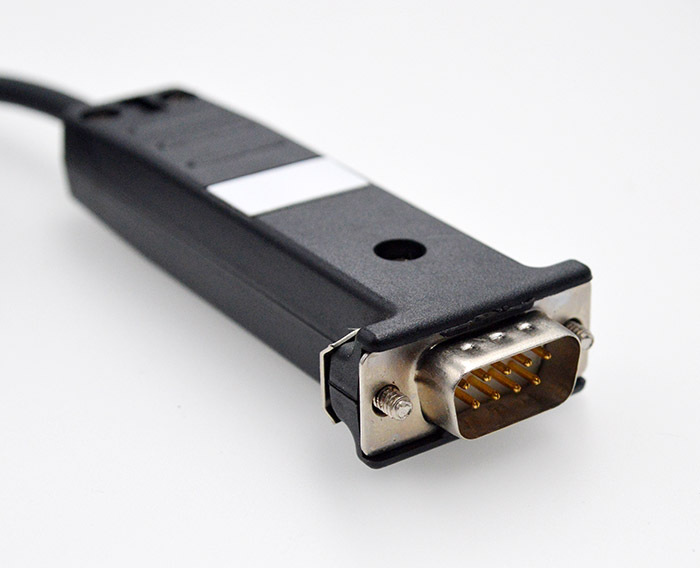

Connector interface


 DSUB 9PIN

DTTL  CMM Metrology Equipment Exposed Linear Encoders 4



PIN TTL
Signal Cable
1 A- Yellow
2 0V White
3 B- Red
4 GND Silver
5 R- Black
6 A Green
7 5V Brown
8 B Blue
9 R Grey



DTTL  CMM Metrology Equipment Exposed Linear Encoders 5
