| Name: | Digital Linear Measurement Tool | Keyword: | Digital Encoders |
|---|---|---|---|
| Power Supply: | AC 110V - 220V | Languages: | 20 Choices |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Gross Wieght: | 3.5 Kgs |
| Output Signal: | TTL |
Product Information

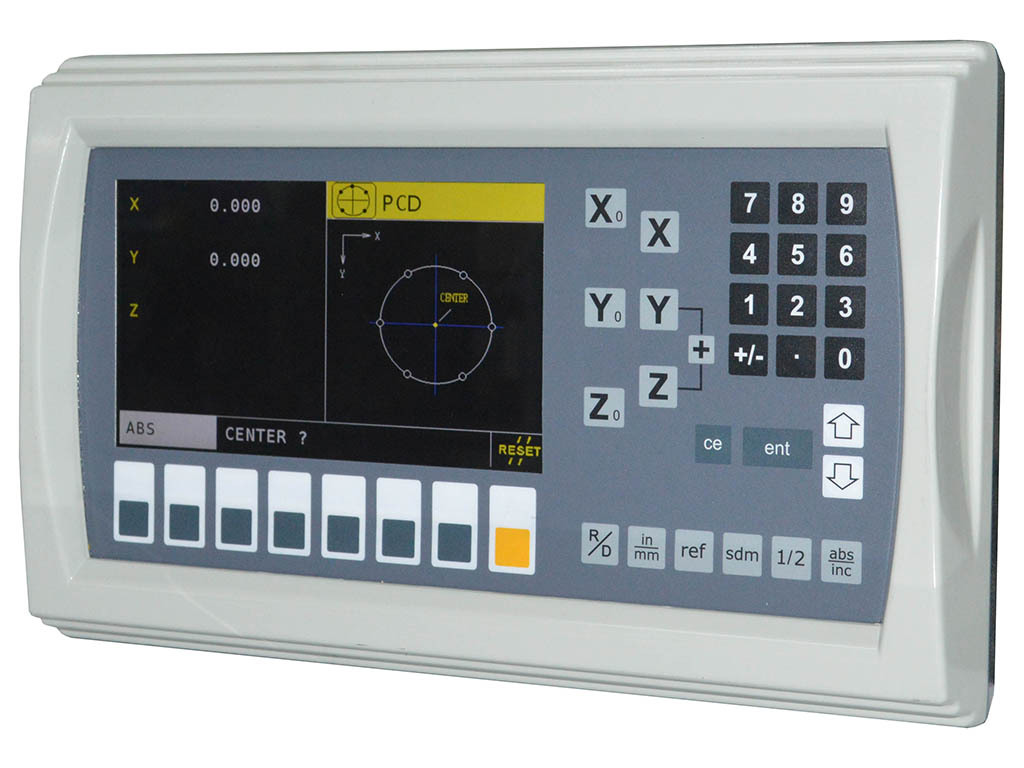

The ES-14B is a practical, multifunctional optical linear scale digital display have been applied to varieties of machine tools like Milling, Lathe, Grinding, Boring machine etc.
By coordinating with linear scales, ES series readouts can accurately display the value of shifting and achieve NC/CNC. You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.
To make the DRO much more user friendly, the display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
Features:
Technical Specification
| Model number | ES-14B | ||
| Axis | 3 Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V / 220 V | ||
| Net Weight (KGS) | 2.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||

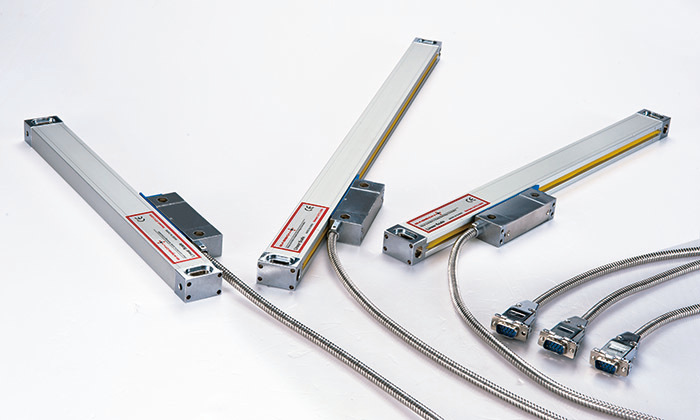

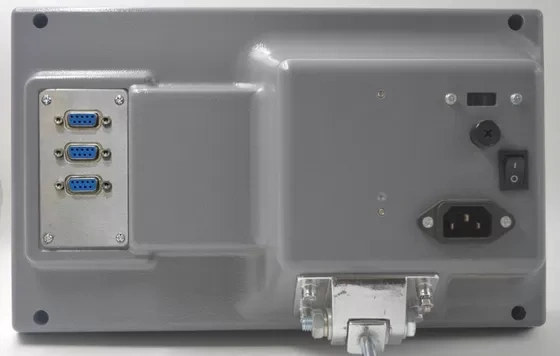

| Inputs | 3 Optical Linear Scales | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
All Easson Digital Readout products need to be passed the EMC specification, we have a complete set of EMC test esd immunity tester to test the electromagnetic compatibility.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Digital Readout System
Basic parameters are included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Axis Speed Display |
| Radius / Diameter |
| Z axis Summation |
DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Easson Measurement Technology Ltd. was established in 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Vision Measuring Systems, profile projector, Digital Readouts(Counter), linear glass scale, CNC linear encoder;
Easson is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
