| Name: | Linear Scale Encoder | Keyword: | Linear Scale Geography |
|---|---|---|---|
| Model No: | GS90 | Brand Name: | Easson |
| Resolution: | 5 µm | Meas. Length: | 50-500 Mm |
| Power: | DC 5V | Output Signal: | TTL |
| High Light: |
Incremental Glass Scale Linear Encoder,Digital Readout Glass Scale Linear,GS90 lcd dro systems |
||

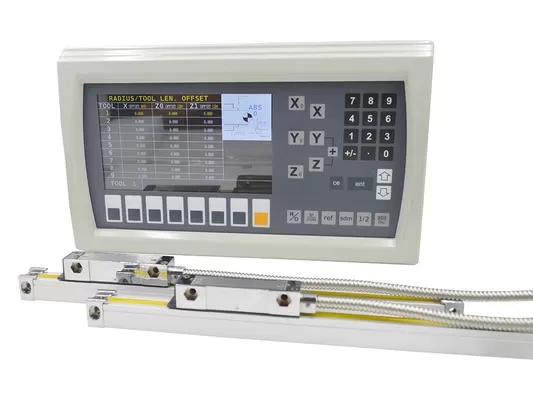

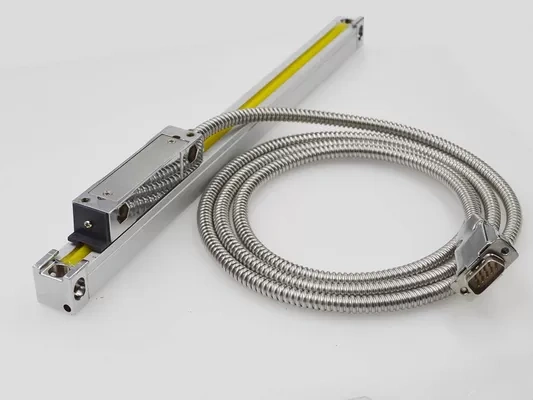

Easson 50 - 500 Mm Digital Readout Incremental Glass Scale Linear Encoder
Product Show
Advanced Optical Measuring System
The slide carrier of GS series linear encoder, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Sealing Lip
GS series linear encoder's sealing lip use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
Product Specification
| GS90 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | |
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | |
| Slide Carrier System | Vertical five bearings supporting system | |
| Resolution | 5μm | |
| Measurement Travel | 50-500mm | Every 50mm per length Spec. up to 500mm |
| Accuracy | 50-500mm | ±10μm |
| Repeatability | 5μm (0.005mm) | |
| Hystersis | 5μm (0.005mm) | |
| Protection | IP 53 | |
| Power supply | DC 5V ± 5% | |
| Output Signal | TTL | |
Installation Dimensions
Connector interface
DSUB 9PIN
| PIN | TTL | |
| Signal | Cable | |
| 1 | —— | —— |
| 2 | 0V | Orange |
| 3 | —— | —— |
| 4 | GND | GND |
| 5 | —— | —— |
| 6 | A | Yellow |
| 7 | 5V | Red |
| 8 | B | Green |
| 9 | R | Brown |
100% Laser calibration
All linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
