Easson 5um Digital Readout Milling Machine Linear Position Encoder

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: ES-14B
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 1000 SETS per Months
  • Easson 5um Digital Readout Milling Machine Linear Position Encoder
  • Easson 5um Digital Readout Milling Machine Linear Position Encoder
  • Easson 5um Digital Readout Milling Machine Linear Position Encoder
  • Easson 5um Digital Readout Milling Machine Linear Position Encoder
Description
Name: Digital Readout Kit Application: Mill, Lathe, Grinder, Boring
Power Supply: 110V - 220V, 50Hz Languages: Chinese, English, German, Spanish, Thai, Hindi
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm Gross Wieght: 3.5 Kgs
Output Signal: TTL Keyword: Milling Machine Dro Kits
High Light:

Milling Machine Linear Position Encoder

,

5um Linear Position Encoder

,

Easson Digital Linear Scales

Easson 5um Digital Readout Milling Machine Linear Position Encoder



Products Description




Optical Linear Encoder Scale 2 & 3 Axis Drilling Milling Machine Lathe Grinder Position Scale With Digital Readout System

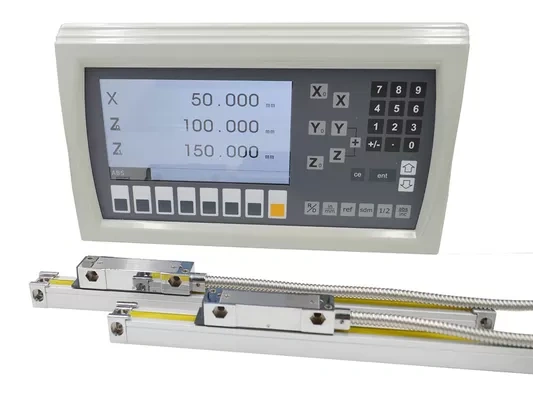

Easson ES14B 3 Axis multi-functional LCD DRO which is used for different machine tool like milling machine, lathe machine, boring machine and grinding machine by setting the parameter in the DRO. It has a lot of graphics processing capabilities. For example, R function, line hole positioning in the milling machine.


Digital Readout System Products Parameter



Model Type ES-14B
Axis number 3 Axis
Axis Display 0.1μm, 0.5μm, 1μm, 5μm
Signal Input TTL
Power Supply AC110 V - 220 V
Net Weight (kg) 2.5
Input frequency 2 MB Hz
Operation Keyboard Light touch buttons
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 2 or 3 linear scale
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5





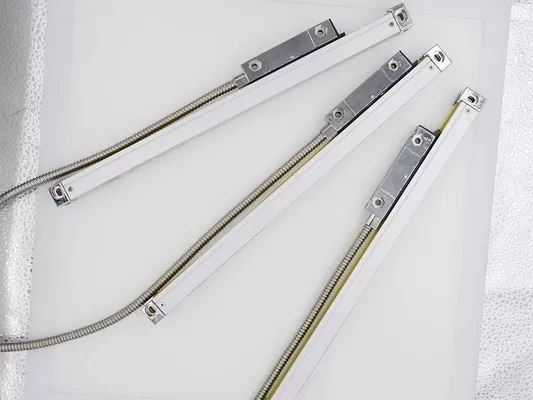

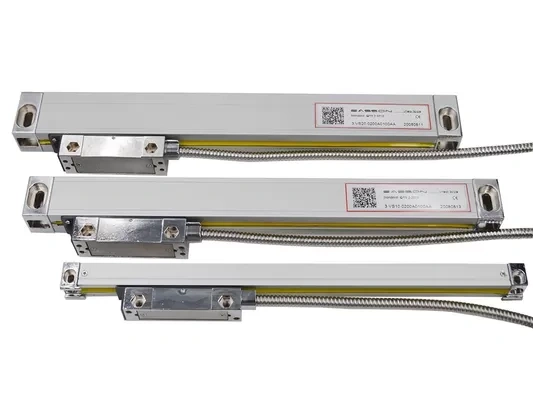

Optical Linear Scale | Linear Scale | Optical Glass Scale Specification





  VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Grating Glass Scale - Grating period:  20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Display Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422








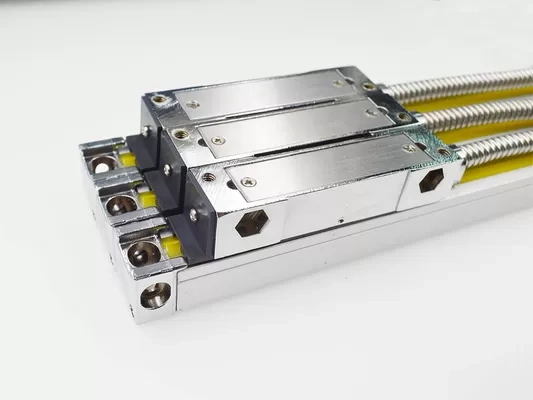

Advanced Optical Measuring System





The slide carrier of the VS / VA series linear encoder, use a five bearing design and six spring for optical grating linear transducer, ensure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment, so that it can reach a higer accuracy than one spring design reader head.







DSUB 9PIN

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey





100% Laser calibration


All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
