Keyword: | Dro Display | Name: | Digital Readout For Constant speed Lathe |
---|---|---|---|
Usage: | Lathe | Languages: | 20 Options |
Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | LCD Size: | 7 Inch |
Power Supply: | 110V / 220V | Output Signal: | TTL |
Product Introduction

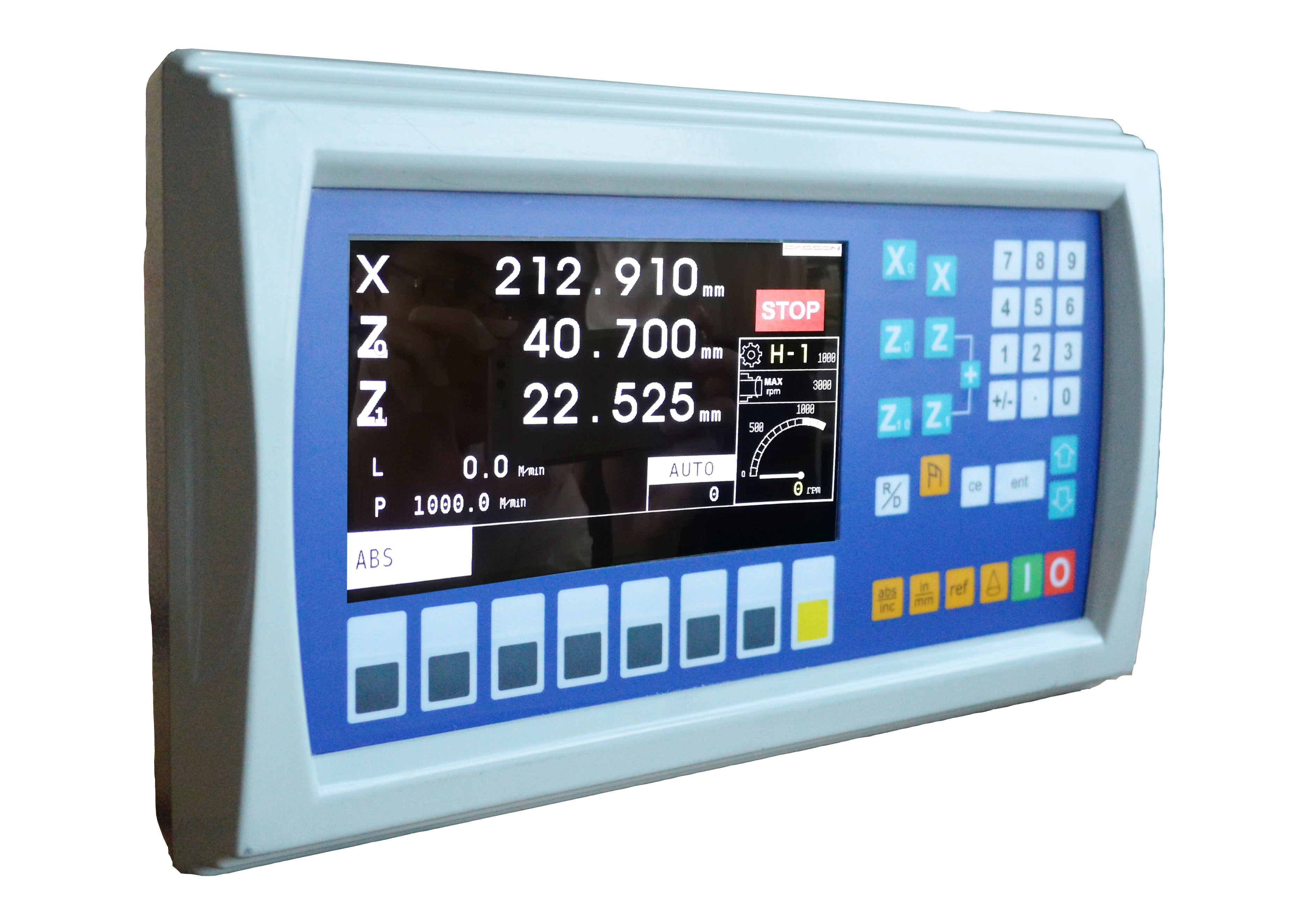

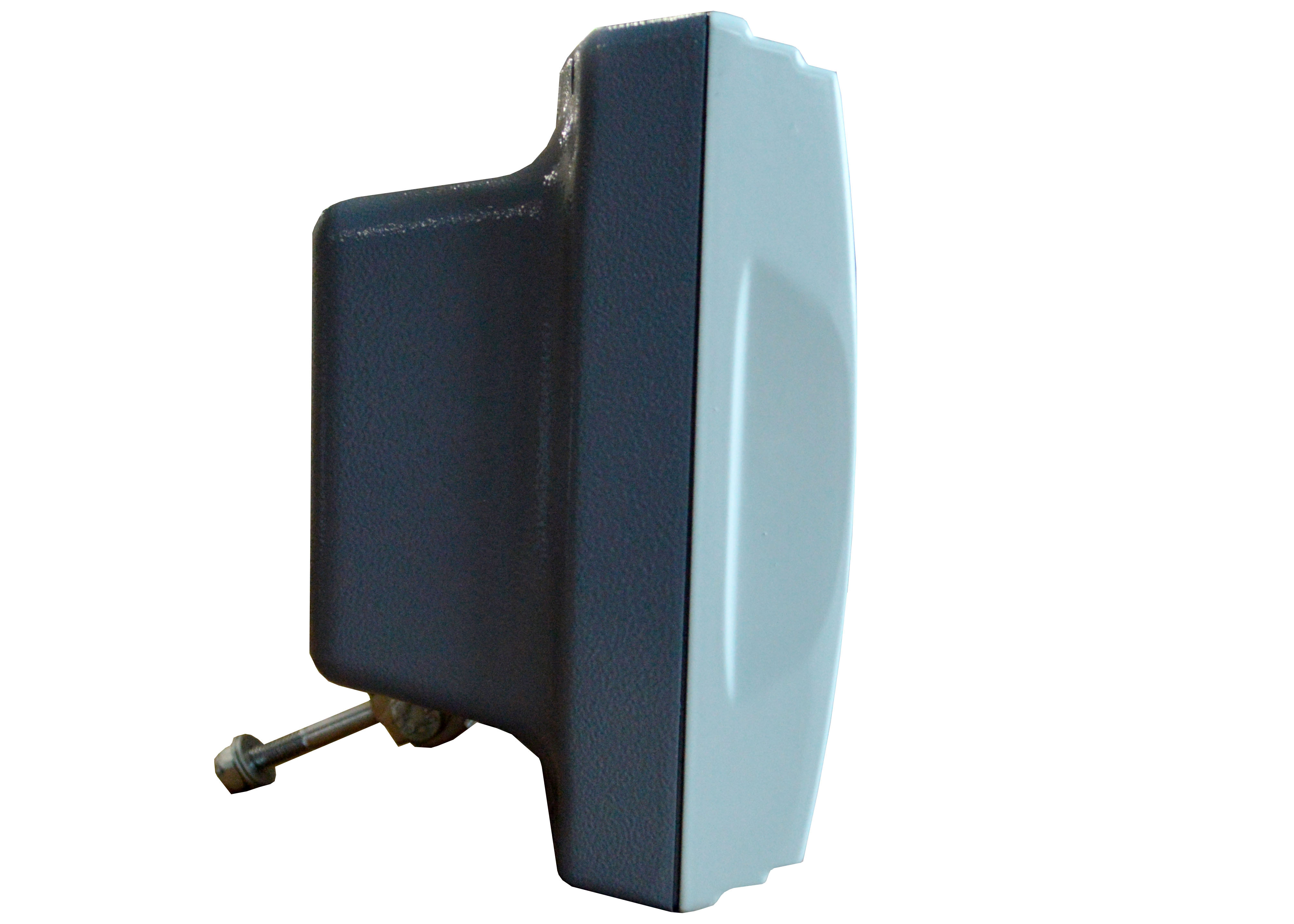

ES14B Constant speed DRO is specially designed to provide precision constant speed control for Lathe application, it is configured according to standard CS lathe hardware as it leaves the factory.
Major Function Keys & Buttons
The ES14B CS features a 0 - 10V output for the spindle inverter, enabling direct control over the spindle's rotational speed. By using the speed adjustment button, the operator can manually alter the spindle speed to optimize the machining surface finish.
ES14B CS provides the axis summing function for the Z and Z1 axis, operator can swap between the summed display or individual axis display by just a simple single button key press.
Technical Specification
Model Number | ES14B CS | ||
Axis number | Four Axis | ||
Axis Display | 1μm, 5μm | ||
Signal Input | A / B quadrature signal | ||
Power Supply | 110 Voltage - 220 Voltage | ||
Weight (kg) | 2.5 | ||
Maximum input |
2 MB Hz | ||
Operating temperature | 0℃ - 45℃ | ||
Storage temperature | -40℃ - 55℃ | ||
Relative humidity | ≤ 95% | ||
Inputs | 2 or 3 linear encoders | ||
EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
EMC Testing equipment

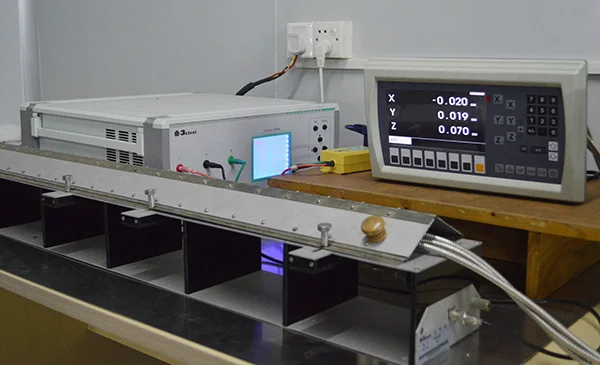

To Make sure Easson DRO products meet the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.
Aging Test

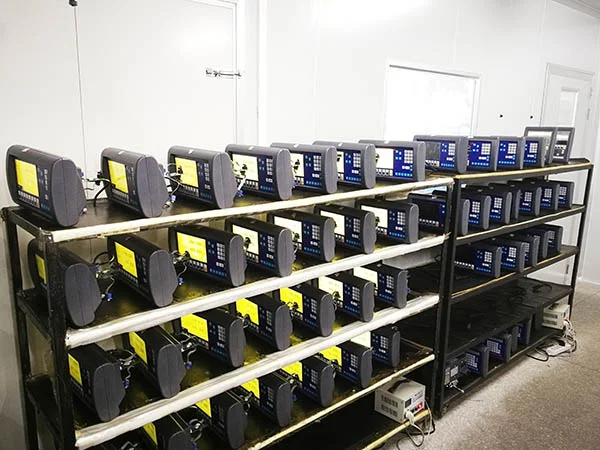

Aging test can verify products of the process, design, material and other aspects are defective or not. We can using this testing promptly revises the product design to improve product quality and service life.
Digital Readout System
Basic parameter in the ES-14B is included as below:
Centering (1/2) |
Radius / Diameter for each axis |
Metric / inches Display (mm / Inch) |
Absolute / incremental (ABS / INC) |
Power off Memory (30 subdatums) |
199 subdatum |
Reference Memory (REF) |

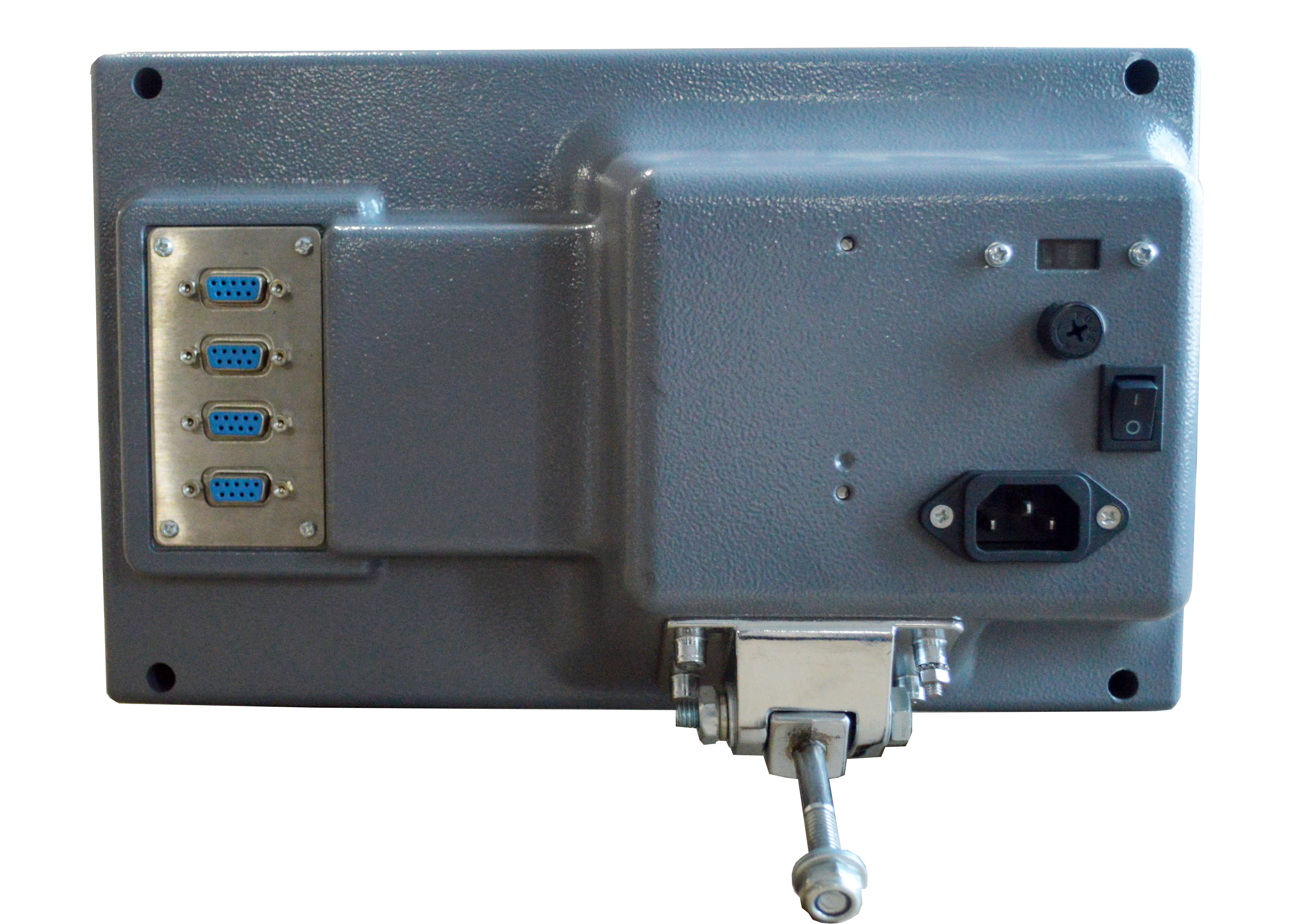

Connector interface
PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
Cable | --- | Orange | --- | Ground | --- | Yellow |
