| Name: | Digital Position Readout | Keyword: | Digital Readout Display |
|---|---|---|---|
| Color: | Grey | Shell: | Aluminum |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Application: | Milling, Lathe, Grinder, Boring, Wire Cut |
| Power: | 110V / 220V | Output Signal: | TTL |

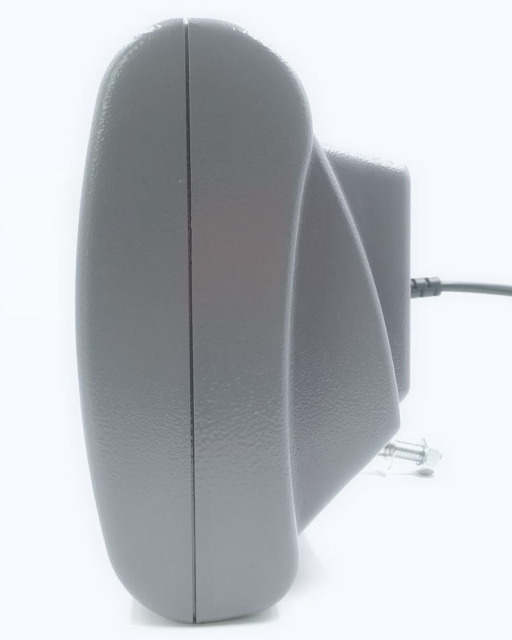

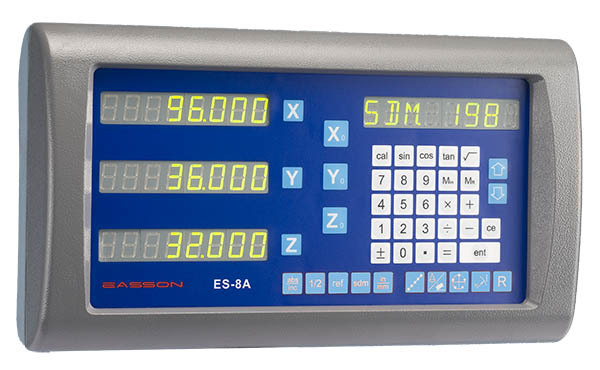

Product Introduction
The ES-8A series represents a comprehensive function readout system from Easson. Its core design philosophy is centered on delivering the most noise-resistant readout systems available. Additionally, it offers precise, application-specific functions tailored for a wide range of general and specialized machines, aiming to maximize machining precision and efficiency.
The Autotex is used as the key membrance of ES series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.
Ultra Low Temperature Rise Transformer
Easson Digital readout system's power supply use a voltage switch linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
EMC Testing equipment
Easson DRO products need to pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.
Technical Specification
| Model Number | ES-8A | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | A / B quadrature signal | ||
| Voltage Range | AC110 V - 220 V / 50Hz - 60Hz | ||
| Weight (kg) | 3.5 | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 linear encoders | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Clear Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Inclined Machining |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
ES series DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine

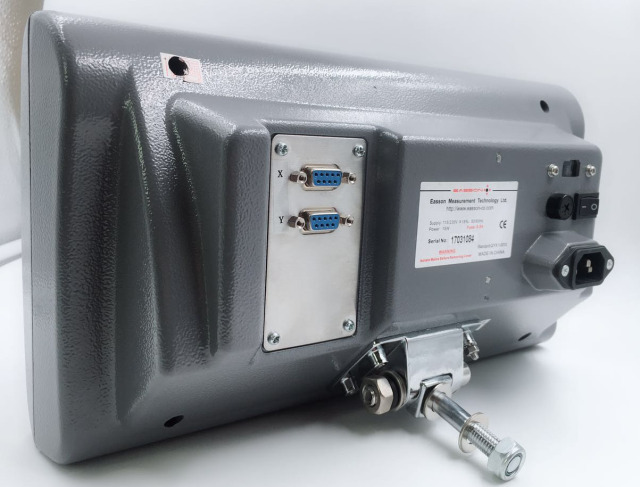

Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
