| Name: | Machine Vision Inspection | Keyword: | Machine Vision Inspection Systems |
|---|---|---|---|
| Accuracy: | (1.5+L/200) µm | Application: | Mobile Phone, Molds, Metals, Plastic, Electronics |
| Operation Mode: | X Y Axis Manual, Z Axis Auto | Resolution: | 0.01 μm |
| Lighting: | Eight Areas Light Source | Measuring Range: | 300 X 200 X 200 Mm |

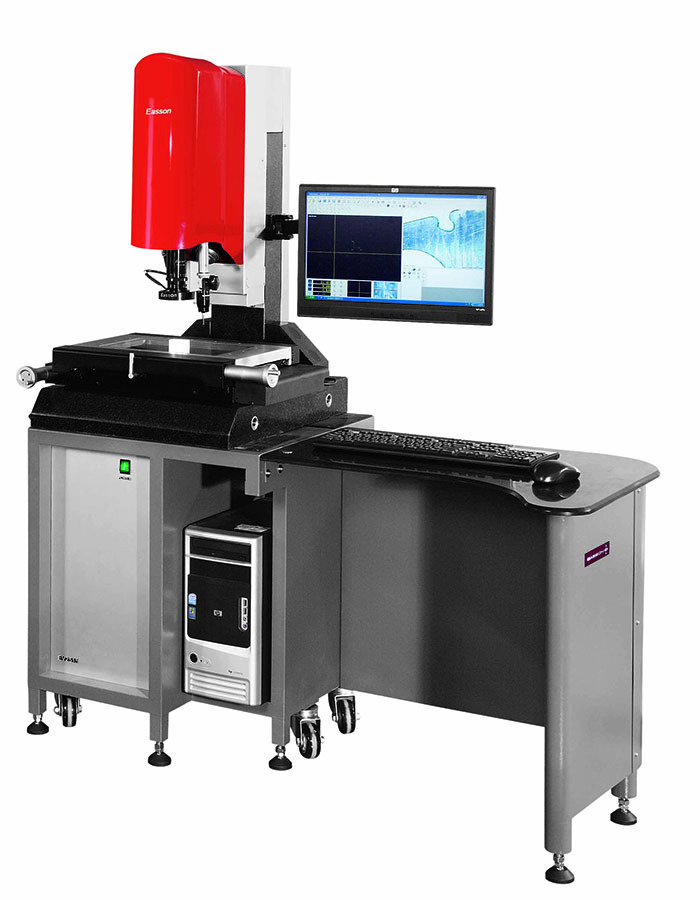

Product Introduction
Technical Specification
| Model | 2515 | 3020 | 4030 |
| Measuring Range(mm) | 250×150×150 | 300x200x200 | 400x300x250 |
| Overall Dimension (mm) | 1000×600×1400 | 1200x720x1600 | 1200x720x1600 |
| Work Table Glass Size(mm) | 289x189x10 | 339x239x10 | 439x339x12 |
| Weight (kg) | 170 | 280 | 410 |
| Max Table Load(kg) | 20 | 20 | 20 |
| Measurement Accuracy (μm) | 1.5+L/200 | ||
| Repeatability(mm) | 0.002 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | XY Axis manual, Z Axis automatic | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
1. The X / Y / Z three axes of the Absolute Linear Scale is developed by ourselves, with a resolution of up to 0.01 micron
2. F3 high precision closed loop auto zoom lens.
3. The dedicated motion controller of Vision measuring machine using Ethernet transmission, which is efficient and stable, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor for global shutter image processing, make the image is clear and without smearing.

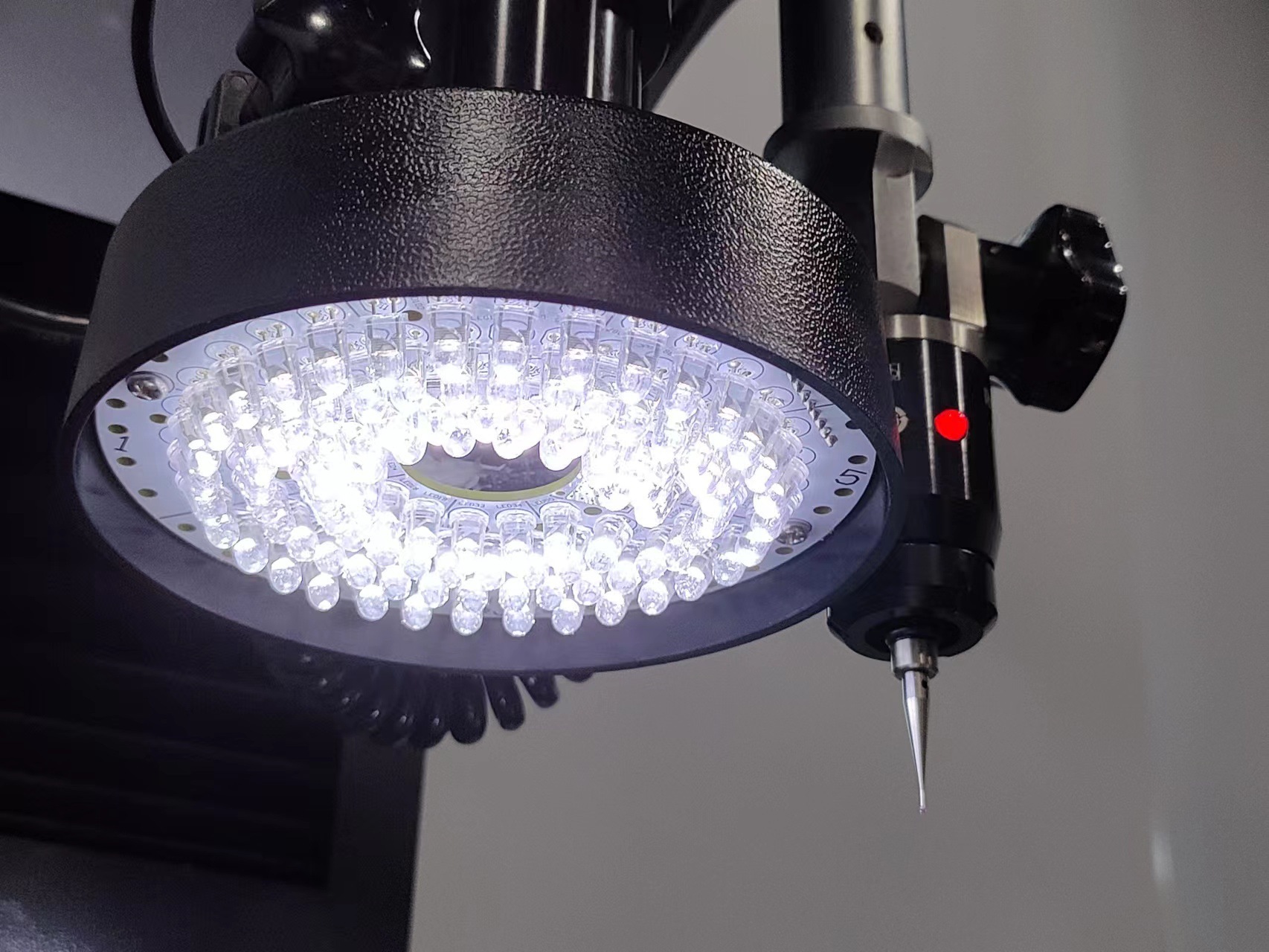

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED for long service life.
6. Independently developed multi-function measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
Products

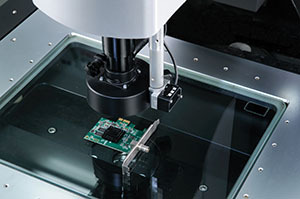

F3 high precision closed loop auto zoom lens
With the high-precision, high-resolution ring scale developed and designed by Easson for F3 lens, full closed-loop position feedback.
Thanks to the high-resolution and full-closed position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
In addition, the resolution of the ring grating scale is 20 times higher than that of the previous generation zoom lens.
21 Orders volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra-high-speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
Case Analysis
Subtle precision parts inspection, such as watch movement

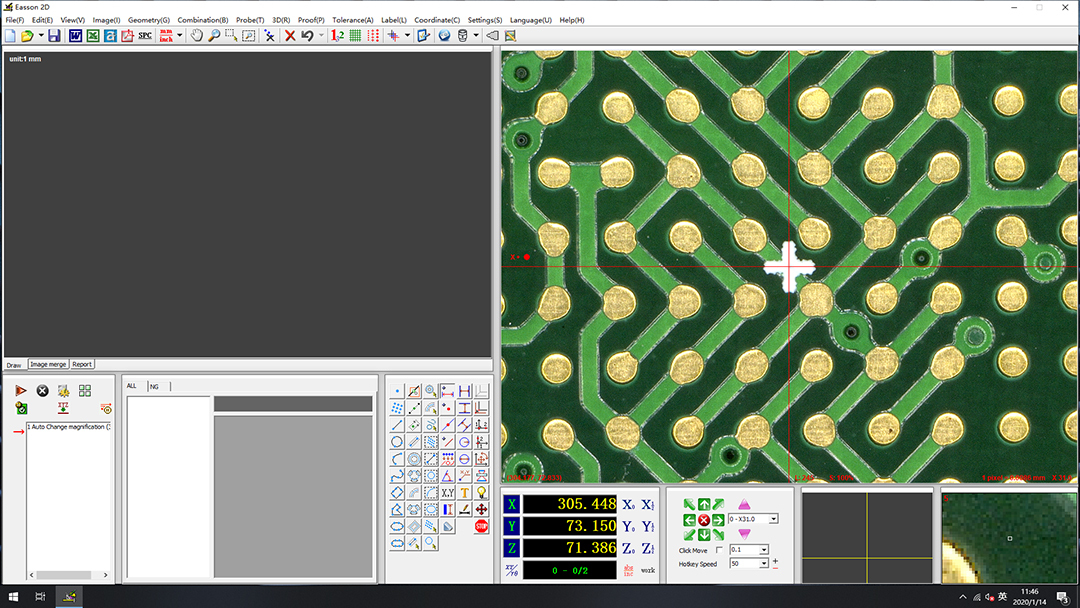

Thanks to the High accuracy auto zoom lens and Camera, also powerful 2D measurement software, it can recognize the image outline easily and correctly. After measuring the parts, you can export the results in AutoCAD files, then compare with the original design diagram.
2D / 3D Multiple Measurement

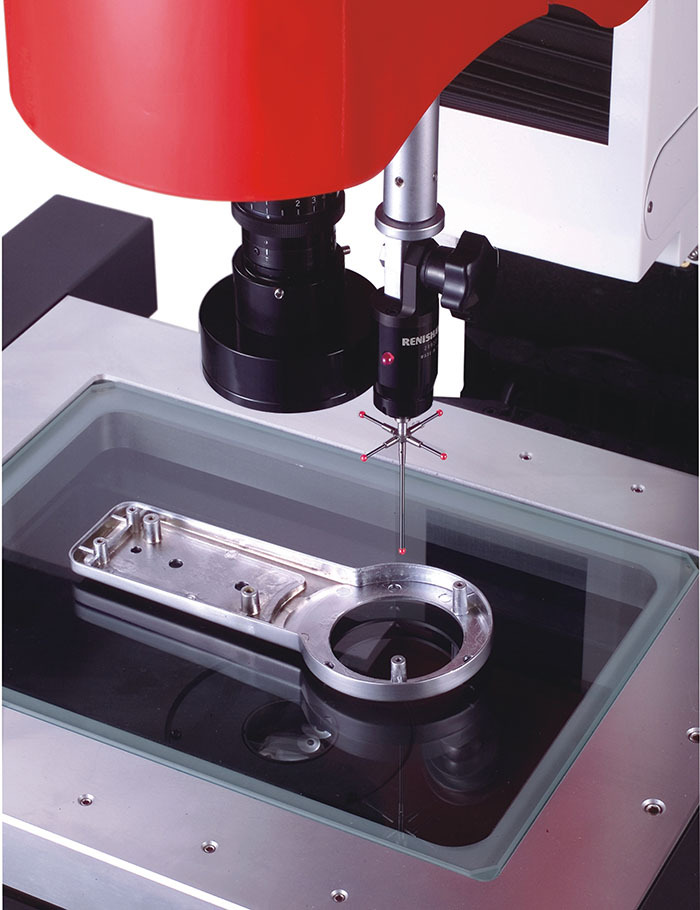

Easson three series of vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement. The 3D measurement of the probe can be mixed with the 2D measurement of the imaging system. The same coordinate system is used for 2D / 3D measurement in perfect and easy combination.
