| Meas. Range: | 150 X 100 X 90 Mm | Accuracy: | ( 3+ L/100) μm |
|---|---|---|---|
| Optical Lens: | 10X, 20X, 50X In One Option | Display Resolution: | 0.001mm |
| Power Supply: | AC 220V | Angular Resolution: | 0.01 |

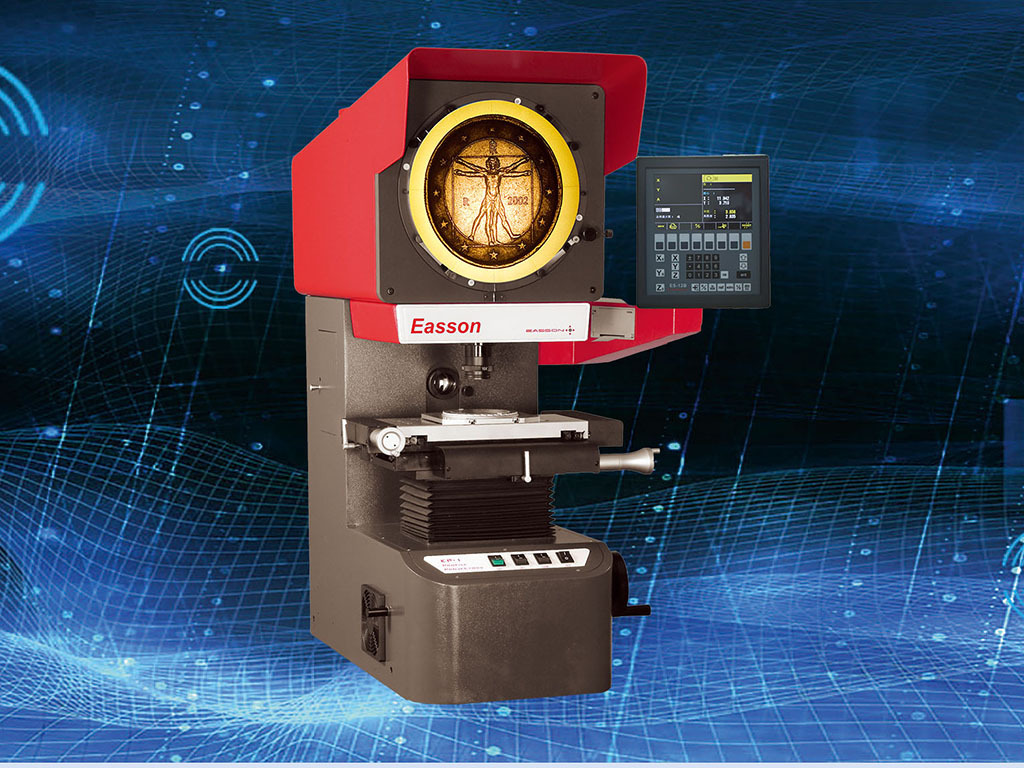

Easson Factory High Accuracy Optical Measurement Inspection System Profile Projector
Product Description
EP series Optical Profile Projector operating principle

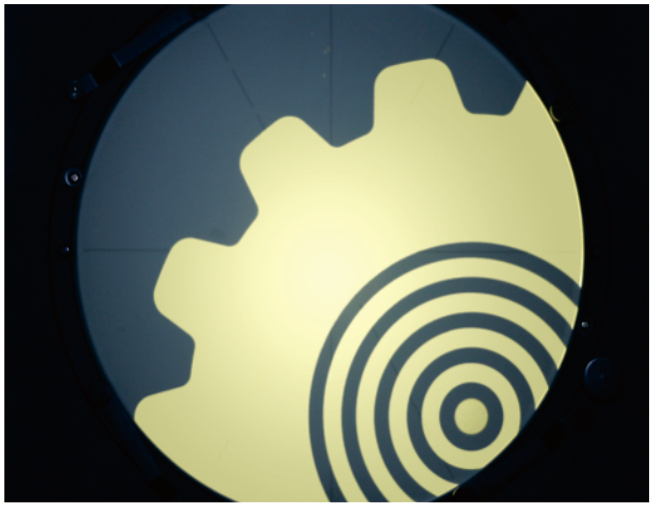

A work piece Y is placed on the table surface, there is an parallel ray illumination system S1 in below the work piece, the light from lamp S1 is made to be a parallel ray by the optical system K1 & C1, then the image of the work piece Y is precisely projected to a precision magnification lens O, the image then reflects through two flat mirror M1 and M2, finally projected to the screen P and become a magnified image Y'.
Since the magnified image Y' is highly precise in dimensions, operator can measure the magnified image Y' by a glass grating scale to know the dimensions of the workpiece Y.
EP series profile project equipped with a high precision digital readout system in the XY table which enable operator direct readout the dimension of the work piece with the assistance of magnified image.
Profile projector parts sketch map
Robust friction transmission system
To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.
High precision linear guideway
high precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.
High stability machine casting
To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.
EP-1 Profile projector Accessories
Technical Specifications
| Model | EP-1510 | EP-2010 | EP-2515 |
| Table dimension | 300x170mm | 350x170mm | 420x250mm |
| Glass dimension | 175x127mm | 225x120mm | 290x190mm |
| X Axis travel | 150mm | 200mm | 250mm |
| Y Axis travel | 100mm | 100mm | 150mm |
| Z Axis travel(Focusing) | 90mm | ||
| X, Y axis display resolution | 0.001mm | ||
| Accuracy | (3+L/100)um | ||
| Angular measurement | 0 ~ 360° | ||
| Angular resolution | 0.01° | ||
| Contour distortion | 0.08% | ||
| Screen diamater | 315 mm | 415 mm | |
| lens magnification | 10X, 20X, 50X,one choice | ||

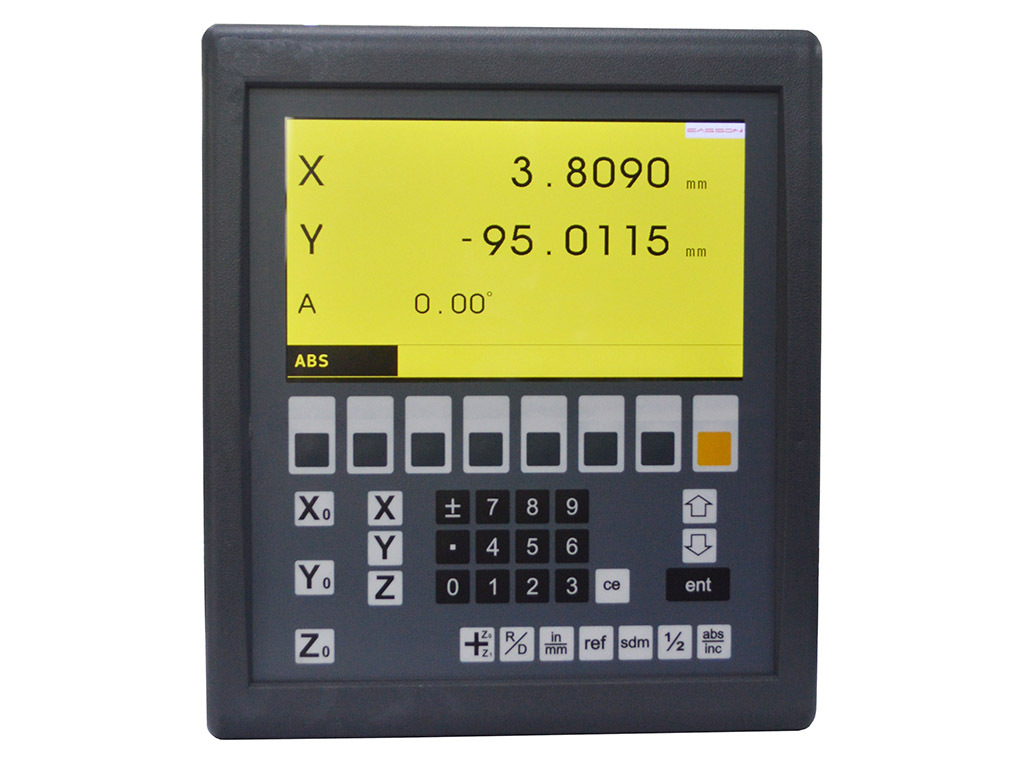

| Digital readout | ES - 12B | ||

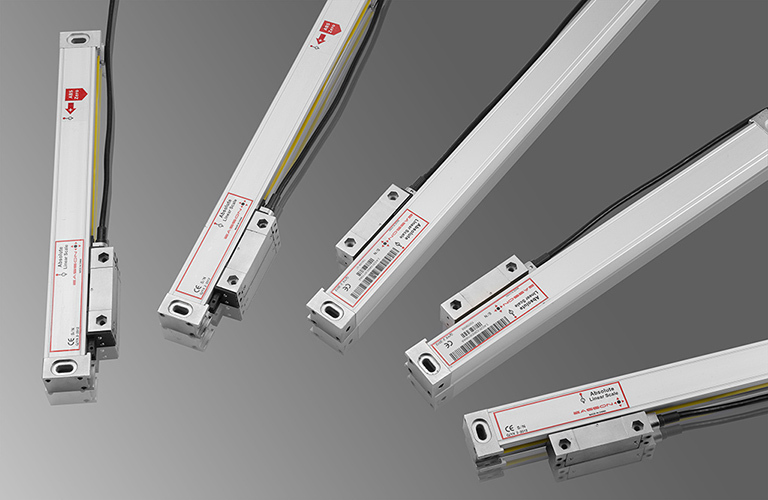

Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Video Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC linear encoder;
Easson have actively participated in standard committee's work, seriously work together with other pioneering companies in this industry to boost the development of this industry in China.
Easson is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
