| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | GS90 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 PCS per Month |

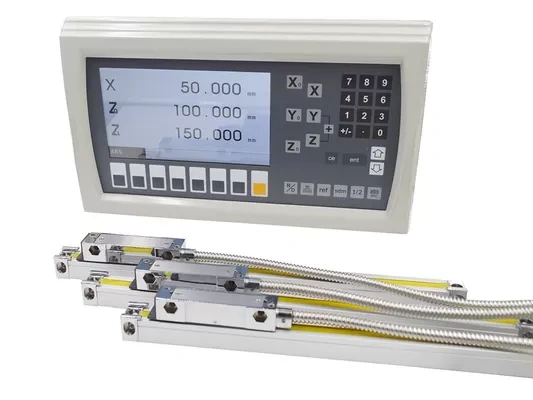

Easson Micro Linear Encoder Scale for Micro Milling And Lathe Machine
For typical applications of manual machine tools such as milling or lathes, resolution 10 μm or 5 μm is sufficient to meet the application requirements. The linear encoders of the GS10 and VS10 series provide such a resolution with an accuracy class of ± 10 μm within 1meter travel range.
Advanced Optical Measuring System
The GS series scales's slide carrier , use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Sealing Lip
The plastic seals of GS series linear encoder use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
| GS90 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | |
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | |
| Slide Carrier System | Vertical five bearings supporting system | |
| Resolution | 0.005mm | |
| Measurement Travel | 50-500mm | Every 50mm per length Spec. up to 500mm |
| Accuracy | 50-500mm | ±10μm |
| Repeatability | 5μm (0.005mm) | |
| Hystersis | 5μm (0.005mm) | |
| Protection | IP 53 | |
| Power supply | DC 5V ± 5% | |
| Output Signal | TTL | |
Installation Diagram
Connector interface
DSUB 9PIN
| PIN | TTL | |
| Signal | Cable | |
| 1 | —— | —— |
| 2 | 0V | Orange |
| 3 | —— | —— |
| 4 | GND | GND |
| 5 | —— | —— |
| 6 | A | Yellow |
| 7 | 5V | Red |
| 8 | B | Green |
| 9 | R | Brown |

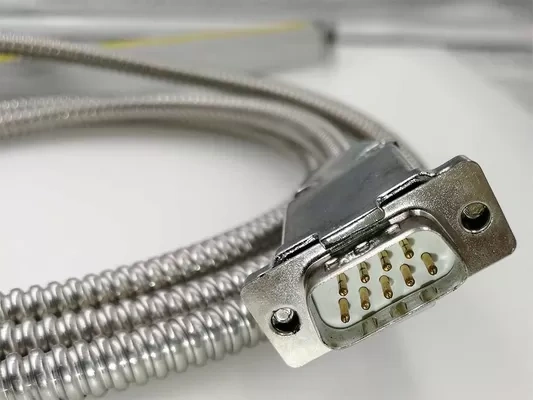

Linear scale connectors use gold-plated pins to avoid poor contact,ensure it will not rust for long time usage.
100% Laser calibration
Easson each linear encoder are undergone rigorous calibrated by our in-house laser interferometer, and can provide accuracy test reports to ensure product quality and quality traceability.
Accuracy report
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
