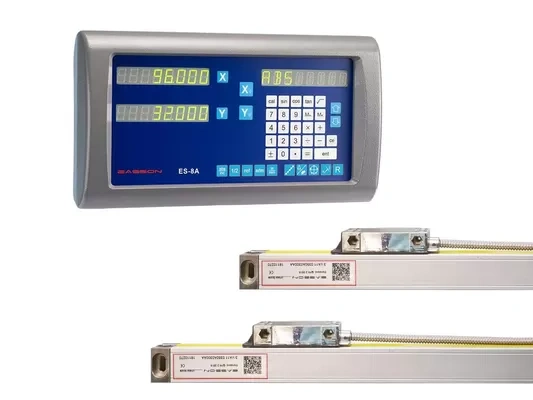

Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: VS21
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood Case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1500 PCS per Month
  • Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography
  • Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography
  • Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography
Description

Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography

Description
Name: Dro For Lathe Machine Keyword: Dro Readout
Meas. Standard: 0.02 Mm Meas. Length: 1300-3000 Mm
Display Resolution: 0.001mm Warranty: 13 Months
Power Supply: DC 5V Output Signal: TTL ( A Qual B )
High Light:

0.001mm Linear Glass Scale

,

Easson VS21 Linear Glass Scale

,

Easson VS21 Glass Encoder

Easson VS21 0.001mm IP65 digital Optical Linear Glass Scale geography



Product Specification






  VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Glass Scale - Grating period:  20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422





Installation Dimensions




VS20 / VS21 / VS22 / VS23 Series





Connector interface




DSUB 9PIN

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey





DIN 7PIN


PIN Cable TTL
1 Orange 0V
2 —— ——
3 Yellow A
4 Green B
5 Red 5V
6 Brown R
7 Ground GND
Case Ground GND





Product Description






Advanced Optical Measuring System



Features:

1. The slide carrier of the scales, use a five bearing design and six spring for optical grating linear transducer

2. Can connect a positive press system to reach waterproof IP65.

3. Moving speed can more than 120m/min.





Aging Test



Easson Optical Linear Scale's reader head need to power on for 72 hours aging test before assemble,

make sure all linear scale's quality is reliable.





100% Laser calibration

All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.





Accuracy report in QR code




Each linear scale is printed with a QR code for the accuracy measurement report of the factory inspection, ensure all the linear scale match our accuracy grade.
