| Name: | 3 Axis Digital Readout | Keyword: | Bridgeport Dro |
|---|---|---|---|
| Color: | Grey | Material: | Aluminum Shell |
| Display Resolution: | 0.1 µm, 0.5 µm, 1 µm, 5 µm | Applications: | Milling, Lathe, Grinder, Boring Machine, Wire Cut |
| Power Supply: | 110V / 220V | Output Signal: | TTL |
Product Features
ES series DRO feature:
The Autotex is used as the key membrance of ES series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.
Ultra Low Temperature Rise Transformer
Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC testing.
To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
EMC Testing equipment
To ensure all Easson's DRO products can be pass the standard EMC testing, we have a complete set of EMC test esd immunity tester.
Make sure the digital readout system have been to conforms to relevant standards for EMC as details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Technical Specification
| Model number | ES-8C | ||
| Axis | Three Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Output | TTL | ||
| Voltage | AC 110 V - 220 V / 50Hz - 60Hz | ||
| Weight(KG) | 3.5 | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||

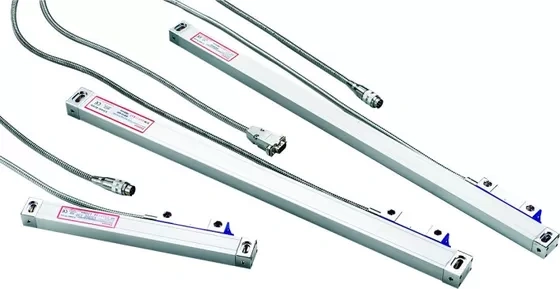

| Inputs | 3 Linear Transducer | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 |
||
Basic parameter is included as below:
| Radius / Diameter |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Clear Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
|
Z Axis Summation |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
ES series DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
