Description

Product Specification



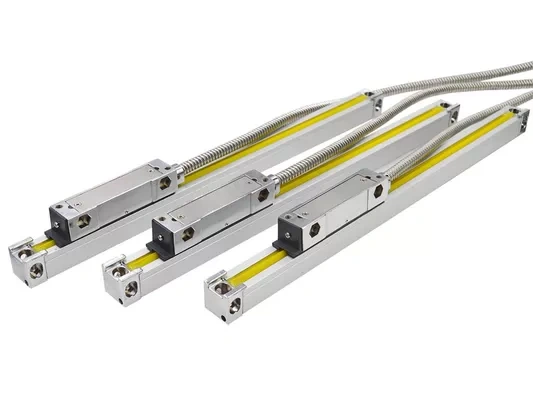

  GS90
Measuring Standard Glass Scale - Grating period:  20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Resolution 0.005mm
Measurement Travel 50-500mm Every 50mm per length Spec. up to 500mm
Accuracy 50-500mm ±10μm
Repeatability 5μm (0.005mm)
Hystersis 5μm (0.005mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL



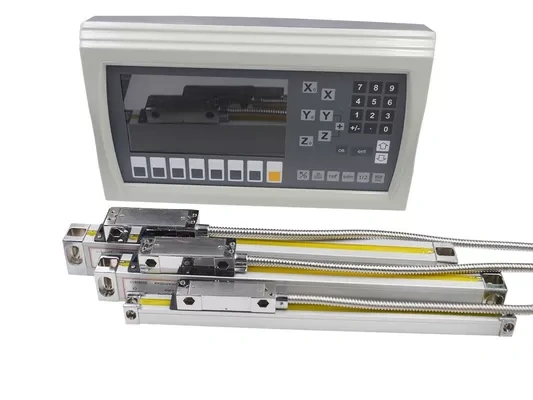

Most modern linear scales are digital and come with an LCD display that shows a clear and exact read. Linear scales provide a very specific service. These measurement tools offer a clear read on the distance between two points by reading the motion along the path of the scale. In this way, linear scales can provide the exact dimensions of workpieces so that they can be worked on properly. By obtaining and maintaining the exact measurement with a linear scale, one can ensure that the workpiece sits properly in a machine tool, which ensures accuracy in manufacturing.






 Installation Diagram




Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 0






 Connector interface




DSUB 9PIN

Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 1

PIN TTL
Signal Cable
1 —— ——
2 0V Orange
3 —— ——
4 GND GND
5 —— ——
6 A Yellow
7 5V Red
8 B Green
9 R Brown



Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 2

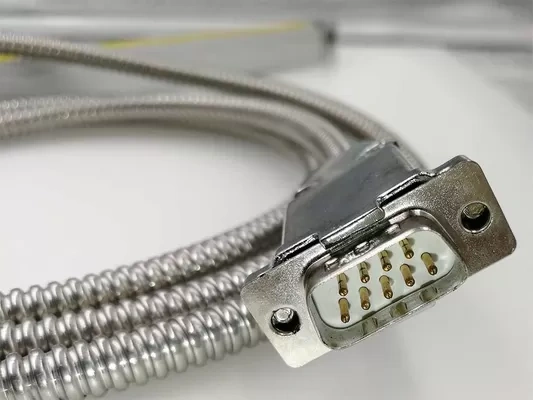

Linear encoder connectors use gold-plated pins to avoid poor contact,ensure it will not rust for long time usage.




 Product Description


Advanced Optical Measuring System

Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 3



The GS series scales's slide carrier , use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.



Sealing Lip

The plastic seals of GS series linear encoder use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.



100% Laser calibration

Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 4

All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.



Accuracy report

Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.



Glass Easson Linear Scale , DC 5V Drilling Machine Miniature Linear Encoder 5

FAQ:




Q1: Did you accept OEM customized service?

A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.



Q2: What is your company mainly produce?

A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale.



Q3: Are the Length of this model has 1000mm?

A: Normally, GS90 series only available for the length 50 to 500mm, we don't suggest using this model for long dimension measuring
due to its thin scale body structure(Insufficient rigidity).



Q4: How can I identify Easson GS10, GS30 , GS90 , VS10 and VS20 model?

A: We has the product code label stick on the scale body, also each model deimension is different. For their structure, GS series using a
five bearing design and one spring for Optical grating linear scale's carrier;But for VS series, it is totally different with GS which it has 6
spring push & pull structure, more accuracy than GS scale.



Q5: How long dimension for the linear encoder scale you can produce?

A: Up to now, we can produce the maximum 3000mm long glass scale.



Q6: How long can you provide the products warranty?

A: We can provide 13 months warranty. (From the date of shipment.)
