| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | ES-14B |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 SETS per Months |
| Name: | Lathe Machine Dro | Keyword: | Lcd Dro |
|---|---|---|---|
| Application: | Mill, Lathe, Grinding, Boring Machine | Power Supply: | 110V - 220V, 50Hz |
| Languages: | Chinese, English, German, Spanish, French, Arabic | Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm |
| Gross Wieght: | 3.5 Kgs | Output Signal: | TTL |
| High Light: |
Easson Optical Linear Encoder,ES 14B Optical Linear Encoders,0.1micron Glass Scale Dro |
||

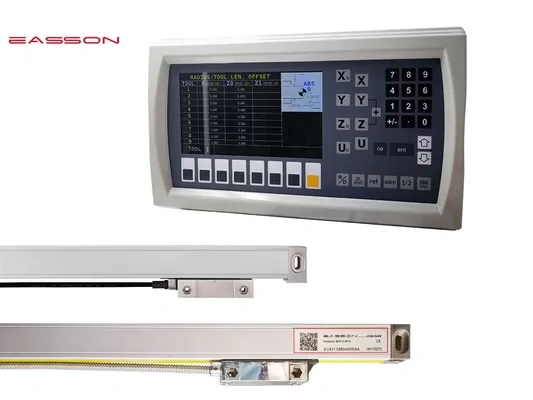

Dro Easson 3 Axis LCD Aluminum Shell Optical Linear Encoders
ES-14B has a 7 inch color LCD screen, to Make it more user friendly, the display message can be configured to one of the following languages:
1. ENGLISH, 2. CHINESE, 3. GERMAN, 4. SPANISH, 5. ITALIAN, 6. PORTUGUE, 7. ARABIC, 8. CZECH, 9. FRENCH, 10. HINDI, 11. INDONESIAN, 12. JAPANESE, 13. KOREAN, 14. PERSIAN, 15. ROMANIA, 16. RUSSIAN, 17. SWEDEN, 18. THAI, 19. TURKISH, 20. VIETNAMESE
Digital Readout Products Parameter
| Model Number | ES-14B | ||
| Axis number | 3 Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Power Supply | AC110 V - 220 V / 50Hz - 60Hz | ||
| Net Weight (kg) | 2.5 | ||
| Input frequency | 2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 optical linear scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Advanced Optical Measuring System
Features:

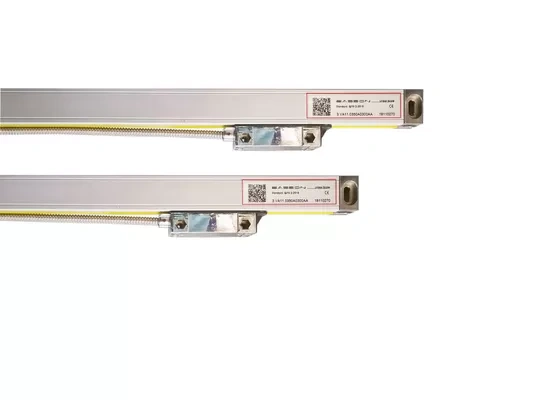

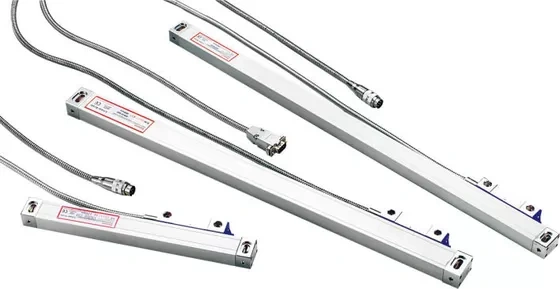

Optical Linear Scale | Linear Scale | Optical Glass Scale Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Grating Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Display Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 / VS11 / VS12 / VS13 Series
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
100% Laser calibration
All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
