Product Introduction

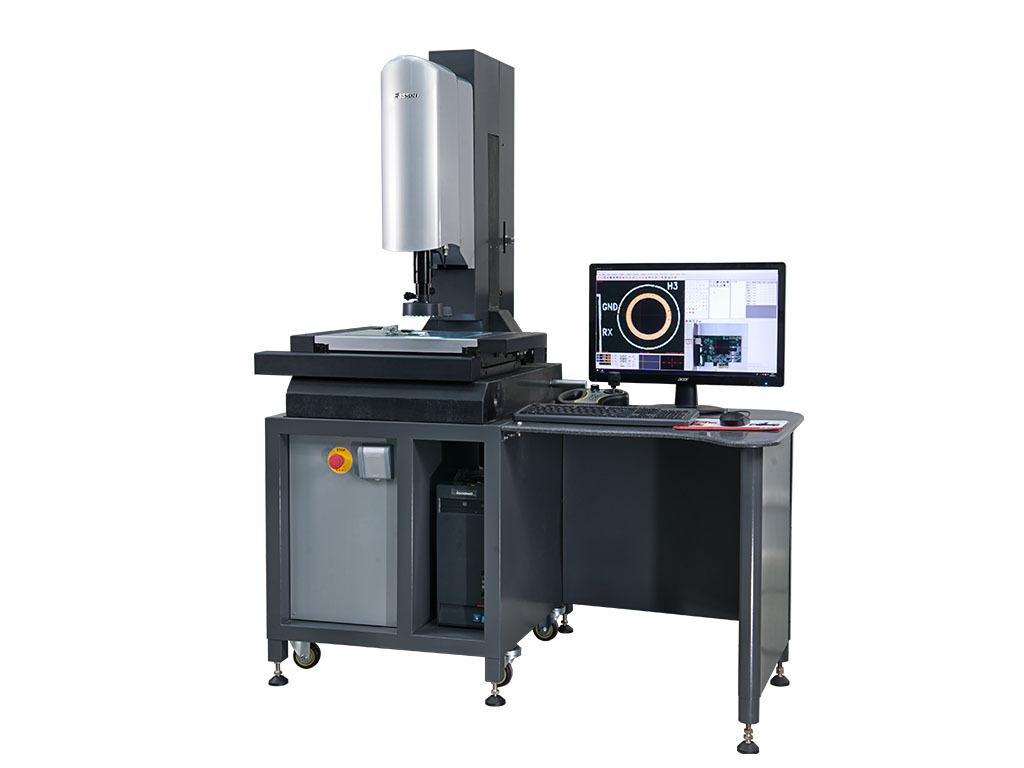

The SP CNC Automatic Video Measuring Machine is engineered for batch measurement tasks, featuring a three-axis Easson AC servo motor system, which is widely acknowledged in the industry for its reliability. This system ensures that the machine performs high-speed and dependable measurements.
The features in the VMM network control system of AR- 3 are as follows:
- The Special processor (ASP) greatly decreases the quantity of electronic circuits and components required, enhancing the system's reliability.
- Single circuit board structure in order to greatly reduce the number of wiring to improve reliability.
- High speed and high precision fully closed-loop AC servo control system, which can provide positioning accuracy up to 1 μm, in order to minimize the possible factors affecting measurement repeatability.
- 21 orders of high precision geometric stereo spatial error compensation.

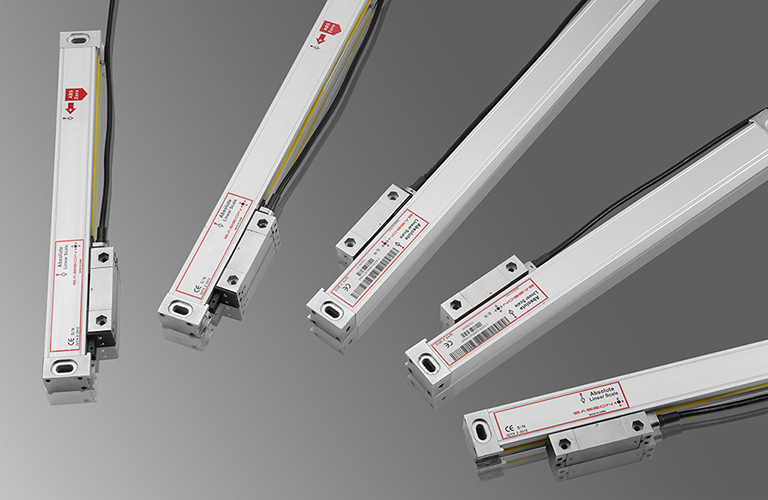

- X , Y , Z axis of the Absolute Linear Scale is independent researched and developed, with a resolution up to 0.01 μm.
- The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
- 3 axis precision linear guide, precision drive system and CNC control system.
Technical Specification
| Model Type |
SP-3020 |
SP-4030 |
| Measuring Travel(mm) |
300 x 200 x 200 |
400 x 300 x 250 |
| Dimension (mm) |
1200 x 720 x 1600 |
1250 x 900 x 1600 |
| Work Table Glass Size(mm) |
339 x 239 x 10 |
439 x 339 x 12 |
| Weight (kg) |
280 |
460 |
| Max Table Load(kg) |
30 |
30 |
| Measurement Accuracy (μm) |
1.5+L/200 |
| Repeatability |
2 μm |
| Magnification |
Optical Magnification 0.7-4.5X, Image Magnification 20-125X |
| Axis Display Resolution |
0.00001mm (0.01μm) |
| Lighting System |
Eight areas up light source with two laser positioning system |
| Operation |
Automatic control by mouse, joystick or keyboard |
| Lens |
Automatic Zoom, automatic focus optical coaxial lens |
| Vision System |
High resolution SONY CMOS global shutter camera |

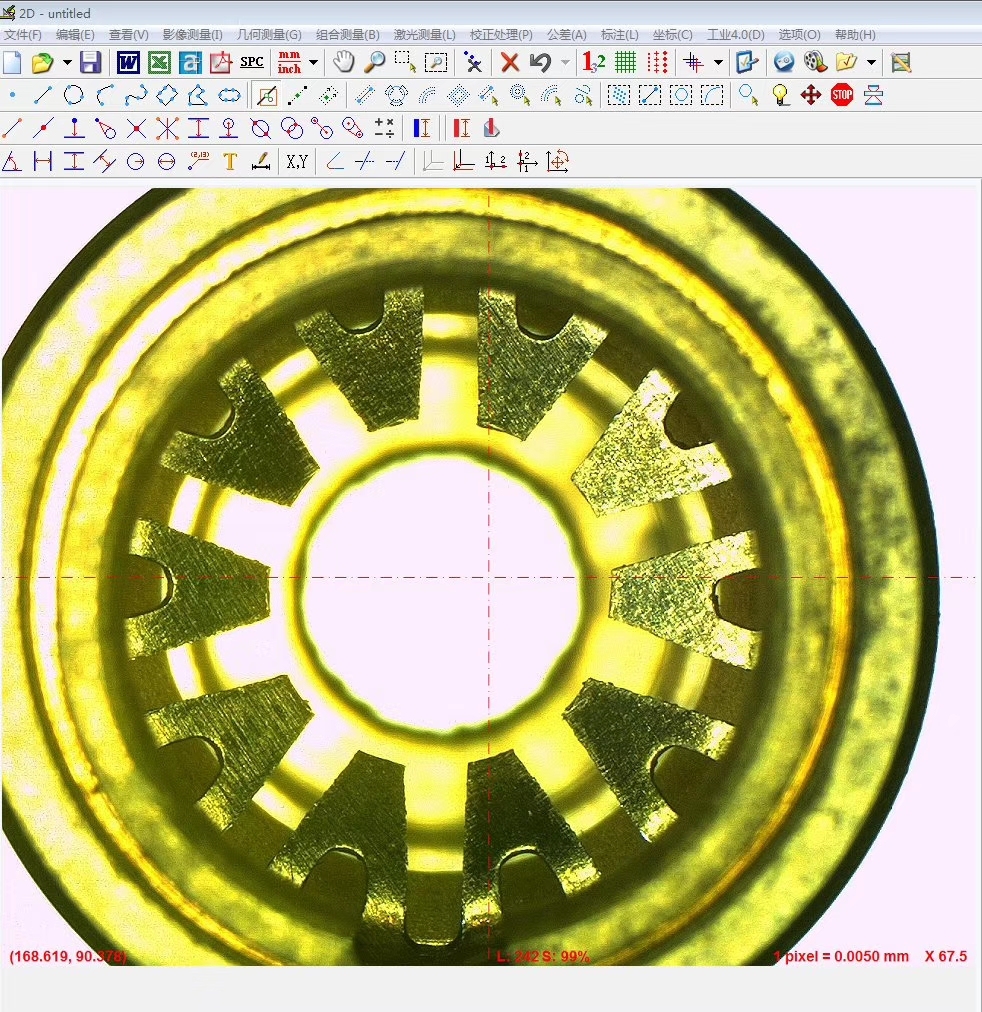

F3 high precision closed loop auto zoom lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing

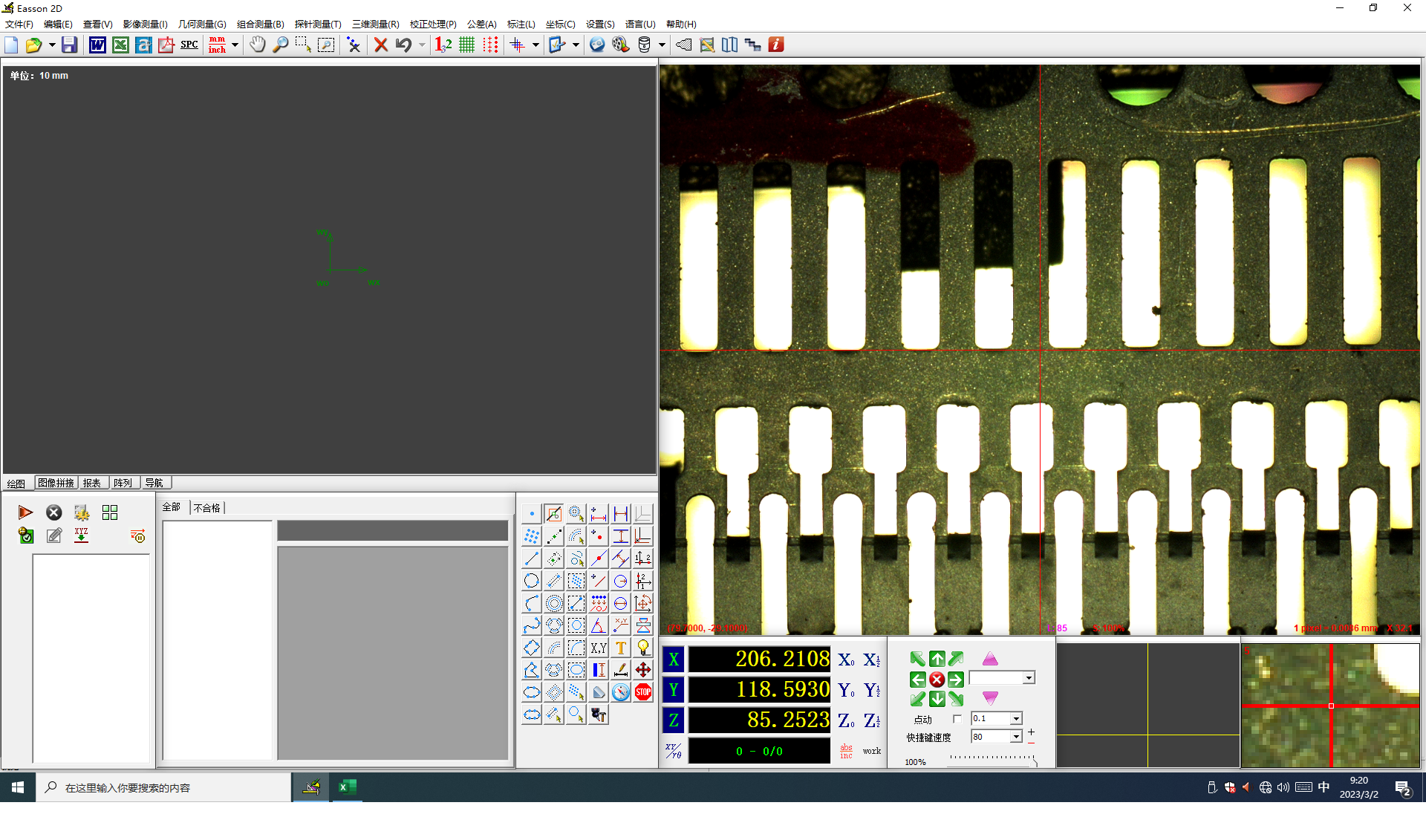

Full View Navigation Function
Equipped with a Full view navigation USB camera, this device captures an image of the workpiece and establishes the coordinates. This allows the operator to swiftly navigate to the area that needs measuring based on this full view capability.
21 Orders Volumetric Compensation
Error compensation is to artificially create a new original error to offset the original original error that is currently a problem, and try to make the two equal in size and opposite in direction, achieve the purpose of reducing processing errors and improving processing accuracy.
The Easson Vision Measurement Machine incorporates the AR series Network control System, which features 21 orders of volumetric compensation. This system is equipped with an ultra-high-speed linear encoder for reading and a built-in EAD (absolute code decoder), enabling the use of the AS-80 high precision absolute scale. This configuration ensures highly accurate and high-resolution measurements.
Probe Measurement
Vision measuring machines are compatible with the UK Renishaw high precision touch probe, facilitating the measurements described below:
1. Height measurement: use probe to touch a standard plane and many other measuring planes, program will automatically get the height difference between measuring planes and the standard plane.
2. Plane measurement: touch at least three points in the measuring plane, right mouse click to finish, then you can get this plane's inclination and flatness.
3. Sphere measurement: use probe to evenly touch three points on the bigger diameter part of measuring sphere, then touch the top of the measuring
4. Cylinder measurement: touch three points around the cylinder at the same height, then touch another three points at another height, finally you can get the cylinder's radius and inclination.
Granite Structure for Enhanced StabilityThe use of granite as the core material of the machine's structure provides excellent thermal stability, which is crucial for maintaining accuracy over extended periods. This ensures that the measurements are not affected by temperature changes, offering a high level of consistency in every inspection.CNC Control for Precision AutomationEquipped with CNC control, the machine automates the measurement process, eliminating human error and improving consistency. With easy-to-use software and automated operation, it reduces inspection time, which enhances overall production efficiency.Video & Vision Measuring Machine IntegrationThe system utilizes a video measuring machine combined with a vision measuring machine to perform non-contact optical inspections. This technology allows for highly accurate measurements of intricate components without risk of damage, making it ideal for delicate or small parts.High-Resolution Linear Encoder SystemThe integration of linear encoders ensures high-resolution, repeatable measurements, improving the accuracy of the inspection. This is particularly beneficial for industries where precision is crucial, such as automotive, aerospace, and electronics.
