| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | VS10 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Plywood Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1500 PCS per Month |
| Name: | Dro For Bridgeport Mill Lathe Machine | Meas. Standard: | 0.02 Mm |
|---|---|---|---|
| Meas. Length: | 50-1200 Mm | Display Resolution: | 0.005 Mm |
| Warranty: | 13 Months | Power Supply: | DC 5V |
| Output Signal: | TTL ( A Qual B ) | Keyword: | Dro Linear Scale |
| High Light: |
1um Linear Scale Encoder,0.005mm Linear Scale Encoder,0.005mm Digital Linear Measuring Scale |
||

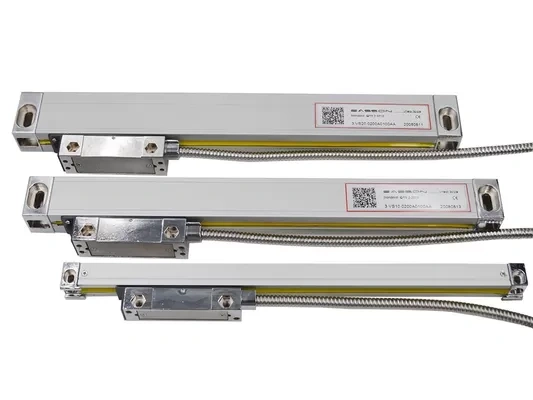

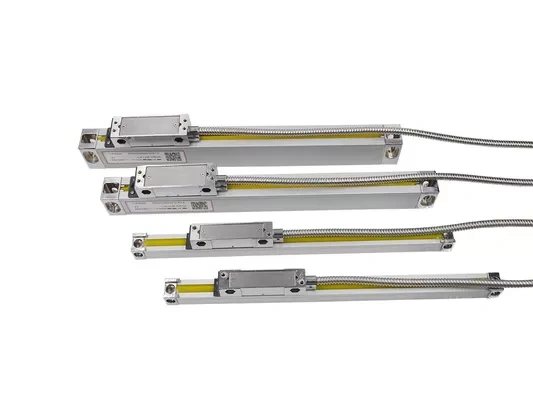

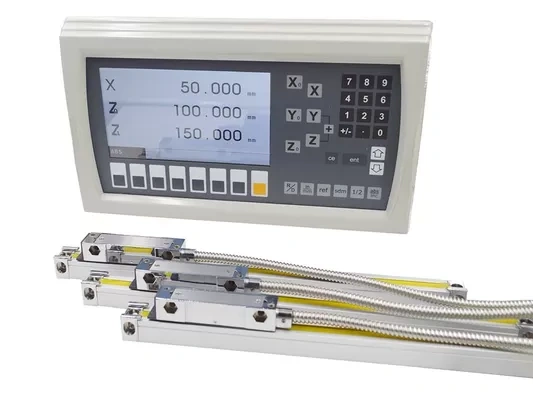

High Precision Cnc LCD Display 0.005mm 1um Linear Scale Encoder
Product Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Advanced Optical Measuring System
The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, specially in long dimension scale like the large Lathe machine. The Accuracy is better than the GS20 series long scale.
Aging Test
Easson Optical Linear Scale's reader head need to power on for 72 hours aging test before assemble,
make sure all linear scale's quality is reliable.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report in QR code
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
