| Name: | Linear Encoder Sensor | Keyword: | Linear Glass Scales |
|---|---|---|---|
| Usage: | Milling, Lathe, Grinder, Boring Machine | Languages: | 20 Choices |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | LCD Screen: | 7 Inch Color Screen |
| Power Supply: | 110V - 220V | Output Signal: | TTL |
Packaging & Delivery
Single package size: 40x26x18 cm
Package Type: Carton box
Net weight: 2.5 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. time ( days ) | 3 | 5 | 7 | 15 |
The ES-8C series is CE certified and is manufactured according to the TQM(Total Quality Management System). The
electronic boards comply with the RoHS standards.
Technical Specification
| Model name | ES-8C | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V ~ 220 V | ||
| Net Weight | 2.5 KGS | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Optical Linear Encoder | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment

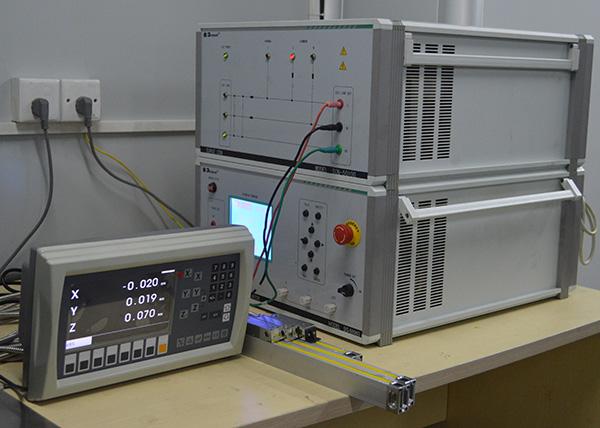

We have a complete set of EMC test esd immunity tester to test the DRO and linear Scale's EMC.
Products Description
Digital Readout System
Basic parameter in the ES-8C is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
ES-8C with BlueSync function is a new digital display technology in early 2019 year, BlueSync communication protocal was developed by Easson to setup the communication link between the DRO and your mobile device. Through the BlueSync function in our digital readout system, you can view your electronic working drawing in your mobile device and have it synchronise with your machine movement and tool position. The purpose of blueSync is to make your machining much more easier, fun and enjoyable.
Different from others digital display manufacturers using switching power supply layout, Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC. The switching power supply are not as good as linear power transformer supply.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
