| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | GS10 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 PCS per Month |
| Type: | GS10 | Brand Name: | Easson |
|---|---|---|---|
| Resolution: | 0.005mm | Length: | 50-1000mm |
| Power Supply: | DC 5V | Output Signal: | TTL |
| Name: | Digital Readout For Lathe | Keyword: | Digital Readout Suppliers |
| High Light: |
Lathe Linear Scale Encoder,1000mm Linear Scale Encoder,DC 5V Glass Scale Encoder |
||

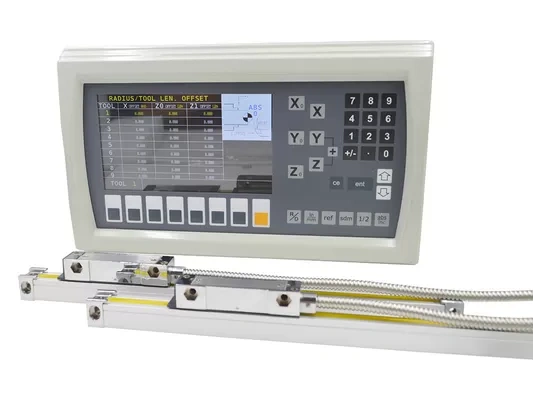

Length Measurement Laser Glass Optical Linear Scale Encoder
Product View
| GS10 | GS11 | GS12 | GS13 | GS20 | GS21 | GS22 | GS23 | GS30 | GS31 | GS32 | GS33 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||||||
| Slide Carrier System | Vertical five bearings supporting system | 45° five bearings supporting system | Vertical five bearings supporting system | ||||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm per length Spec. | Not available | Every 50mm per length Spec. | |||||||||
| 1300-3000mm | Not available | Every 100mm per length Spec. | Every 50mm per length Spec. up to 500mm | ||||||||||
| Accuracy | 100-450mm | ±8μm | ±5μm | ±8μm | ±5μm | -- | ±8μm | ±5μm | ±8μm | ±5μm | |||
| 500-800mm | ±10μm | ±8μm | ±10μm | ±8μm | -- | -- | |||||||
| 1050-2000mm | ±15μm | ±12μm | ±15μm | ±12μm | -- | -- | |||||||
| 1300-3000mm | -- | ±25μm | -- | ||||||||||
| Repeatability | 2μm (0.002mm) | ||||||||||||
| Hystersis | 3μm (0.003mm) | ||||||||||||
| Protection | IP 53 | ||||||||||||
| Power supply | DC 5V ± 5% | ||||||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Drawing
GS10 / GS11 / GS12 / GS13 Series
GS30 / GS31 / GS32 / GS33 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Advanced Optical Measuring System
The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Double Seals Design
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
All linear glass scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report
Each optical linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
Usage Scenarios
Precision CNC Machining
In a high-tech manufacturing facility, this laser measurement tool is integrated into CNC milling machines to provide real-time position feedback. The optical linear encoder allows for ultra-precise motion control, reducing errors and improving part quality. By replacing older mechanical measurement systems with this advanced laser measuring device, the facility increases throughput by 15% while reducing scrap rates.
Semiconductor Wafer Production
A semiconductor fabrication plant uses this laser measuring tool to ensure extreme accuracy when positioning silicon wafers during the photolithography process. The encoder's 5μm resolution enables nanometer-level precision in wafer alignment, critical for creating microscopic circuit patterns. This digital laser tape measure technology contributes to higher chip yields and enables the production of more advanced processor designs.
Automated Assembly Lines
An automotive parts supplier incorporates this laser measurement tool into their robotic assembly systems. The optical linear encoder provides closed-loop feedback on robotic arm positions, allowing for precise placement of components. By upgrading to this laser measuring device, assembly accuracy improves by 40%, reducing rework and accelerating production speeds.
Quality Control Inspection
A precision optics manufacturer uses this laser measure as part of their automated quality control system. The linear scale encoder is integrated into a measuring stage that rapidly scans finished lenses, providing highly accurate dimensional data. This laser measurement tool allows 100% inspection of products, catching minute defects and ensuring only top quality lenses are shipped to customers.
Scientific Research Instrumentation
In a physics research lab, this laser measuring device is a key component in an experimental apparatus studying quantum effects. The encoder's high resolution and repeatability allow researchers to precisely control and measure the positioning of samples and sensors at the microscopic scale. The digital laser tape measure capabilities enable new types of experiments that were previously impossible due to measurement limitations.
Product Advantages
1.Unparalleled Precision Measurement
This advanced laser measuring tool delivers exceptional accuracy with its 20μm grating period and resolution down to 1μm. As a high-precision laser measurement tool, it ensures your critical linear motion applications achieve the tightest tolerances and most reliable results.
2.Versatile Measurement Range
With measurement travel from 50mm up to 3000mm, this versatile laser measuring device adapts to a wide range of industrial applications. Whether you need short or long-range measurements, this digital laser tape measure alternative provides the flexibility to tackle diverse projects with a single solution.
3.Robust Design for Industrial Environments
Engineered for demanding industrial settings, this durable laser measure features IP53 protection and innovative double seal design. The rugged construction and superior oil resistance allow it to maintain accuracy and reliability even in harsh manufacturing environments exposed to dust, debris and fluids.
4.Advanced Optical Technology
Leveraging cutting-edge optical technology, this laser measuring tool utilizes a transmissive infrared system with 880mm wavelength. The advanced five-bearing slide carrier system ensures smooth, precise motion for highly accurate and repeatable measurements across the full range of travel.
5.100% Quality Assurance
Every laser measurement tool undergoes rigorous quality control, with 100% laser calibration using an in-house interferometer. The built-in QR code allows easy access to detailed accuracy reports, giving you complete confidence in the precision and reliability of your measurements for mission-critical applications.
About Us
Easson Measurement Technology Ltd. is a leading manufacturer of high-precision measurement and control systems. We specialize in developing advanced optical linear encoders and digital readout solutions for industrial applications. Our Length Measurement Laser Glass Optical Linear Scale Encoder combines innovative laser and glass scale technology to deliver superior accuracy and reliability. With features like 0.005mm resolution, measurement lengths up to 1000mm, and 100% laser calibration, our encoders meet the most demanding requirements for linear position measurement. Backed by our commitment to quality and continuous innovation, Easson provides measurement solutions you can trust to enhance the performance and productivity of your CNC machine tools, inspection equipment, and other precision systems. Partner with us to take your measurement capabilities to the next level.
Contact Easson today to upgrade your precision measurement capabilities with our Length Measurement Laser Glass Optical Linear Scale Encoder DC 5V. Let's achieve new levels of accuracy and efficiency in your manufacturing processes!
FAQ
Who are we?
We are Easson Measurement Technology Ltd., a leading manufacturer of high-precision linear encoders and measurement systems based in Zhuhai, China. With over 15 years of experience, we specialize in developing and producing advanced optical linear encoders and digital readout systems.
How can we guarantee quality?
We guarantee quality through several measures:
1) Using an advanced optical measuring system with a 5-bearing design.
2) Implementing 100% laser calibration for each linear scale.
3) Providing an accuracy report with QR code for each encoder.
4) Employing innovative materials and designs like double seals for durability.
5) Maintaining strict quality control processes certified by CE.
What can you buy from us?
You can purchase our high-precision Length Measurement Laser Glass Optical Linear Scale Encoder DC 5V, as well as other linear encoders, digital readout systems, and measurement devices. Our product range includes various models like GS10, GS20, GS30 series with different resolutions and measurement travels.
Why should you buy from us not from other suppliers?
You should choose us because we offer:
1) Superior accuracy and reliability with our 5-bearing design and 100% laser calibration.
2) Innovative features like double seals and QR-coded accuracy reports.
3) Customizable options with various resolutions and measurement travels.
4) CE certification and strict quality control.
5) Over 15 years of industry experience and expertise.
What services can we provide?
We provide comprehensive services including:
1) Custom product development to meet specific requirements.
2) Technical support and consultation for product selection and integration.
3) After-sales service and warranty support.
4) Quick delivery with a 3-day turnaround time.
5) Regular product updates and improvements based on customer feedback and market demands.
Do you offer bulk order discounts?
Yes, we offer attractive bulk order discounts for our linear encoders and measurement systems. Our minimum order quantity is just 1 piece, but we can provide significant cost savings for larger orders. Please contact our sales team for a customized quote based on your specific quantity requirements.
What is the typical delivery time for your products?
Our standard delivery time is 3 working days, which is among the fastest in the industry. We maintain a large inventory and efficient production processes to ensure quick turnaround. For urgent needs or large orders, we can also discuss expedited shipping options to meet your deadlines.
