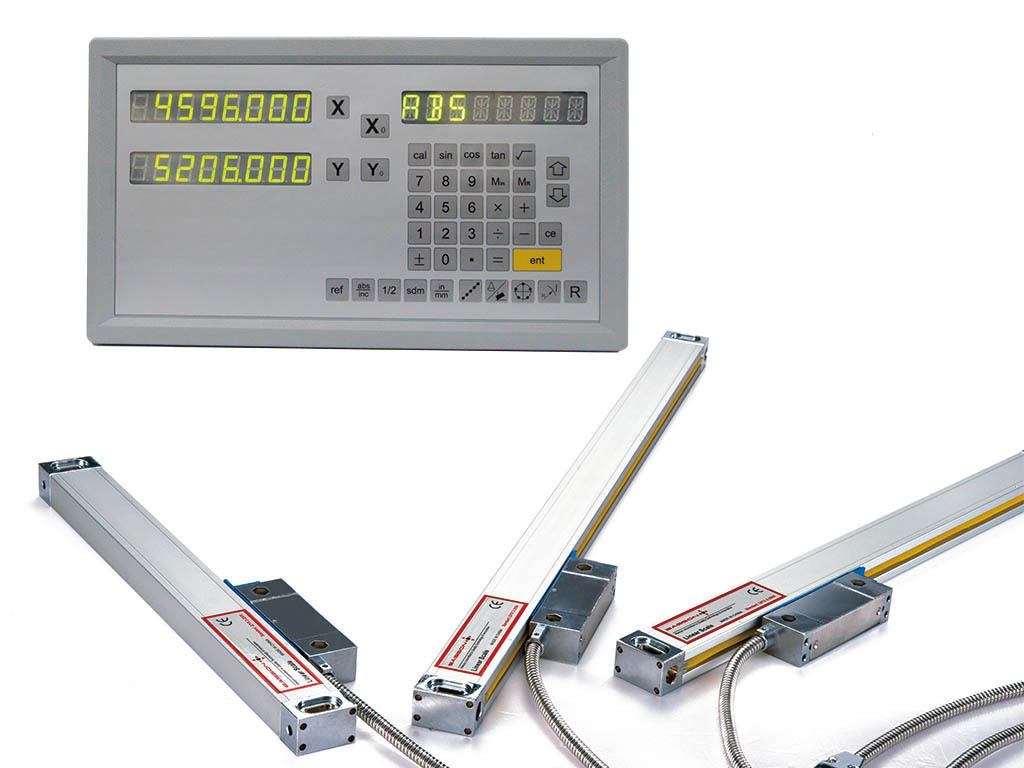

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: EA-926 2X
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Carton
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 1000 SETS per Months
  • Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine
  • Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine
  • Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine
  • Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine
Description

Product Introduction


The EA series is the all in one function readout system series. It is a practical, multifunctional optical glass scale digital display developed by Easson.

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 0

The design focus is ensure the all in one function and high quality, and try to use the most reasonable solution, reducing the price, facing the practical market.

The Autotex is used as the key membrance of EA series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.

Ultra Low Temperature Rise Transformer

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 1

 Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.

To reduce the total heat generation inside the DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.


EMC Testing equipment


 To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 2

 Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

  • IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
  • IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
  • IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )

 Technical Specification


Model Number EA-926
Axis number Two Axis
Axis Display 0.1μm, 0.5μm, 1μm, 5μm
Signal Input TTL
Voltage Range AC110 V - 220 V / 50Hz - 60Hz
Net Weight (kg) 2

Input frequency

2 MB Hz
Operation Keyboard Light touch buttons
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%

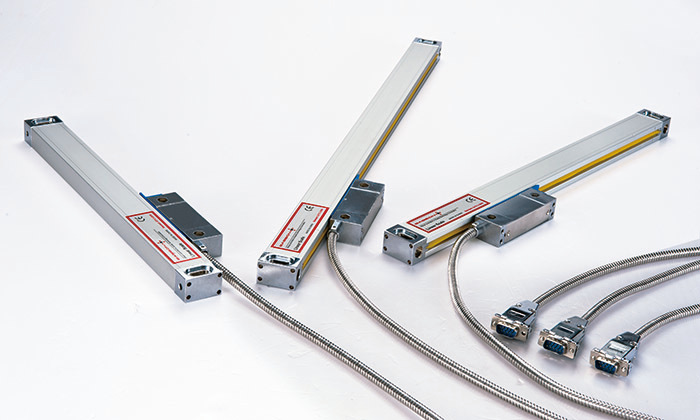

Inputs 2 linear encoders
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5


Basic parameter is included as below:

Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Zero
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
INCL Function
Axis Speed Display



Advanced functions for Milling machine

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 3

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 4

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 5

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine 6

FAQ


1. Who we are?

Easson is a China manufacturer in design and manufacturing precision measuring equipment. Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), Linear encoder glass scale.

2. How can we guarantee quality?

We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.

3. Did you accept OEM customized service?

Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
