| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | EA-926 2X |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 SETS per Months |
Product Introduction

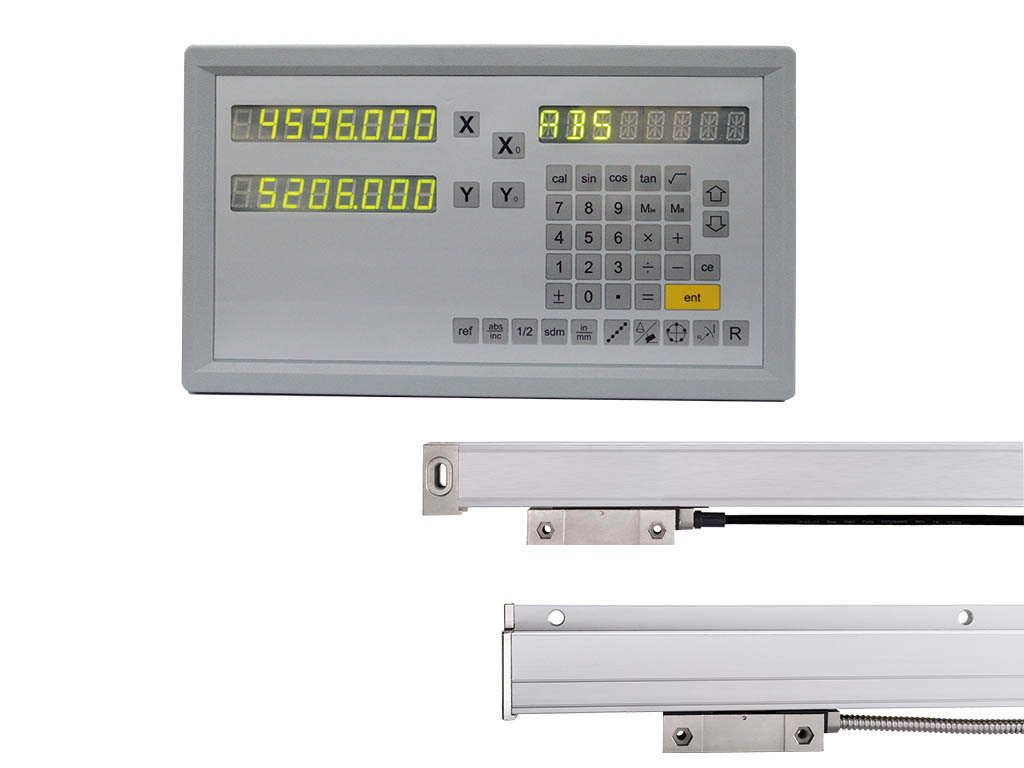

Linear encoder are used in various machines with Easson digital readout System together, which is often used to detect the coordinates of the tool and the workpiece, to observe and track the cutting error, in order to play a role in compensating the movement error.
Ultra Low Temperature Rise Transformer
DRO Features:
EMC Testing equipment
To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
Aging Test
.
Digital Readout System need to do the aging test, make sure all couting reading correctly, high temperature test and load test for 72 hours before QC procedure.
Easson Optical Linear Scale's reader head need to power on for 3 days aging test before assemble, make sure all linear scale's quality is reliable.
Technical Specification
| Model Number | EA-926 | ||
| Axis number | Two Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Voltage Range | AC110 V - 220 V / 50Hz - 60Hz | ||
| Net Weight (kg) | 2 | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 linear encoders | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
Easson Measurement Technology Ltd. was established since 1995, is a manufacturer in design and manufacturing precision measuring equipment. With the policy of “Always Committed to Quality, Technology & Innovation ” We offer the best reasonable price for the excellent products to our customers.
FAQ
1. Q: Did you accept OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
2. Q: What is your company mainly produce?
A: We are mainly produce Video Measuring Machines, Optical Profile Projector, Digital Readouts(Counter), Linear encoder glass scale. CNC linear scale.
3. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
4. Delivery time
A: Sea freight order normally is 30 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.
5. Payment term
A: Usually accept 100% T/T payment, for others payment terms, welcome to contact for discussion.
