| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | Easson |
| Certification: | CE |
| Model Number: | GS90 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 PCS per Month |

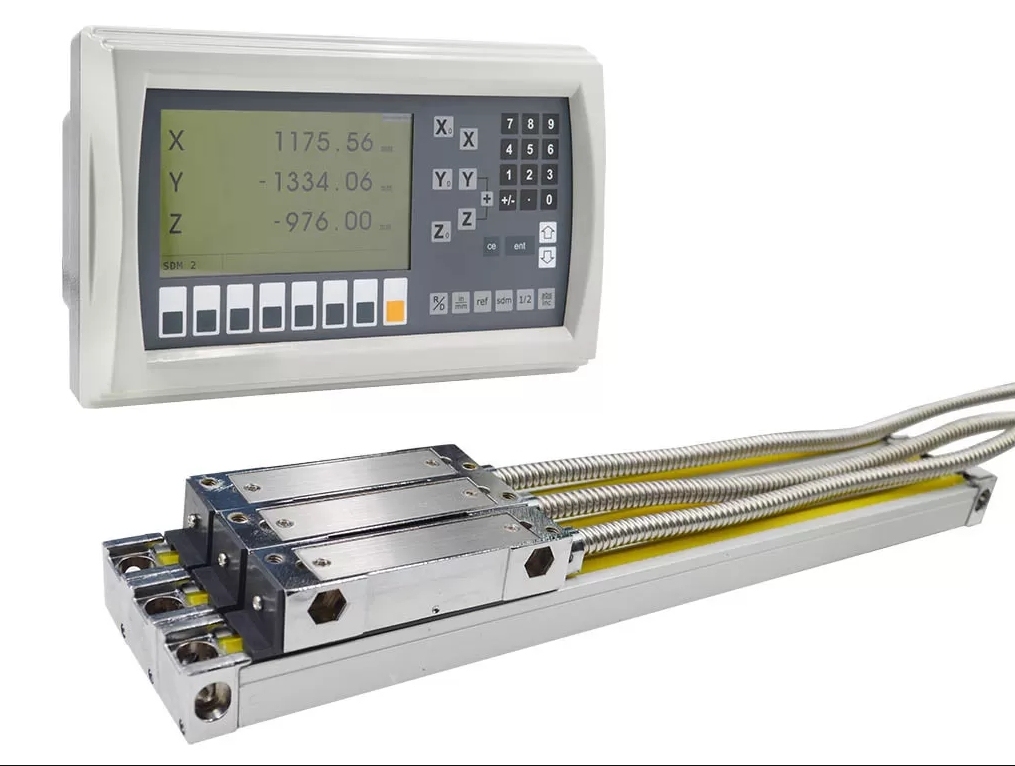

Easson Manufacturer Micro Linear Encoder Special For Micro Lathe & Milling Machine

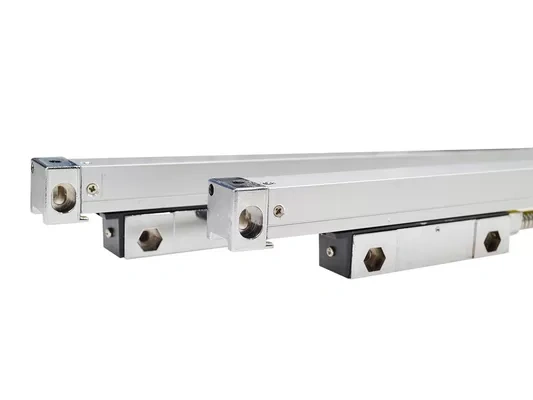

Product View
Advanced Optical Measuring System
The GS series scales of the slide carrier , use a five bearing design for optical grating linear transducer, reliable and low cost.

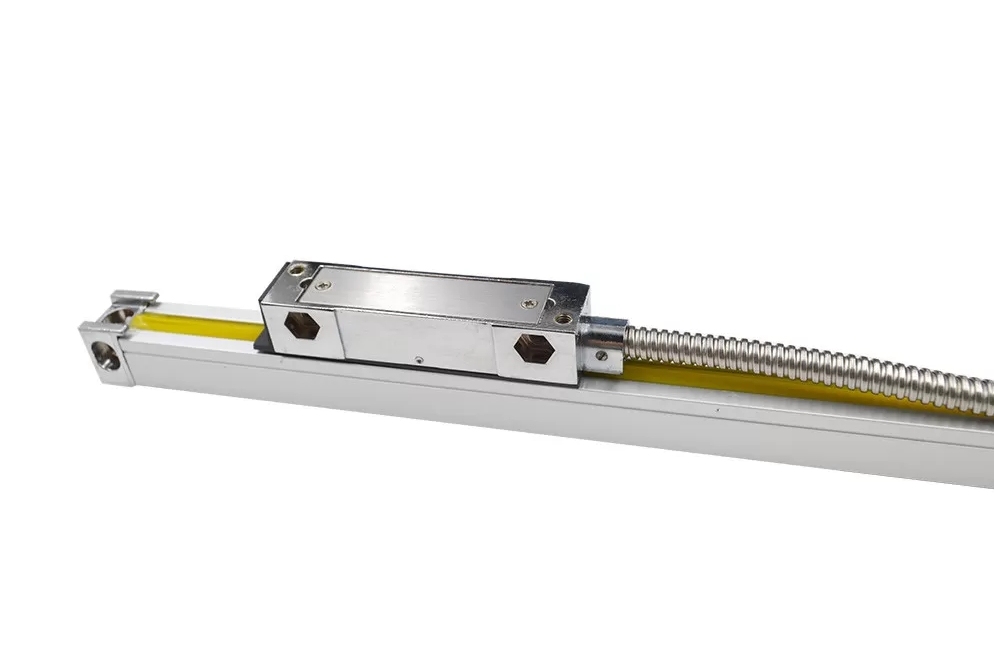

Sealing Lip
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
Specification
| GS90 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | |
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | |
| Slide Carrier System | Vertical five bearings supporting system | |
| Resolution | 5μm | |
| Measurement Travel | 50-500mm | Every 50mm per length Spec. up to 500mm |
| Accuracy | 50-500mm | ±10μm |
| Repeatability | 5μm (0.005mm) | |
| Hystersis | 5μm (0.005mm) | |
| Protection | IP 53 | |
| Power supply | DC 5V ± 5% | |
| Output Signal | TTL | |
Installation Diagram
Connector interface
DSUB 9PIN
| PIN | TTL | |
| Signal | Cable | |
| 1 | —— | —— |
| 2 | 0V | Orange |
| 3 | —— | —— |
| 4 | GND | GND |
| 5 | —— | —— |
| 6 | A | Yellow |
| 7 | 5V | Red |
| 8 | B | Green |
| 9 | R | Brown |

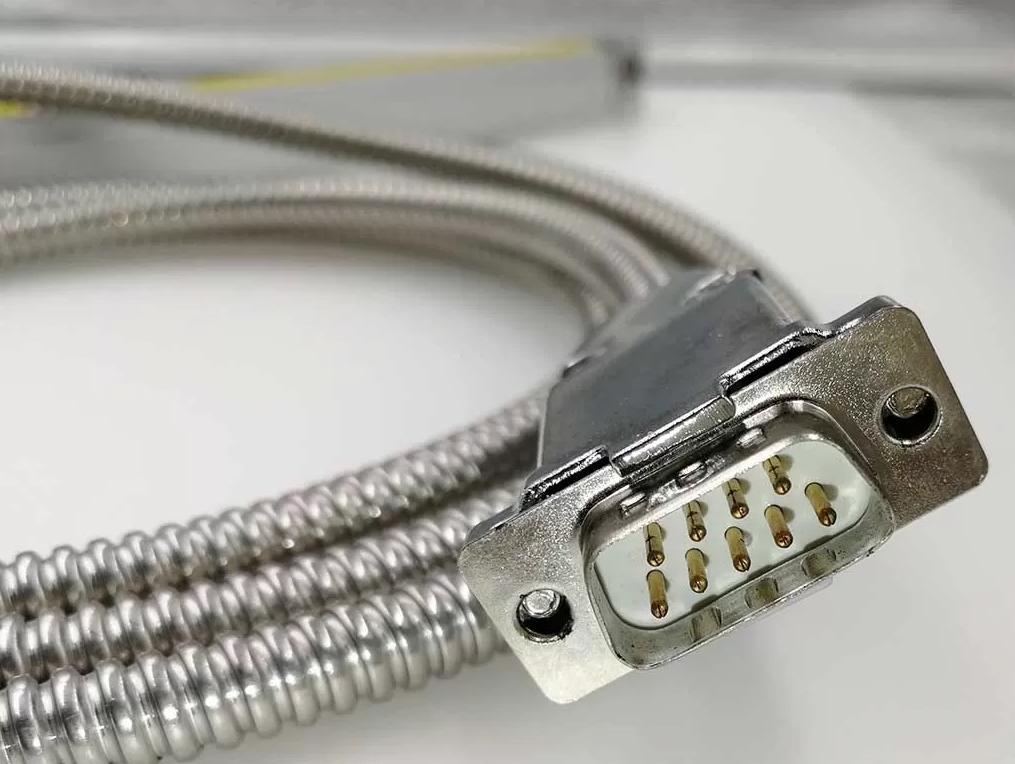

Linear encoder's connector using gold-plated pins to avoid poor contact, ensure it has long service life.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report
Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
