Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder

Name: Digital Display Meter Keyword: Dro For Lathe Machine
Power Supply: AC 110V - 220V Languages: 20 Choices
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm Gross Wieght: 3 Kgs
Output Signal: TTL
  • Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder
  • Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder
  • Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder
  • Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder

Description

Product View

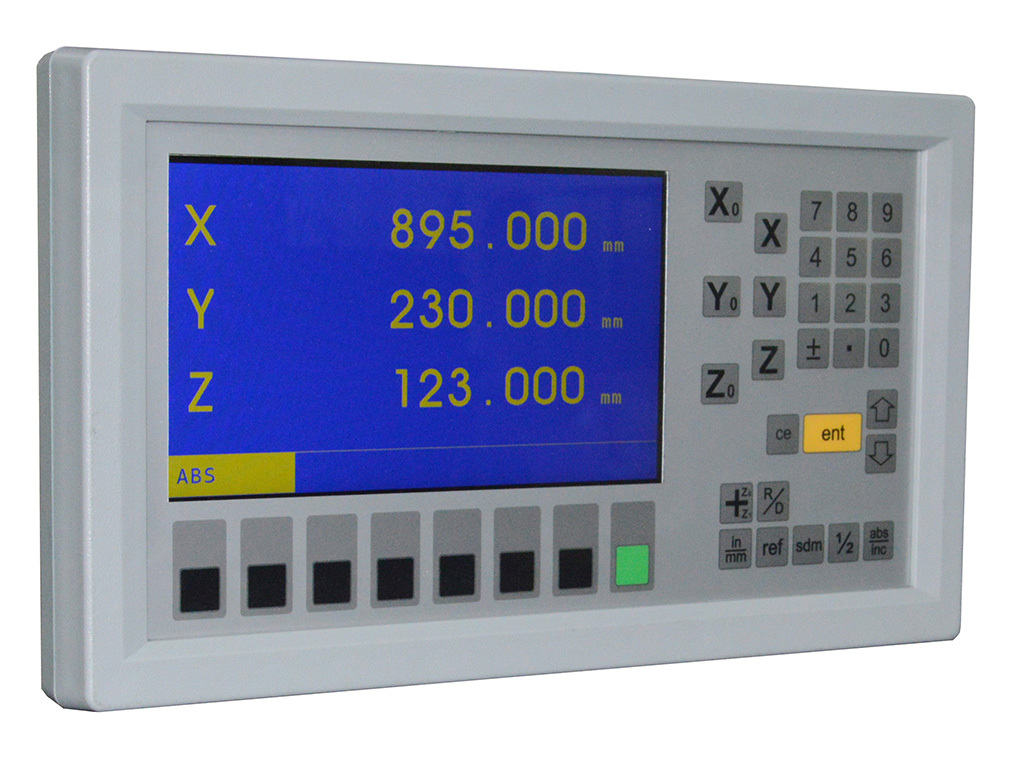

Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder 0

Easson LCD DRO has much more user friendly, the display message can be confirured to one of the following languages:

1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH  10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM

 When used in conjunction with linear scales, EA series readouts precisely indicate the value of movements and facilitate NC/CNC operations. This is an essential tool for anyone in need of a dependable, efficient, and cost-effective Digital Readout Device.



Technical Specification




Model number EA-926
Axis  3 Axis
Axis Display 0.1 μm, 0.5 μm, 1 μm, 5 μm
Signal Input TTL
Power Supply 110 V  / 220 V
Net Weight (KGS) 2

Maximum input

2 MB Hz
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%

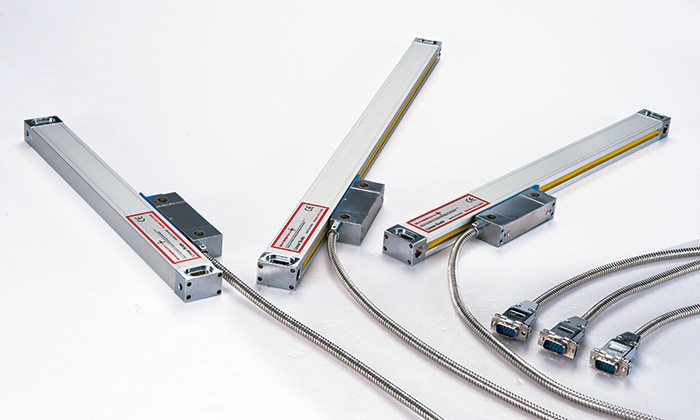

Inputs 3 Optical Glass Scales
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5



 EMC Testing equipment


 Every Easson Digital Readout product must meet EMC specifications, and we utilize a full set of EMC test ESD immunity testers to assess their electromagnetic compatibility.

Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder 1

Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

 IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )

IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )

IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )

 Basic parameters are included as below:

Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Build in Calculator
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
Axis Speed Display
Radius / Diameter
Z axis Summation

 DRO advanced Functions: Non-linear error compensation


ES8C Muilt function Grey 3 Axis Aluminum Shell LCD Digital Readouts Systems

Advanced functions for Milling machine
ES8C Muilt function Grey 3 Axis Aluminum Shell LCD Digital Readouts Systems



Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder 4

Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder 5

Package include:



1. 3 axis counter 1 set

2. DRO standard arm and bracket kit 1 set (Mill , Lathe, Grinder applications as one optional)

3. Power cable 1 PCS
4. manual book 1 PCS

Delivery:
For small quantity, we suggest ship the goods by Fedex or DHL etc.express, delivery time estimate should be 3-10 days.
For large quantity, we can ship vis seafreight and air shipment, seafreight delivery time should be 30 days, air freight should be 7-10 days

Warranty:
All the products we provide 13 months( from the date of shipment )

Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.

Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
