| Name: | Optical Inspection System | Keyword: | Optical Measurement |
|---|---|---|---|
| Meas. Accuracy: | (2+L/150) μm | Meas. Length: | 600 X 500 X 300 Mm |
| CCD: | High Resolution 1/2'' CMOS Camera | Linear Encoder: | 0.01 μm Absolute Scale |
| Operation: | Automatic | Repeatability: | ± 6 μm |
The Easson Oversize Travel Vision Measurement System is an advanced optical measuring machine engineered for high-precision measurements. Featuring a robust design and cutting-edge technology, this system ensures exceptional accuracy and reliability, making it a perfect choice for quality control in various industries.
Our system boasts an extensive travel range, high-resolution imaging, and intuitive software, providing users with a seamless measurement experience. The durable construction and user-friendly interface further enhance its efficiency and usability.
ApplicationsIdeal for automotive, aerospace, electronics, and other manufacturing sectors, the Easson Vision Measurement System can handle complex measurement tasks with ease, ensuring consistent and precise results.
Product Introduction
SPARTAN series Vision Measurement System is specifically engineered for large-scale, repetitive measurement tasks, offering rapid, efficient, and robust functionality. The three axes of the SP series utilize the Easson AC servo motor system, widely acknowledged in the industry for its reliability, ensuring fast and dependable measurements.
It is mainly a 2D measuring instrument, but it can also be used as a video measuring system for a 3D measuring, this device will enable the user to make contrast between real objects and designs, it can also make the purpose of measuring, inspecting, compensating and reverse engineering design all achieved in one machine.
Product Advantages
1.High Precision: Ensures accurate measurements for various applications.
2.Large Travel Range: Accommodates a wide range of measurement tasks.
3.User-Friendly Interface: Simplifies operation and increases efficiency.
4.Durable Construction: Built to withstand rigorous industrial environments.
5.Versatile Applications: Suitable for multiple industries including automotive, aerospace, and electronics.
Working Principle
Vision Measuring Machine (VMM) operates based on the principle of optical non-contact measurement, combining high-resolution cameras, precise optics, and advanced software to measure the dimensions of objects. Here's how it typically works:
Image Capture: The VMM uses a camera to capture images of the object placed on its worktable. Lighting techniques such as backlight, coaxial light, and surface light enhance the visibility of features and edges.
Optical System: The machine often includes a zoom lens system that allows for adjustment of magnification to capture different parts of the object at various scales. This flexibility is crucial for measuring objects with complex geometries or small features.
Measurement Software: The captured image is processed using measurement software. This software analyzes the images to detect edges, contours, and other features based on variations in light intensity and color.
Calibration: Calibration is vital to ensure accuracy. The machine uses known standards or scales to calibrate the measurement system, correcting for any optical distortions or errors.
Data Processing: Once features are detected, the software calculates dimensions such as distances, angles, radii, and more. Advanced algorithms can convert these 2D measurements into 3D models if the machine supports 3D measurement.
Output: The results can be output in various formats for further analysis or comparison against design parameters. Formats often include CAD files, PDFs, and spreadsheets.
Technical Specification
| Model Name | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Gross Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measuring Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Image Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.01 μm | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Video System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
a). The X / Y / Z three axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm
b). F3 high precision closed loop auto zoom lens.
c). The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
d). High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.
e). The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.

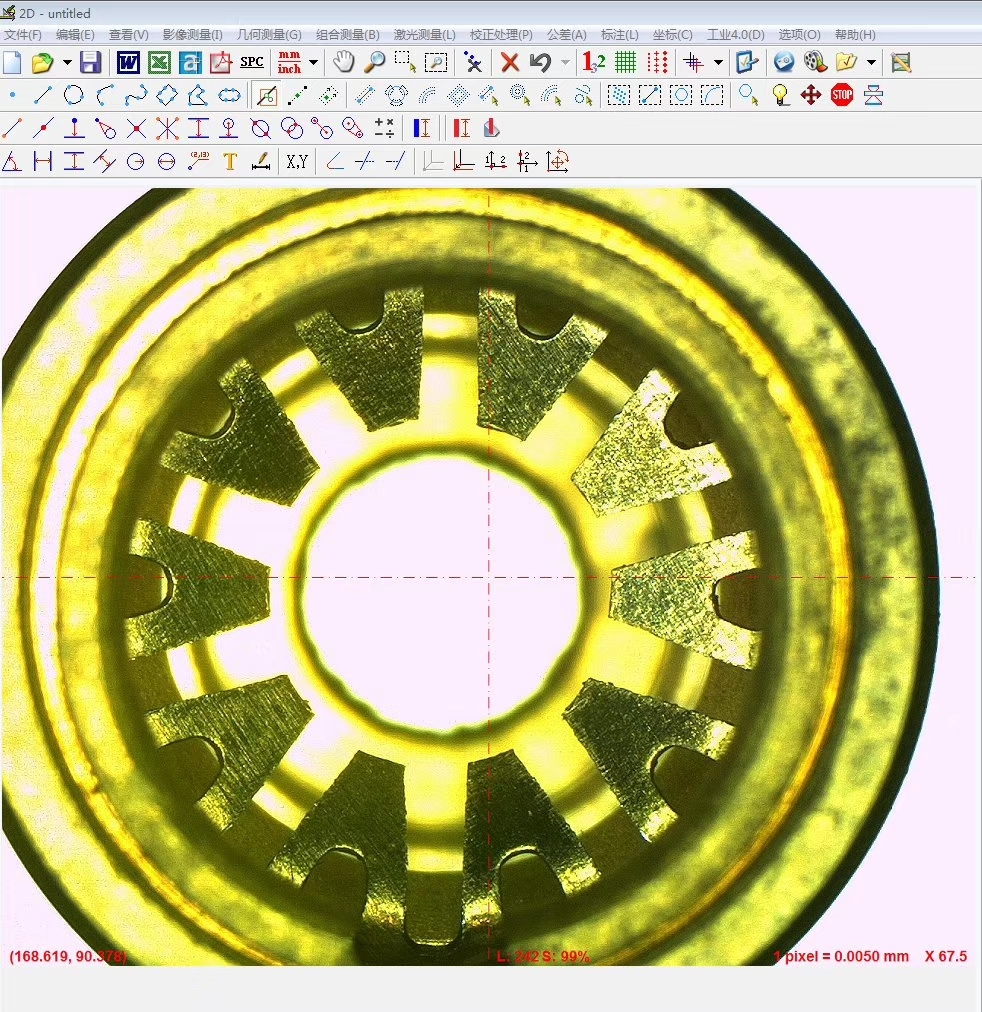

f). Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
Products
F3 high precision closed loop auto zoom coaxial lens
Combine with the high-precision, high-resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
The three Axis of SPARTAN series adopt the AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
21 Orders Volumetric Compensation
Easson Vision Measurement System used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear scale reading and built-in EAD (absolute scale decoder) which allow AR series system to use AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
At Easson, our journey began with a passion for precision and innovation in the field of metrology. Founded with a commitment to excellence, we have grown into a leading provider of high-quality vision measurement systems. Our state-of-the-art products are designed to meet the diverse needs of various industries, ensuring accuracy, reliability, and efficiency.
Our team of dedicated professionals works tirelessly to develop cutting-edge technology that empowers businesses to achieve their quality control goals. We believe in continuous improvement and strive to exceed our customers' expectations.
Easson's story is one of dedication to technological advancement and customer satisfaction. Over the years, we have invested in research and development, resulting in a range of products that set new standards in the industry. Our vision measurement systems are used by leading companies worldwide, a testament to our unwavering commitment to quality and innovation.
Our mission is to provide innovative and reliable measurement solutions that enhance our customers' productivity and product quality. We aim to be at the forefront of metrology technology, continuously pushing the boundaries of what is possible.
Choosing Easson means choosing a partner dedicated to your success. Our products are designed with the user in mind, offering intuitive interfaces, robust construction, and unmatched precision. We are committed to providing exceptional customer support and ensuring that our clients receive the best possible solutions for their measurement needs.
Explore our range of products and discover how Easson can help you achieve your quality control goals. Join us on our journey of innovation and excellence.
For more information, visit Easson About Us.
FAQ
1. Who we are?
Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.
2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning,
also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. How can the machine achieve the high accuracy measurement?
a) High resolution absolute linear encoder 0.01 microm
b) F3 high precision closed loop auto zoom lens with coaxial light.
c) High resolution SONY CMOS sensor of image processor CCD
d) Built in 21 orders volumetric compensation
4. Warranty:
All the products we provide 13 months( from the date of shipment )
5. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
6. Delivery:
Production time is 30 days, Seafreight shipment time 28 days.
7. Payment:
Default is 100% T/Tpayment before shipment, for other payment terms, welcome to contact us.
