| Name: | Video Measuring Machine | Keyword: | Video Measuring System |
|---|---|---|---|
| Meas.Accuracy: | (1.5+L/200) μm | Meas. Travel: | 300 X 200 X 200 Mm |
| CCD: | High Resolution 1/2'' CMOS CCD | Display Resolution: | 0.01μm Absolute Scale |
| Operation Model: | Automatic | Repeatability: | 0.002mm |

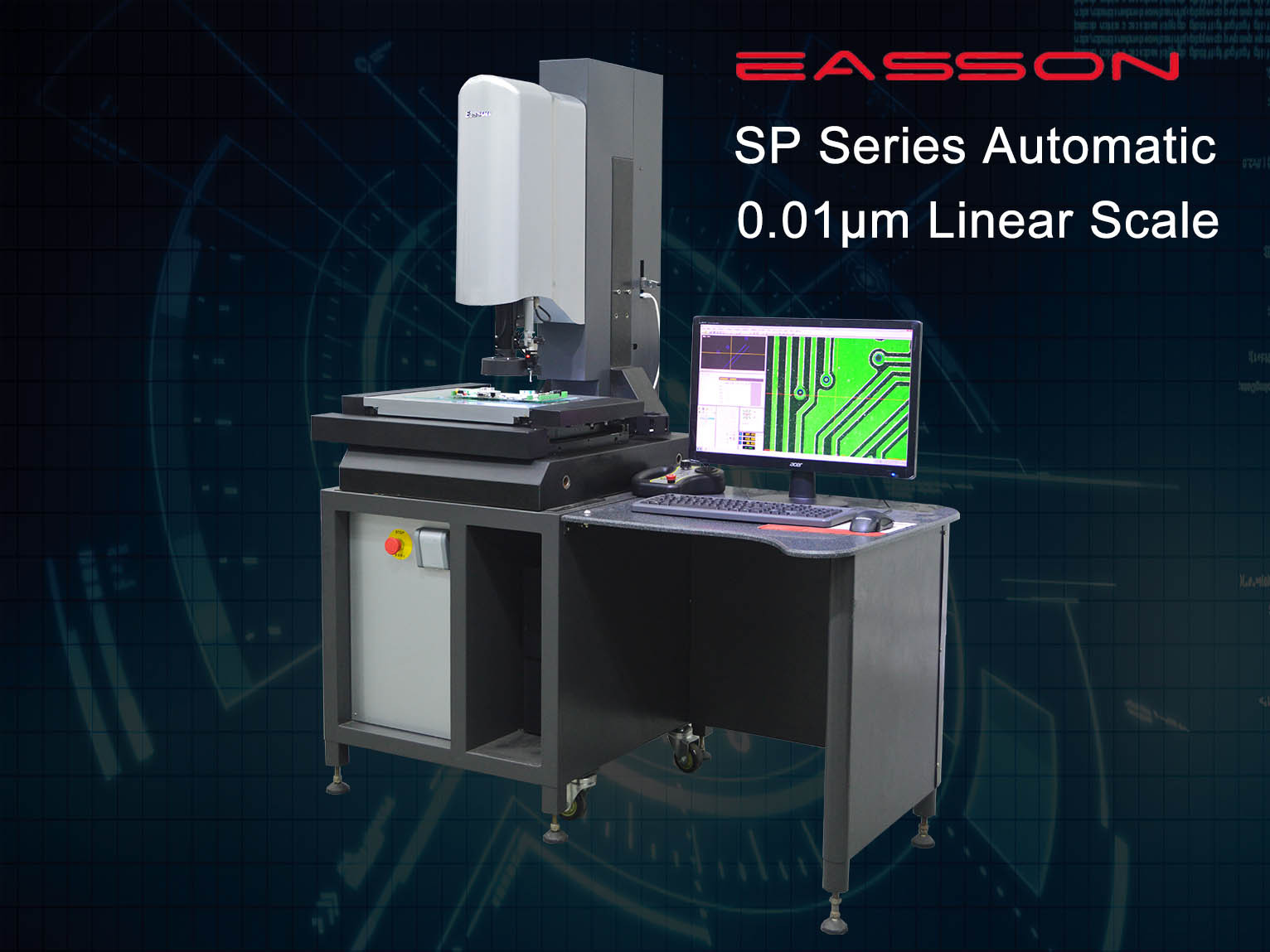

SP-3020 Automatic Vision Video Measuring Machines With 3 Axis 0.01μm Absolute Linear Scale
Device Applications
SPARTAN 3020 Video Measuring Machine is widely used in various precision electronics, wafer technology, cutting tools, plastics, springs, stamping parts, connectors, molds, military, two-dimensional copying, drawing, engineering development, metal plastics, PCB boards , Conductive rubber, powder metallurgy, screws, watch parts, mobile phones, pharmaceutical industry, optical fiber devices, automotive engineering, aerospace, universities, scientific research institutes and other fields have a wide range of applications.
Working Principle

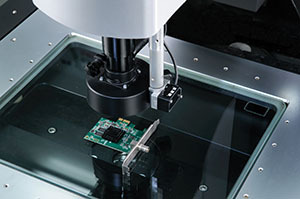

When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like circle, line, distance to the workpiece.
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300x200x200 | 400x300x250 | 600x500x300 |
| Overall Dimension (mm) | 1200x720x1600 | 1250x900x1600 | 1350x1000x1850 |
| Work Table Glass Size(mm) | 339x239x10 | 439x339x12 | 648x548x18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution 1/2'' CMOS global shutter camera | ||
Characterisitics

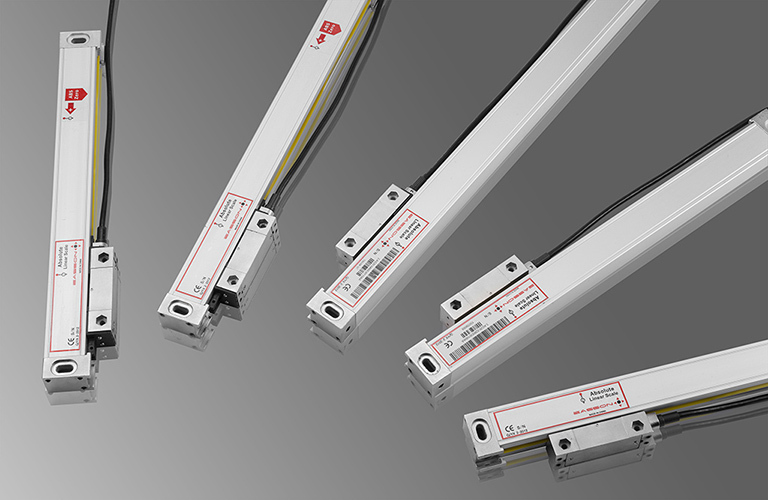

1. The X / Y / Z 3 axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm
2. F3 high precision closed loop auto zoom lens.
3. Special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.

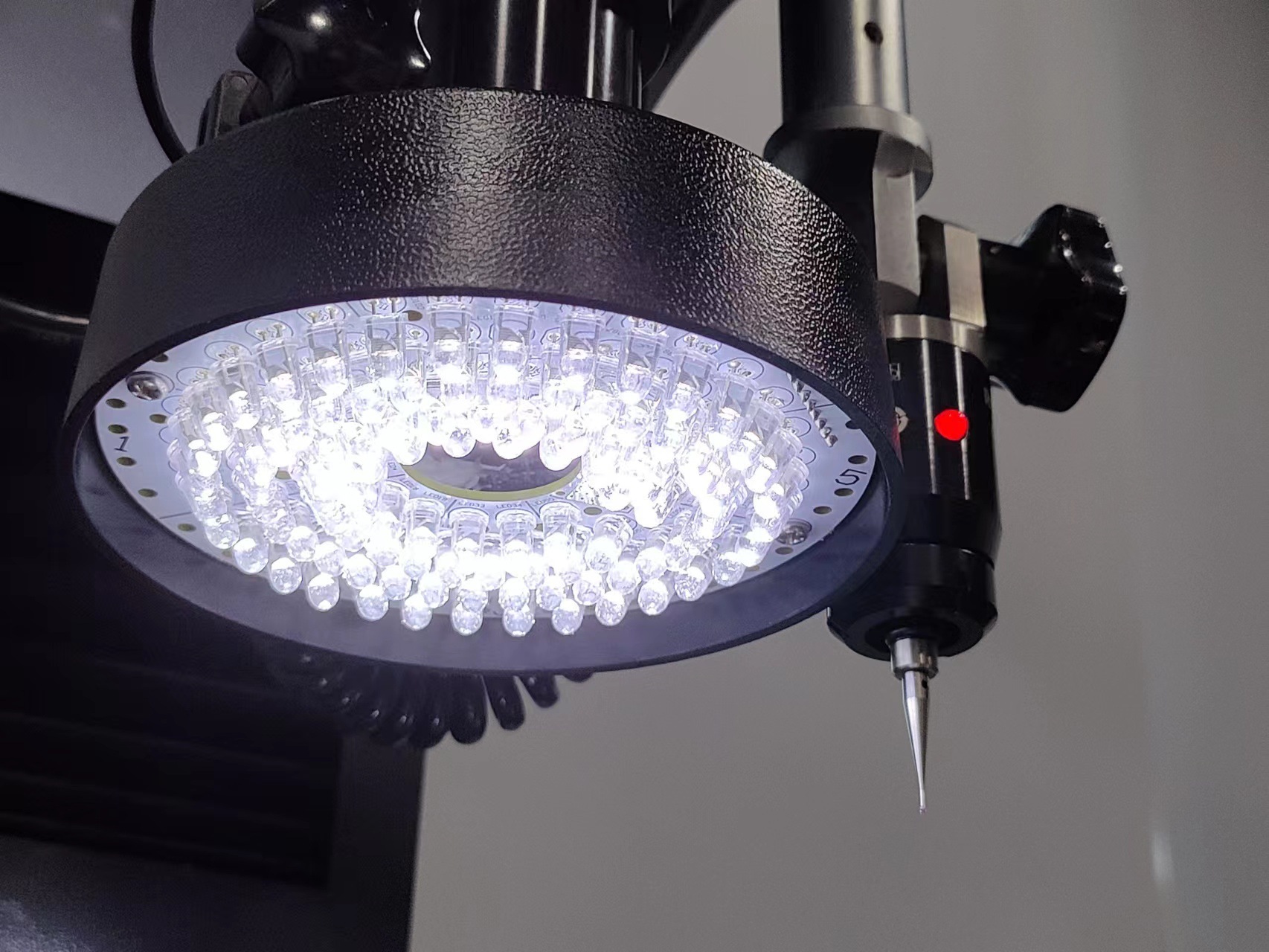

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.

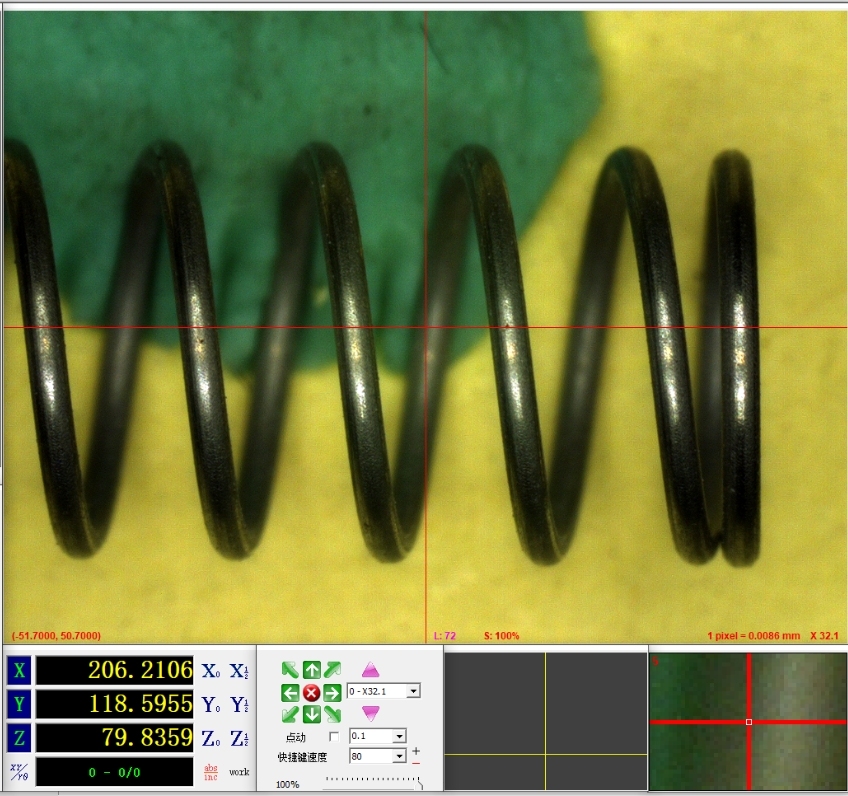

6. Multi-function measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
F3 high precision closed loop auto zoom lens
Combine with the high precision, high resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, include the coaxial lighting function, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use the AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
Easson three series of vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement. The 3D measurement of the probe can be mixed with the 2D measurement of the imaging system. The same coordinate system is used for 2D / 3D measurement in perfect and easy combination.
