| Name: | Visual Measurement Systems | Keyword: | Visual Measuring Machine |
|---|---|---|---|
| Usage: | Machinery, Optics, Testing Department | Operation Mode: | X Y Z Axis Manual |
| Display Resolution: | 0.5 μm | Accuracy: | (3+L/200)µm |
| Power Supply: | 220V 50Hz | Measuring Range: | 400 X 300 X 250mm |
Characterisitics
Technical Specification
| Model Type | 2515 | 3020 | 4030 |
| Measuring Range(mm) | 250 × 150 × 150 | 300 x 200 x 200 | 400 x 300 x 250 |
| Overall Dimension (mm) | 1000 × 600 × 1400 | 1200 x 720 x 1600 | 1200 x 720 x 1600 |
| Work Table Glass Size(mm) | 289 x 189 x 10 | 339 x 239 x 10 | 439 x 339 x12 |
| Gross Weight (kg) | 170 | 280 | 410 |
| Max Table Load(kg) | 20 | 20 | 20 |
| Measurement Accuracy (μm) | 3+L/200 | ||
| Repeatability(mm) | 0.002 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.5 μm | ||

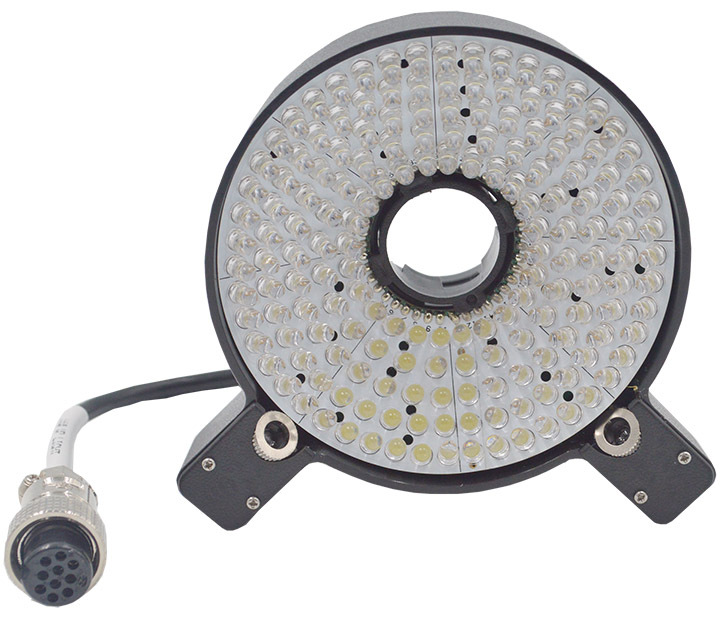

| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation | X Y Z Axis manual | ||
| Lens | Manual optical lens | ||

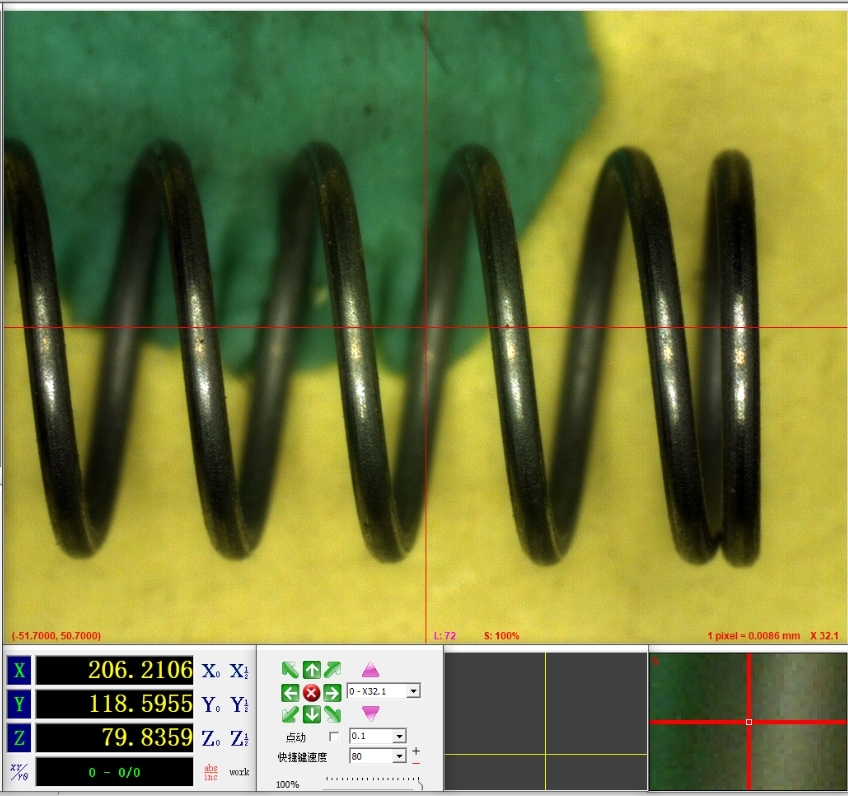

| Vision System | High-resolution 1/2'' CMOS global shutter camera | ||

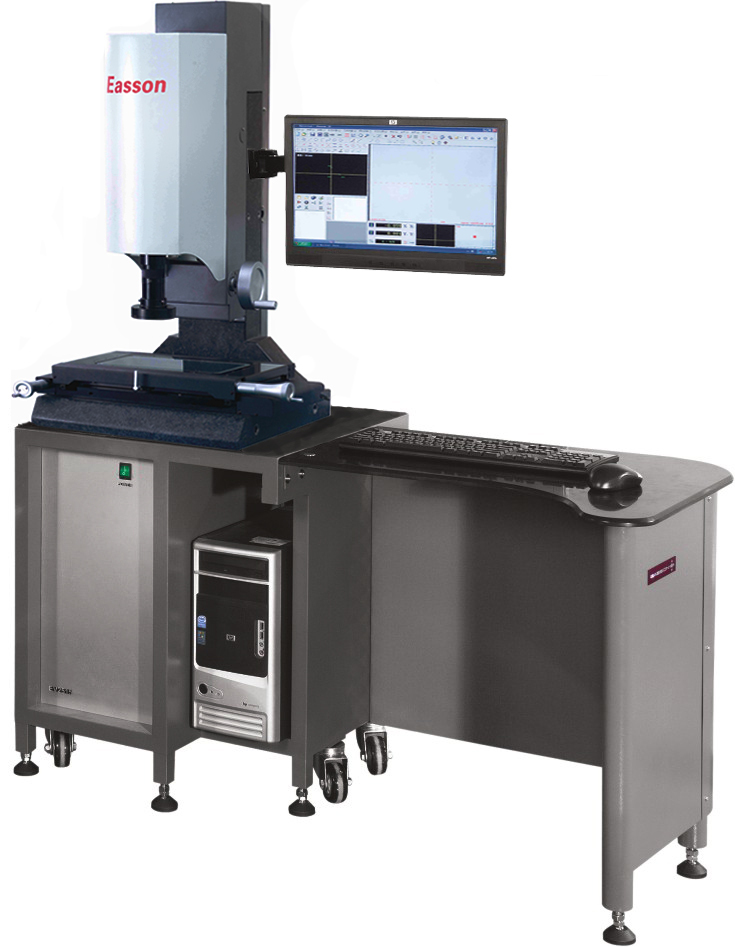

Easson VMM's key components, including the absolute grating linear encoder, lens, motion control system, and measurement software, are all independently developed and manufactured by our company. This allows us to provide our customers with top-quality products at the most competitive prices

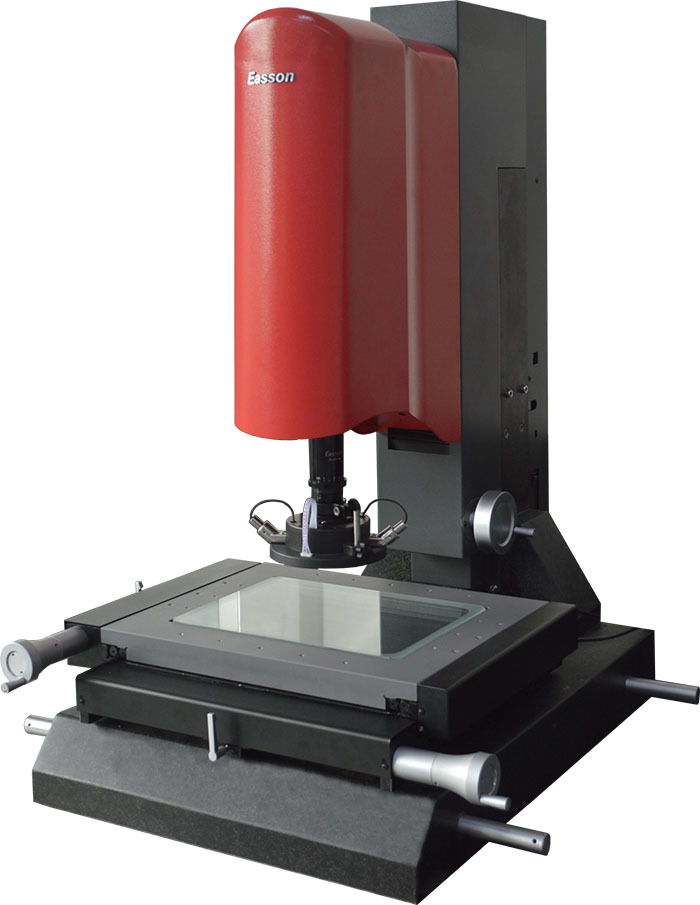

Video measurement machine uses high-precision marble as the base of the machine body, coupled with a high-precision table. The XYZ axis is equipped with an optical linear scale measurement system with a resolution of 0.5 micron. The XYZ axis has a measurement accuracy of (3 + L / 200) μm.
2D / 3D Multiple Measurement
Video measuring machines can cooperate with the UK Renishaw high precision touch probe for 2D / 3D multiple measurement. Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement etc.
